TASK 72-41-21-300-026 HPC Front Support Cone Stiffening Ring - Replace The Surface Protection, Repair-026 (VRS6160)

DMC:V2500-A0-72-41-2102-01A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-026 HPC Front Support Cone Stiffening Ring - Replace The Surface Protection, Repair-026 (VRS6160)

Effectivity

FIG/ITEM PART NO.

03-350

6A2850 Assembly A

03-350

6A4568 Assembly B

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Ring, stiffening support cone - HP Compressor

QTX or QRK

Nickel, cobalt steel

General

This Repair must only be done when the instruction to do so is given in 72-41-21 Inspection/Check.

Deleted

Deleted

Deleted

Deleted

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs

None

NOTE

  1. Equivalent materials or equipment can be used.

  2. More equipment and materials necessary to do this Repair are in the SPM TASKS given below:

TASK 70-38-21-380-501
TASK 70-12-02-120-501
TASK 70-09-00-400-501

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Abrasive blast equipmentLOCALAbrasive blast equipment
Paint spray equipmentLOCALPaint spray equipment
Conductivity meterLOCALConductivity meter
Paint brushLOCALPaint brush

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 01-019 FLUX REMOVING SOLUTIONK6835CoMat 01-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEARLOCALCoMat 07-024
CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT0AM53CoMat 07-036
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-110-143 Clean the Ring

      1. Chemically clean.

      1. Use chemical cleaning equipment.

    2. SUBTASK 72-41-21-230-167 Do a Crack Test

      1. Do a penetrant crack test.

      1. Use penetrant crack test equipment.

    3. SUBTASK 72-41-21-120-071-A00 Prepare the Ring to Apply the Surface Protection, Assembly A

    1. Refer to Figure.

      3. Dry abrasive blast areas to be repaired.

    4. Remove masking tape.

    4. SUBTASK 72-41-21-120-072-B00 Prepare the Ring to Apply the Surface Protection, Assembly B

    1. Refer to Figure.

      3. Dry abrasive blast areas to be repaired.

    4. Remove masking tape.

    5. SUBTASK 72-41-21-380-078-A00 Apply the Surface Protection, Assembly A

    1. Refer to Figure.

      2. Seal the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-008.

        Use CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT, with paint spray equipment.

    6. SUBTASK 72-41-21-380-104-B00 Apply the Surface Protection, Assembly B

    1. Refer to Figure.

      2. Seal the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-008.

        Use CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT, with paint spray equipment.

    7. SUBTASK 72-41-21-220-266-A00 Examine the Surface Protection, Assembly A

    1. Refer to Figure.

      2. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-220-001 (Type A coating).

      3. Do a conductivity check.

      1. Use a conductivity meter.

    8. SUBTASK 72-41-21-220-408-B00 Examine the Surface Protection, Assembly B

    1. Refer to Figure.

      2. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-220-001 (Type A coating).

      3. Do a conductivity check.

      1. Use a conductivity meter.

    9. SUBTASK 72-41-21-350-108 Identify the Part

      1. Re-identify the part.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-002.

        Mark the part number adjacent to the existing markings which are under the surface protection.

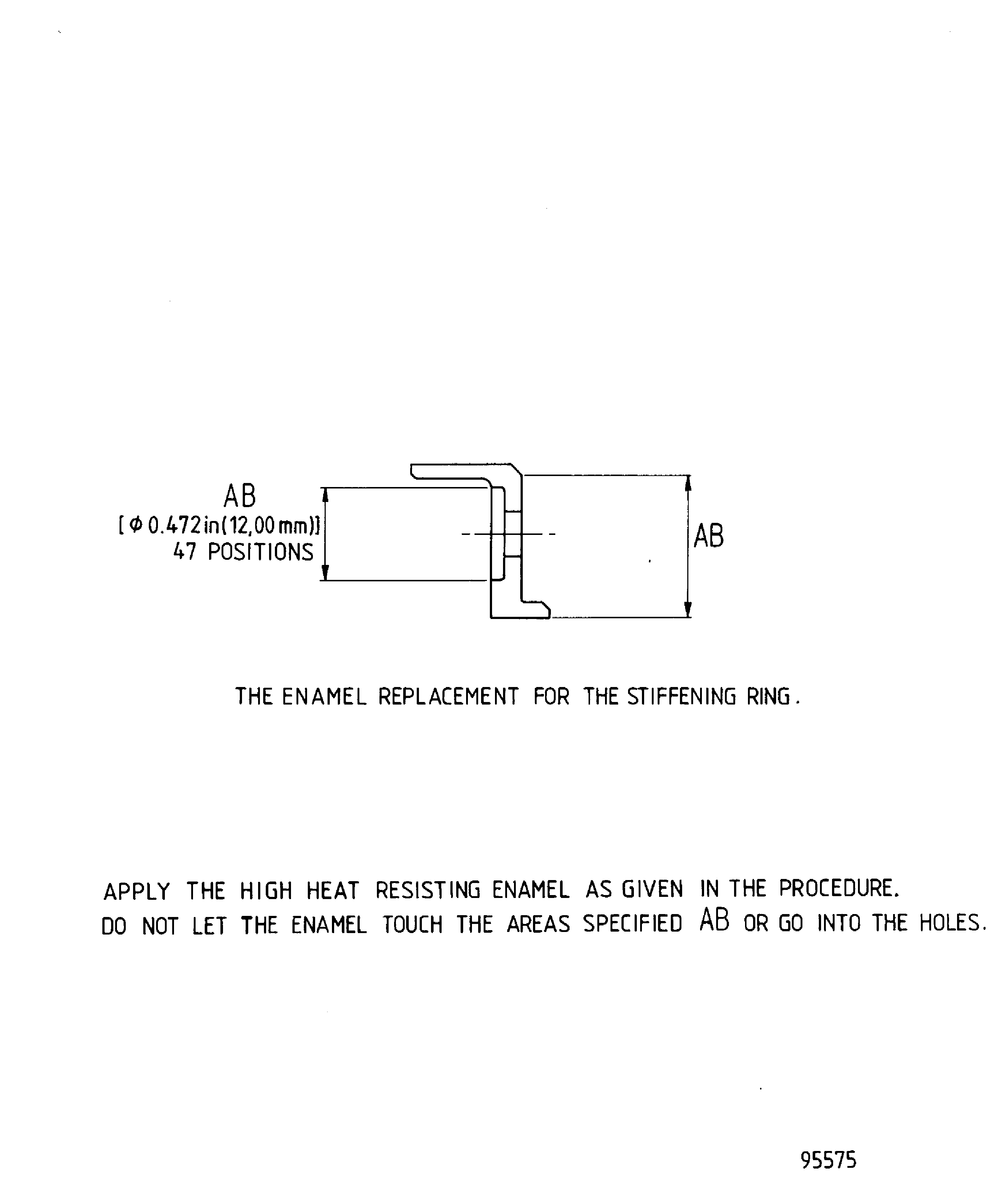

    10. Figure: Repair details and dimensions - Assy A

    Repair details and dimensions - Assy A

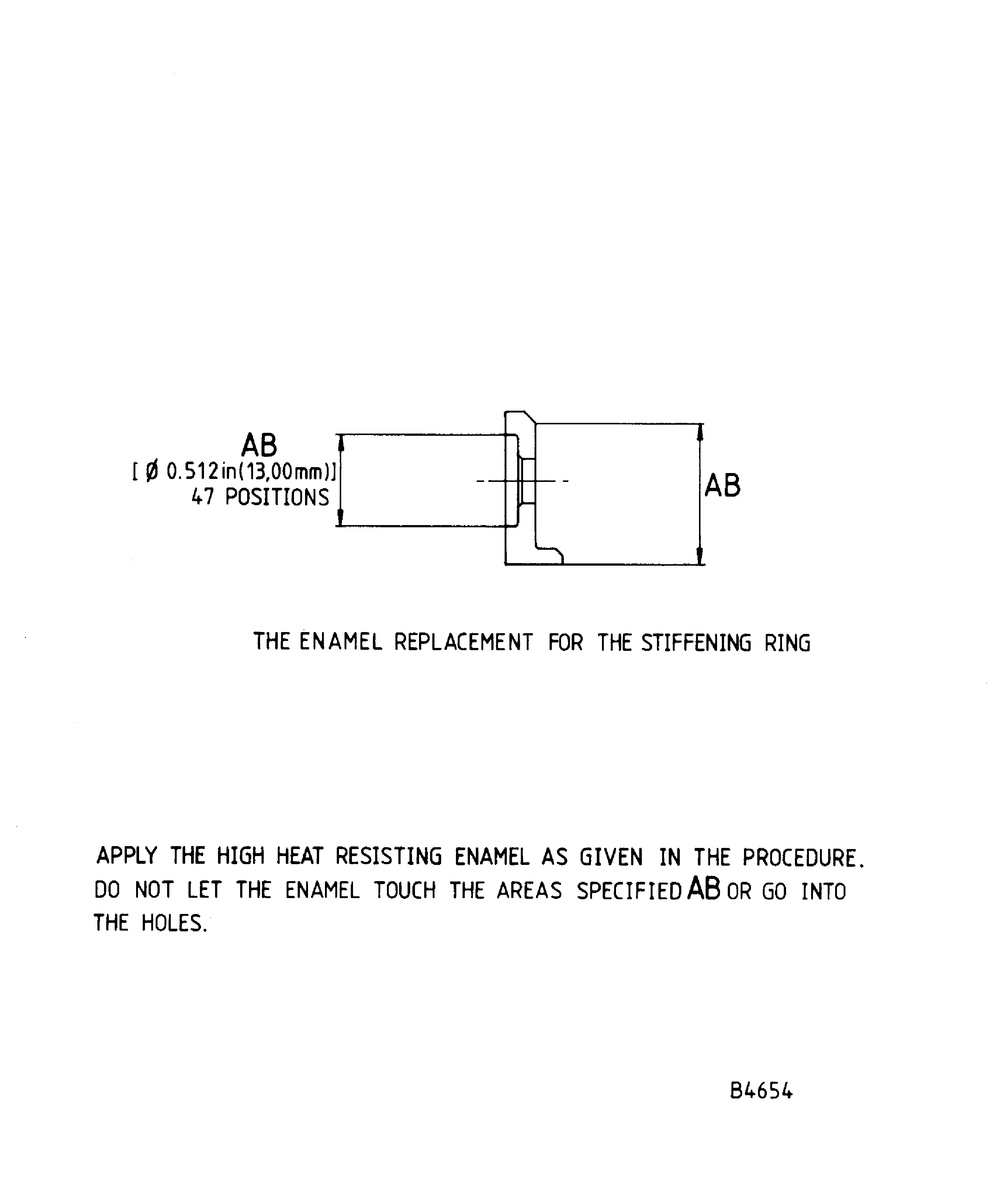

    Figure: Repair details and dimensions - Assy B
