Common Information
TASK 72-41-21-840-002 HPC Heatshields - HPC Stage 8 And Stage 11 Rear Inner Casing Heatshields With Corrosion Protection, Rework-002 - SBE 72-0034
General
The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.
Refer to the indicated Service Bulletin for specific application requirements.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Vibrating marking pencil | LOCAL | Vibrating marking pencil |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-001 ADHESIVE TAPE (MASKING) | LOCAL | CoMat 02-001 | ||
| CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT | 0AM53 | CoMat 07-036 |
Spares
NONESafety Requirements
NONEProcedure
Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-006.
Remove the corrosion.
SUBTASK 72-41-21-110-139 Clean the Part
Refer to Figure.
Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-008.
Apply type A layer of high heat resistant paint and stove as required.
SUBTASK 72-41-21-380-099 Apply the Corrosion Protection
Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-220-001.
Examine the layer of high heat resistant paint.
SUBTASK 72-41-21-220-406 Examine the Heatshields
Refer to Figure.
Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.
NUMBER BEFORE 6A3020.
NEW NUMBER 6A3978.
NUMBER BEFORE 6A3021.
NEW NUMBER 6A3979.
Use vibro-engraving equipment.
Replace the part number with the new part number.
SUBTASK 72-41-21-350-154 Identify the Reworked Part

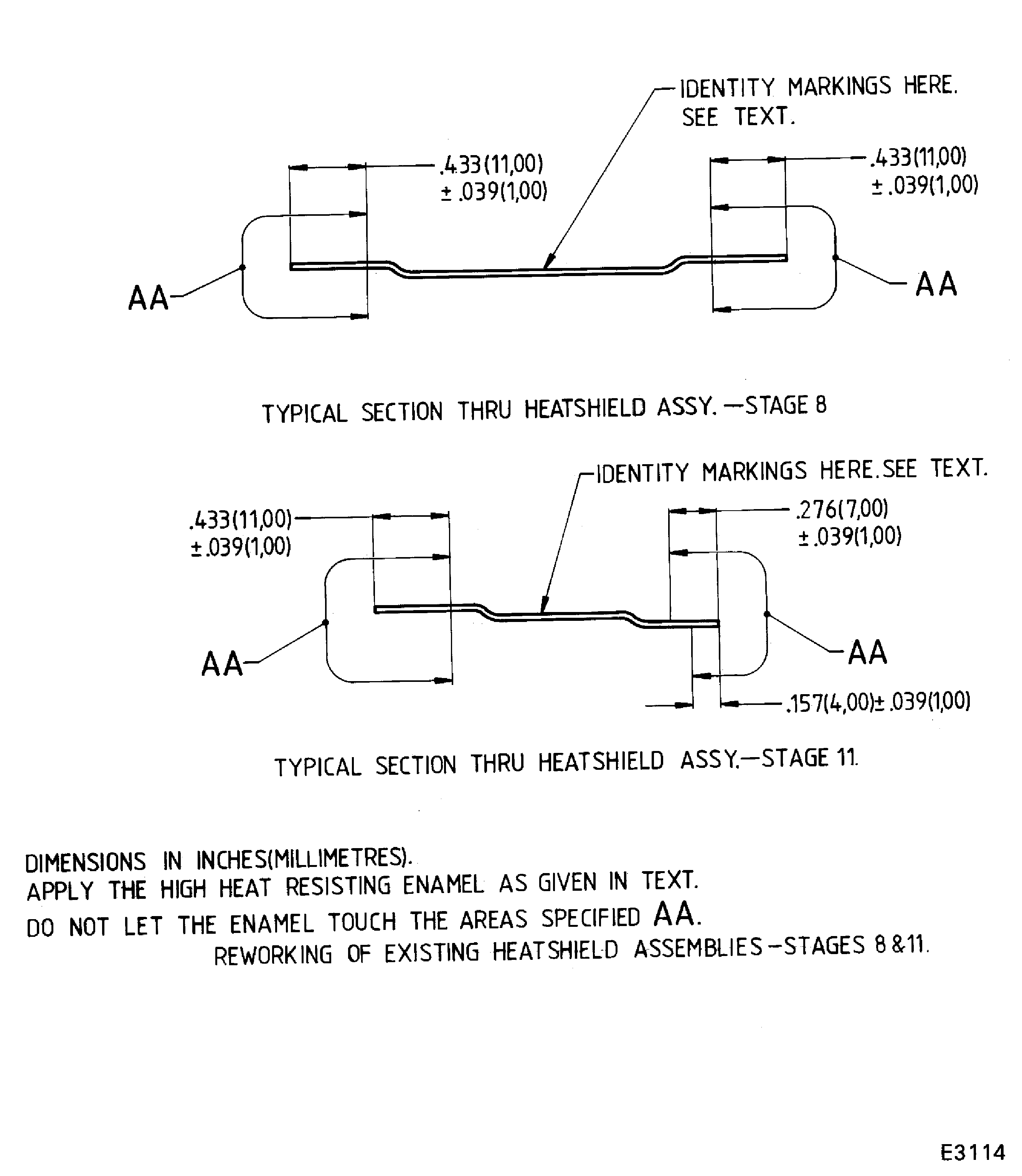

Figure: Stage 8 and 11 heatshields
Stage 8 and 11 heatshields
