TASK 72-41-21-300-083 HPC Heatshields - Replace The Surface Protection On The Stage 10 Front Heatshield, Repair-083 (VRS6335)

DMC:V2500-A0-72-41-2140-01A-609A-C|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-41-21-300-083 HPC Heatshields - Replace The Surface Protection On The Stage 10 Front Heatshield, Repair-083 (VRS6335)

Effectivity

Fig/Item Part No.

04-500 6A3030

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

HP Compressor Stage 10

QRK

38 percent Nickel,

Front Heatshield Assembly

14 percent Cobalt,

1.5 percent Titanium,

1 percent Manganese

and

QTX

38 percent Nickel,

14 percent Cobalt,

4.75 percent Niobium,

1.6 percent Titanium

General

This repair must only be done when the instruction to do so is given in 72-41-21 Inspection.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are given in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

  1. Equivalent materials or equipment can be used.

  2. More equipment and materials necessary to do this Repair are in TASK 70-09-00-400-501,

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Abrasive blast equipmentLOCALAbrasive blast equipment
Dry blast equipmentLOCALDry blast equipment
BrushLOCALBrush

Vacuum assisted

Paint spray equipmentLOCALPaint spray equipment
Conductivity meterLOCALConductivity meter

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEARLOCALCoMat 07-024
CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT0AM53CoMat 07-036

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-120-079 Prepare the Part for Repair

    1. Refer to Figure, Figure and Figure.

      2. CAUTION

        SURFACES FOR REPAIR MUST BE FULLY CLEANED AND NOT TOUCHED BY HAND.
        CLEAN COTTON OR POLYTHENE GLOVES MUST BE WORN.

        Seal the areas not to be repaired.

      3. Abrasive blast the areas to be repaired.

    4. Remove the masking tape.

      5. Clean the assembly.

      1. Make sure that all the abrasive grit has been removed.

      2. Use a dry air blast or a vacuum assisted brush.

    2. SUBTASK 72-41-21-380-114 Apply the Surface Protection

    1. Refer to Figure, Figure and Figure.

      2. Seal the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-008 (type 'A' coating).

      2. Use CoMat 07-036 ALUMINIUM HIGH HEAT RESISTANT PAINT, with paint spray equipment.

    4. NOTE

      Remove the masking tape, before you stove the aluminum high heat resistant paint.

    3. SUBTASK 72-41-21-220-455 Examine the Surface Protection

    1. Refer to Figure, Figure and Figure.

      2. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-220-001, (type 'A' coating).

      3. Do a conductivity check.

      1. Use a conductivity meter.

    4. SUBTASK 72-41-21-350-167 Re-identify the Part

      1. Re-identify the part.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-002.

      3. Mark on the part number adjacent to the existing marks which are under the surface protection.

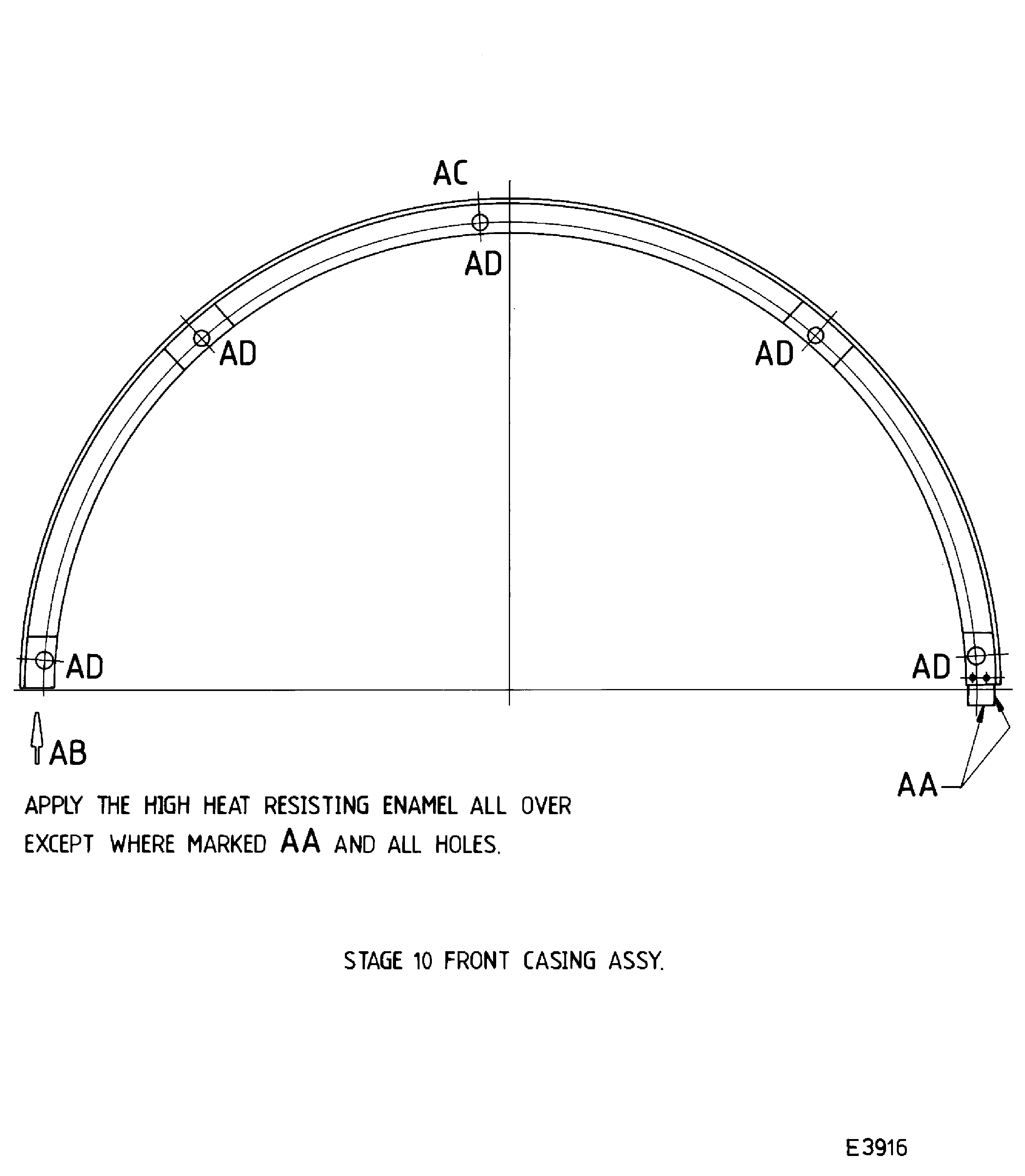

    5. Figure: Repair details and dimensions

    Repair details and dimensions

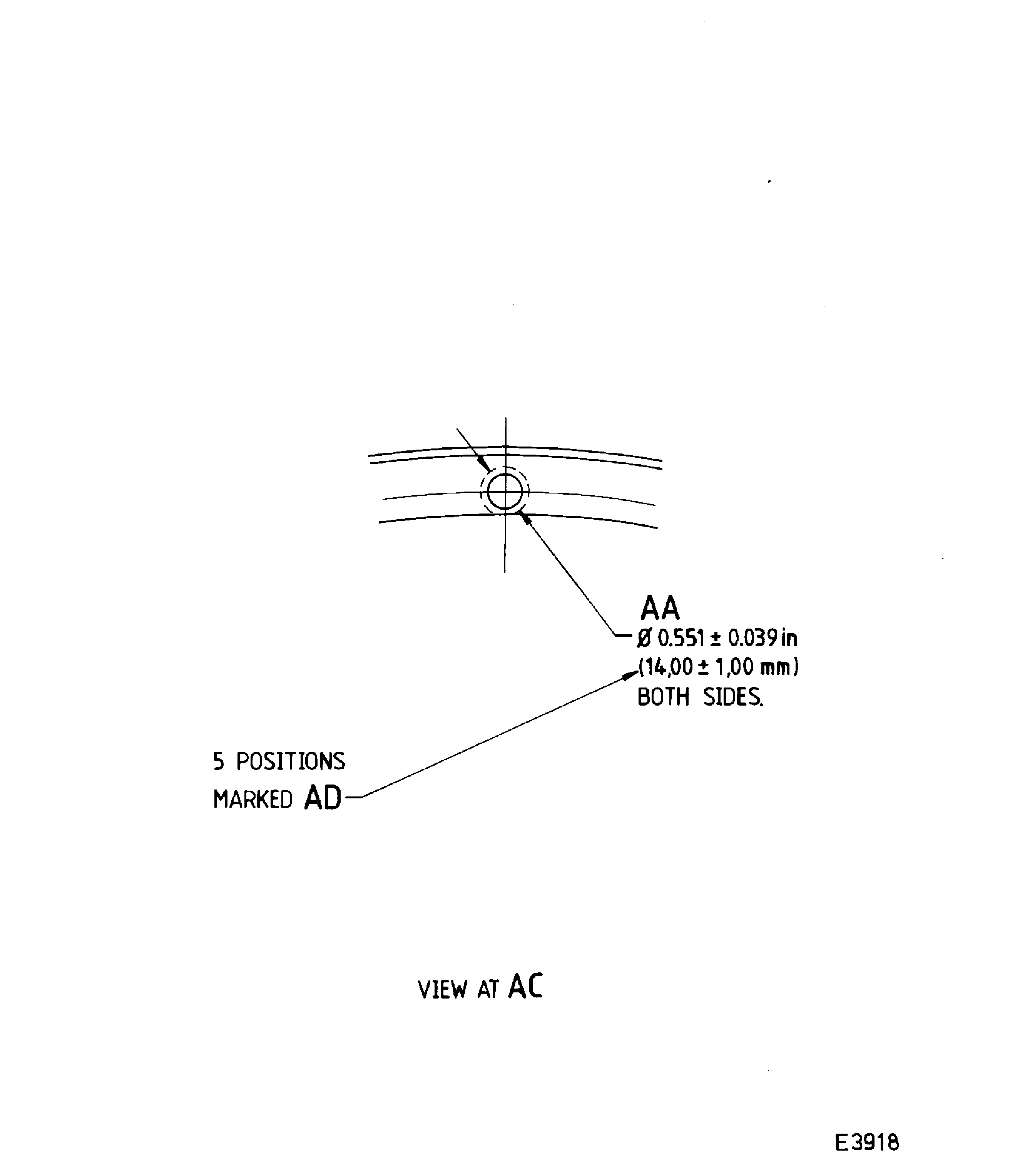

    Figure: Repair details and dimensions

    Repair details and dimensions

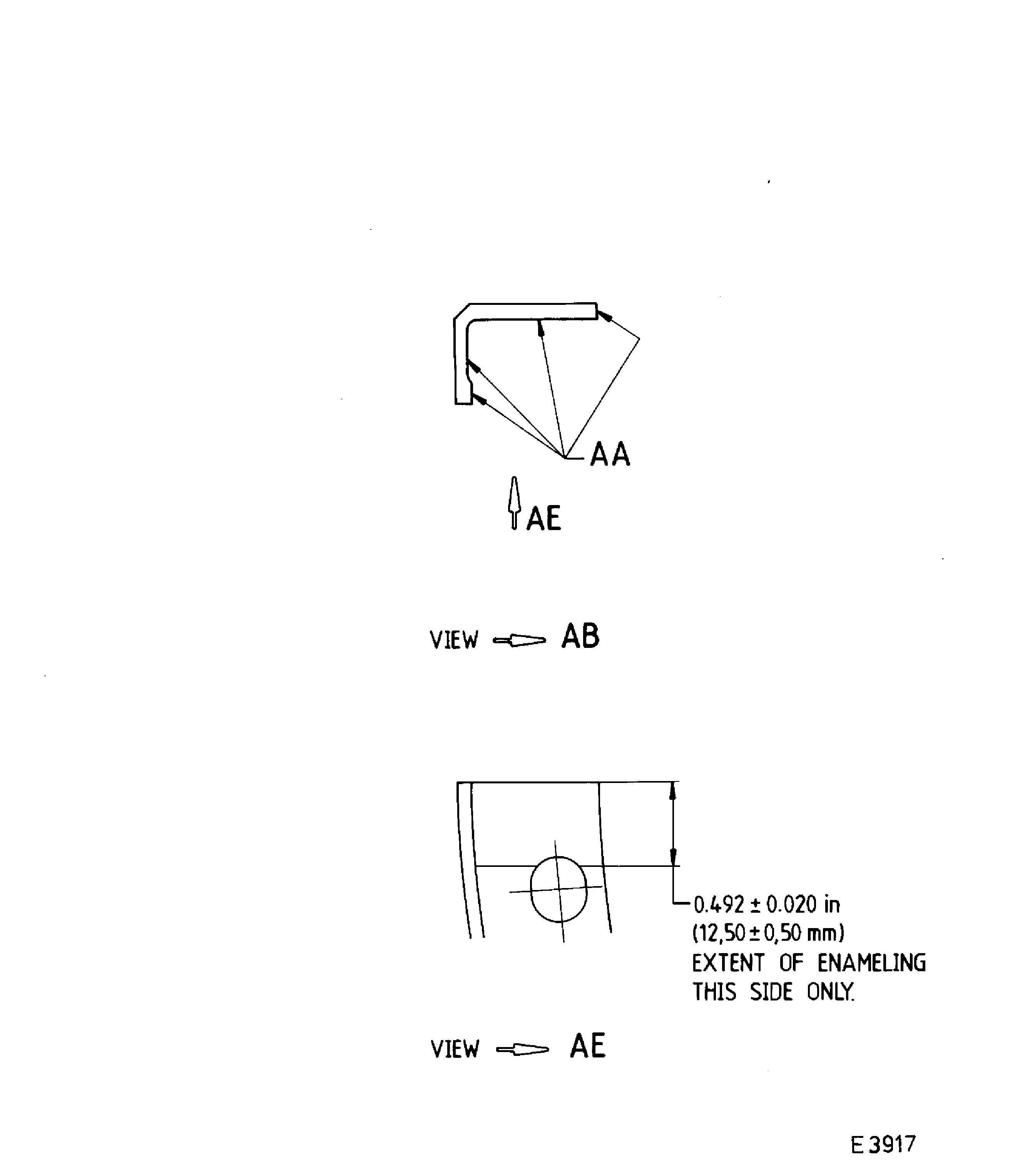

    Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
