TASK 72-41-32-300-003 HPC Stage 3 Variable Stator Vane - Repair Surface Damage By Material Removal, Repair-003 (VRS6034)

DMC:V2500-A0-72-41-3203-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-32-300-003 HPC Stage 3 Variable Stator Vane - Repair Surface Damage By Material Removal, Repair-003 (VRS6034)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

02-500

6A3813

A

02-500

6A3883

A

02-500

6A4401

B

02-500

6A5677

B

02-500

6A7729

B

02-500

6A7476

B

02-500

6A8063

A

02-500

6A8068

A

02-500

6A8720

C

02-500

6B1271

C

02-550

6B1273

C

02-600

6A3815

A

02-600

6A3884

A

02-600

6A4402

B

02-600

6A5678

B

02-600

6A7730

B

02-600

6A7477

B

02-600

6A8062

A

02-600

6A8067

A

02-600

6A8721

C

02-600

6B1272

C

Material of component

PART IDENT

MATERIAL

Stage 3

HP compressor variable stator vane

Corrosion resistant steel

General

This repair must only be done when the instruction to do so is given in 72-41-32 Inspection/Check.

This repair gives the instruction to remove damage on the HP compressor variable stator vane, stage 3 by material removal.

Not more than ten percent of variable stator vanes dressed to the maximum limit of this Repair should be included in any one stator stage.

Variable stator vanes must be repaired as soon as damage or wear is monitored, to get back HP compressor efficiency and extend the variable stator vane life.

Material removal from the HP compressor variable stator vane airfoil fillet radius is not permitted.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-39-300-503
SPM TASK 70-23-04-230-501
SPM TASK 70-23-05-230-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Dimensional inspection equipmentLOCALDimensional inspection equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Portablegrinding equipmentLOCALPortable grinding equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-075 WATERPROOF SILICON CARBIDEIE241CoMat 05-075
CoMat 05-076 WATERPROOF SILICON CARBIDEK3895CoMat 05-076
CoMat 05-077 WATERPROOF SILICON CARBIDEK6835CoMat 05-077
CoMat 05-079 WATERPROOF SILICON CARBIDEK3895CoMat 05-079
CoMat 05-082 WATERPROOF SILICON CARBIDE44197CoMat 05-082
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-32-230-098 Do a Crack Test

      1. Do a penetrant crack test.

      1. Refer to the SPM TASK 70-23-04-230-501.

        Do a full crack test to identify all areas for dressing.

        Use penetrant crack test equipment.

        Cracks are not permitted.

    2. SUBTASK 72-41-32-220-229 Visually Examine

      1. Visually examine the vane.

      1. Indications of defects on the vane are not permitted and must be removed.

    3. SUBTASK 72-41-32-350-077-A00 Remove Damage from the HP Compressor Variable Stator Vane, Stage 3, Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

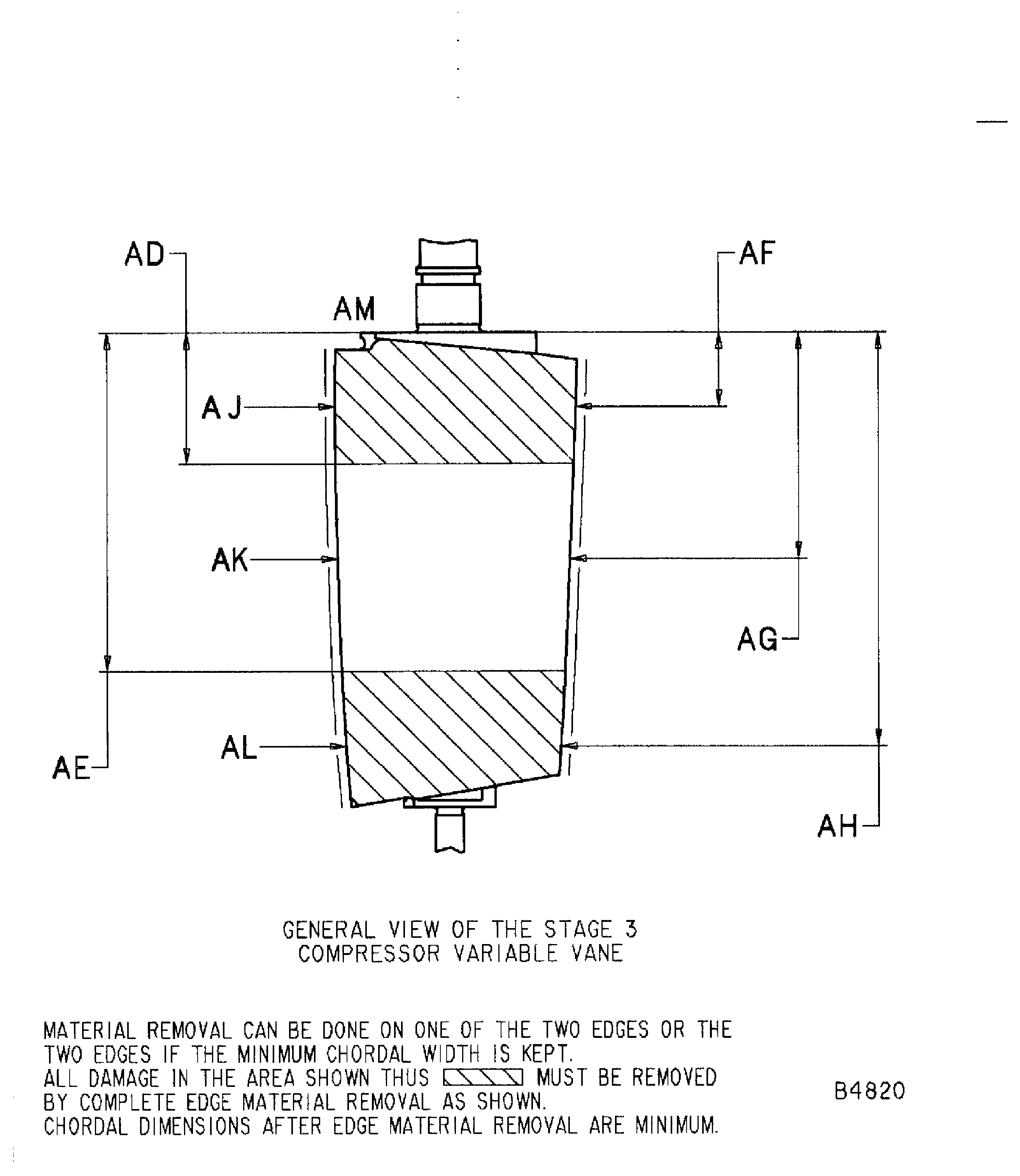

        Refer to the material removal limits shown below:

        AD 1.300 in. (33.02 mm).

        AE 3.340 in. (84.84 mm).

        AF 0.660 in. (16.76 mm).

        AG 2.120 in. (53.85 mm).

        AH 4.060 in. (103.12 mm).

        AJ 2.374 in. (60.30 mm).

        Ak 2.258 in. (57.35 mm).

        AL 2.094 in. (53.19 mm).

        AN 1.000 in. (25.40 mm).

      3. Remove damage on the airfoil surfaces by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

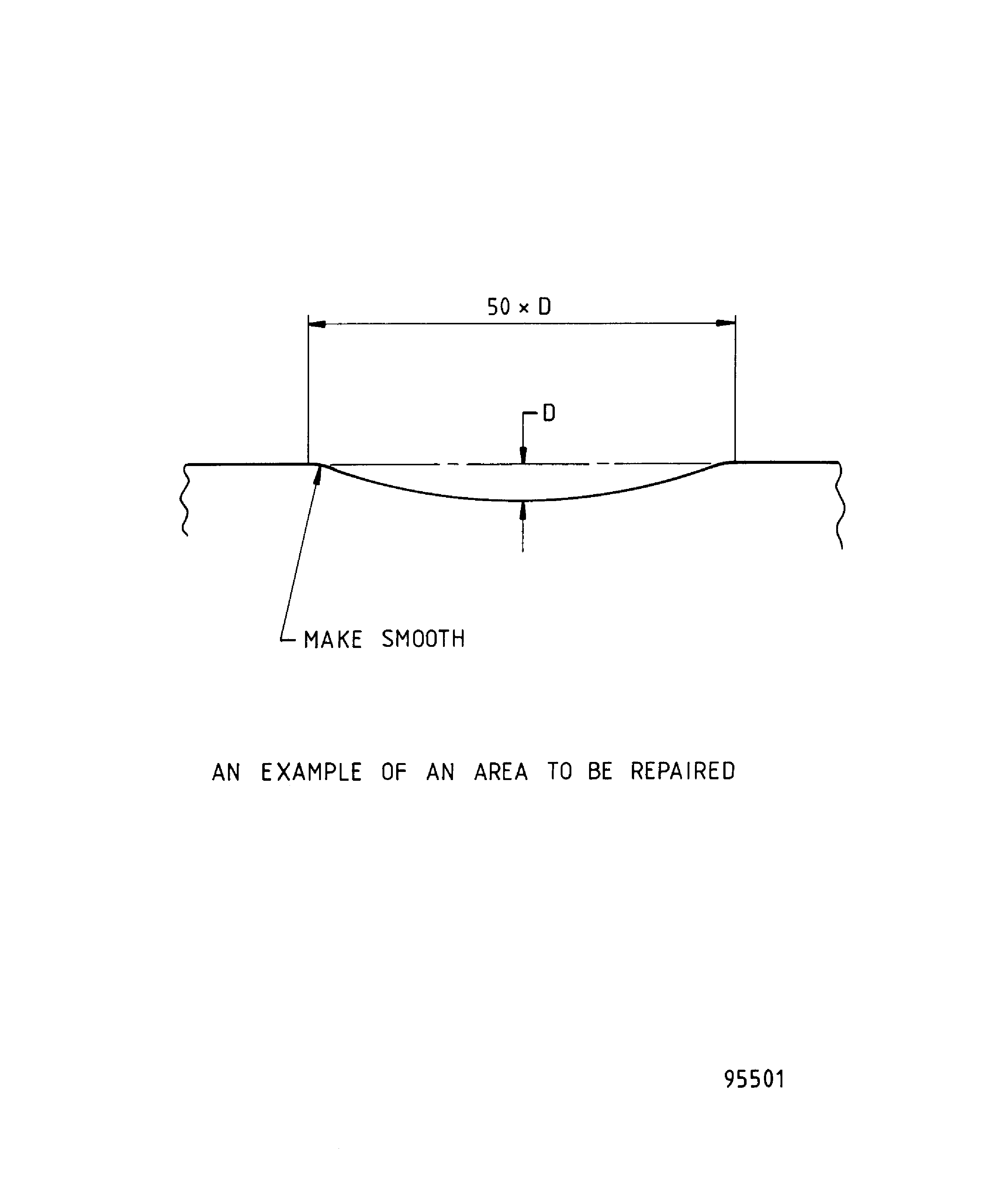

        The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      1. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      1. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

    6. NOTE

      The last polish is to be in a radial direction.

    4. SUBTASK 72-41-32-350-077-B00 Remove Damage from the HP Compressor Variable Stator Vane, Stage 3, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        Refer to the material removal limits shown below:

        AD 1.300 in. (33.02 mm).

        AE 3.340 in. (84.84 mm).

        AF 0.630 in. (16.00 mm).

        AG 2.110 in. (53.59 mm).

        AH 4.070 in. (103.38 mm).

        AJ 2.644 in. (67.16 mm).

        Ak 2.422 in. (61.52 mm).

        AL 2.239 in. (56.87 mm).

        AN 1.000 in. (25.40 mm).

      3. Remove damage on the airfoil surfaces by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

        The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      1. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      1. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

    6. NOTE

      The last polish is to be in a radial direction.

    5. SUBTASK 72-41-32-350-077-C00 Remove Damage from the HP Compressor Variable Stator Vane, Stage 3, Assembly C

    1. Refer to Figure, Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        Refer to the material removal limits shown below:

        AD 1.300 in. (33.02 mm).

        AE 3.340 in. (84.84 mm).

        AF 0.630 in. (16.00 mm).

        AG 2.110 in. (53.59 mm).

        AH 4.070 in. (103.38 mm).

        AJ 2.725 in. (69.22 mm).

        Ak 2.459 in. (62.45 mm).

        AL 2.306 in. (58.58 mm).

        AN 1.000 in. (25.40 mm).

      3. Remove damage on the airfoil surfaces by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

        The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      1. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      1. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

    6. NOTE

      The last polish is to be in a radial direction.

    6. SUBTASK 72-41-32-220-124-A00 Examine the Repaired HP Compressor Variable Stator Vane, Stage 3, Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Make sure the maximum depth of the repair on the airfoil surface(s) is not more than 0.005 in. (0.13 mm).

        Discard the vanes, if more than the limits specified.

        Use dimensional inspection equipment.

    7. SUBTASK 72-41-32-220-124-B00 Examine the Repaired HP Compressor Variable Stator Vane, Stage 3, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Make sure the maximum depth of the repair on the airfoil surface(s) is not more than 0.005 in. (0.13 mm).

        Discard the vanes, if more than the limits specified.

        Use dimensional inspection equipment.

    8. SUBTASK 72-41-32-220-124-C00 Examine the Repaired HP Compressor Variable Stator Vane, Stage 3, Assembly C

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Make sure the maximum depth of the repair on the airfoil surface(s) is not more than 0.005 in. (0.13 mm).

        Discard the vanes, if more than the limits specified.

        Use dimensional inspection equipment.

    9. SUBTASK 72-41-32-110-070 Cold Ferric Chloride Etch

      1. Swab etch the repaired area(s).

      1. Refer to the SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

        Use chemical cleaning equipment.

    10. SUBTASK 72-41-32-230-068 Do a Local Crack Test

      1. Do a local penetrant crack test on the repaired area(s).

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use penetrant crack test equipment.

        No cracks are permitted.

    11. SUBTASK 72-41-32-350-079 Identify the Repair

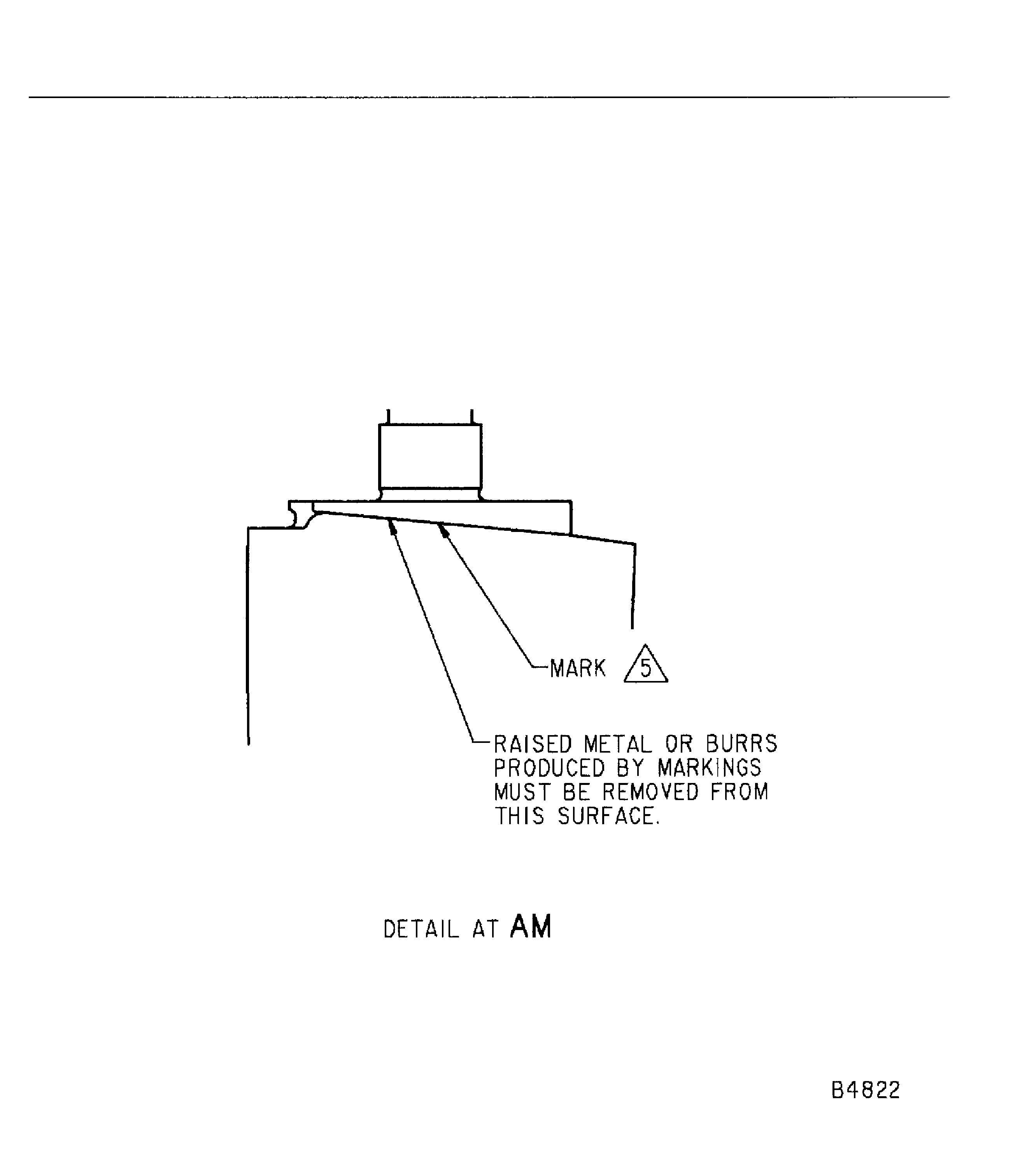

    1. Refer to: Figure

      2. Mark a code symbol, adjacent to the assembly number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro-engraving equipment.

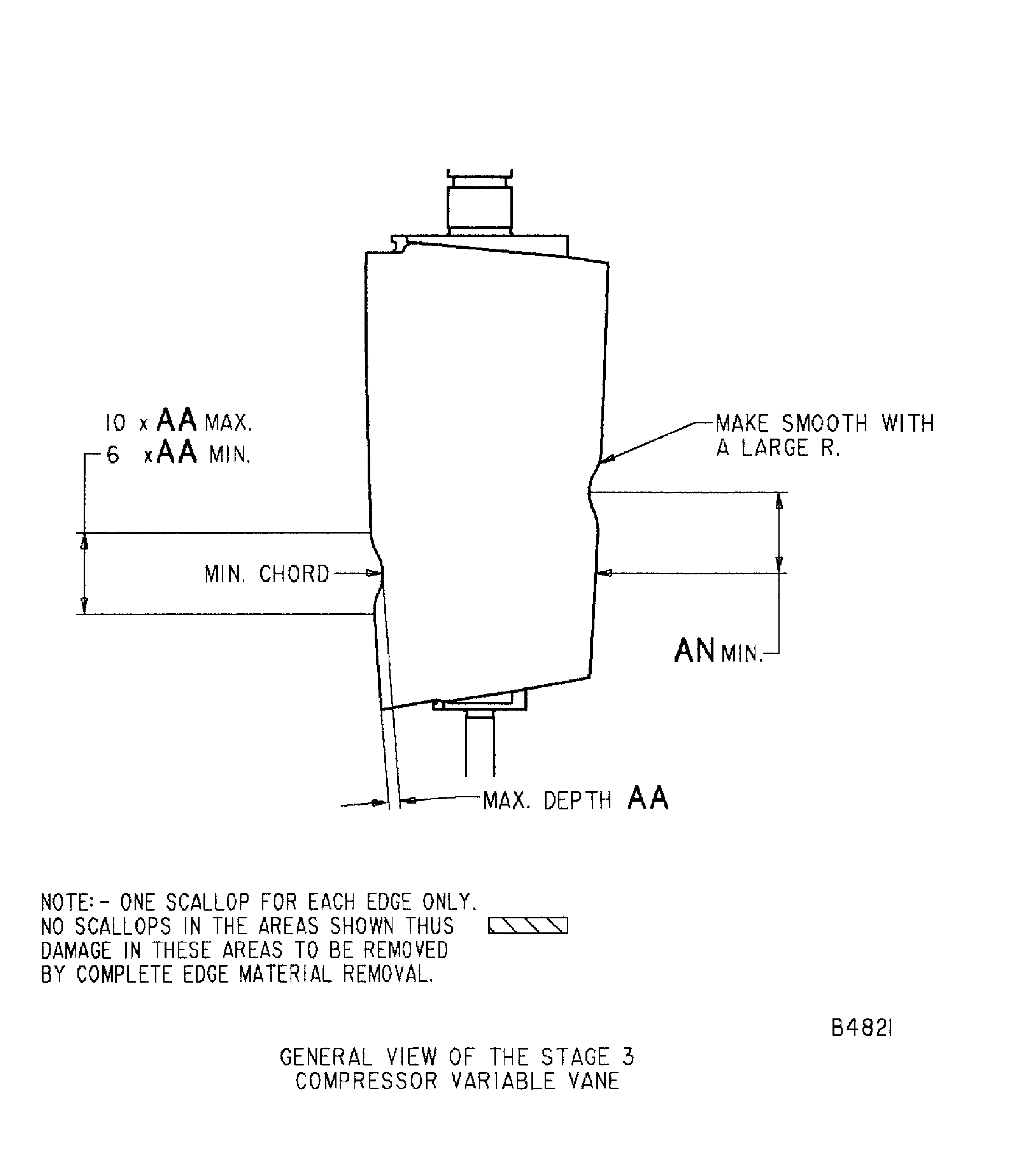

    12. Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

Requirements After Job Completion

Follow-On Conditions

NONE
