TASK 72-41-34-300-053 HPC Stage 6 Unison Rings - Repair The Surface Protection, Repair-053 (VRS6126)

DMC:V2500-A0-72-41-3426-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-300-053 HPC Stage 6 Unison Rings - Repair The Surface Protection, Repair-053 (VRS6126)

Effectivity

FIG/ITEM PART NO.

06-440

6A3551

06-440

6A8097

06-440

6A4123

06-540

6A3553

06-540

6A8098

06-540

6A4125

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

HP compressor stage 6 variable

EPZ

Corrosion resistant steel

vanes actuating ring assembly

General

This Repair must only be done when the instruction to do so is given in TASK 72-41-34 (INSPECTION/CHECK).

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and availability

Refer to International Aero Engines

NOTE

  1. Equivalent materials or equipment can be used.

  2. More equipment and materials necessary to do this Repair are in the SPM TASKS given below:

    TASK 70-09-00-400-501

    TASK 70-11-01-100-501

    TASK 70-12-02-120-501

    TASK 70-38-35-380-001

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Abrasive blast equipmentLOCALAbrasive blast equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 07-075 HIGH-HEAT RESISTING STOVING ENAMELk3504CoMat 07-075

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-110-067 Chemically Clean

      1. Degrease the actuating ring.

      1. Refer to the SPM TASK 70-11-01-100-501.

        Use chemical cleaning equipment.

    2. SUBTASK 72-41-34-120-052 Abrasive Blast

      CAUTION

      UNMASKED SURFACES MUST NOT BE HANDLED WITH BARE HANDS. CLEAN POLYTHENE OR COTTON GLOVES MUST BE WORN.
      IF SURFACES ARE TOUCHED OR CONTAMINATED, DO Step AND Step AGAIN.

    1. Refer to: Figure

      3. Dry abrasive blast the areas to have protection.

    4. Remove masking tape.

      5. Remove all excess abrasive.

      1. Use clean, dry compressed air blast.

    3. SUBTASK 72-41-34-380-059 Apply Surface Protection

    1. Refer to: Figure

      2. Mask areas not to have protection.

    4. SUBTASK 72-41-34-350-098 Identify the Component

      1. Make a mark VRS6126 adjacent to the assembly number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro engraving equipment.

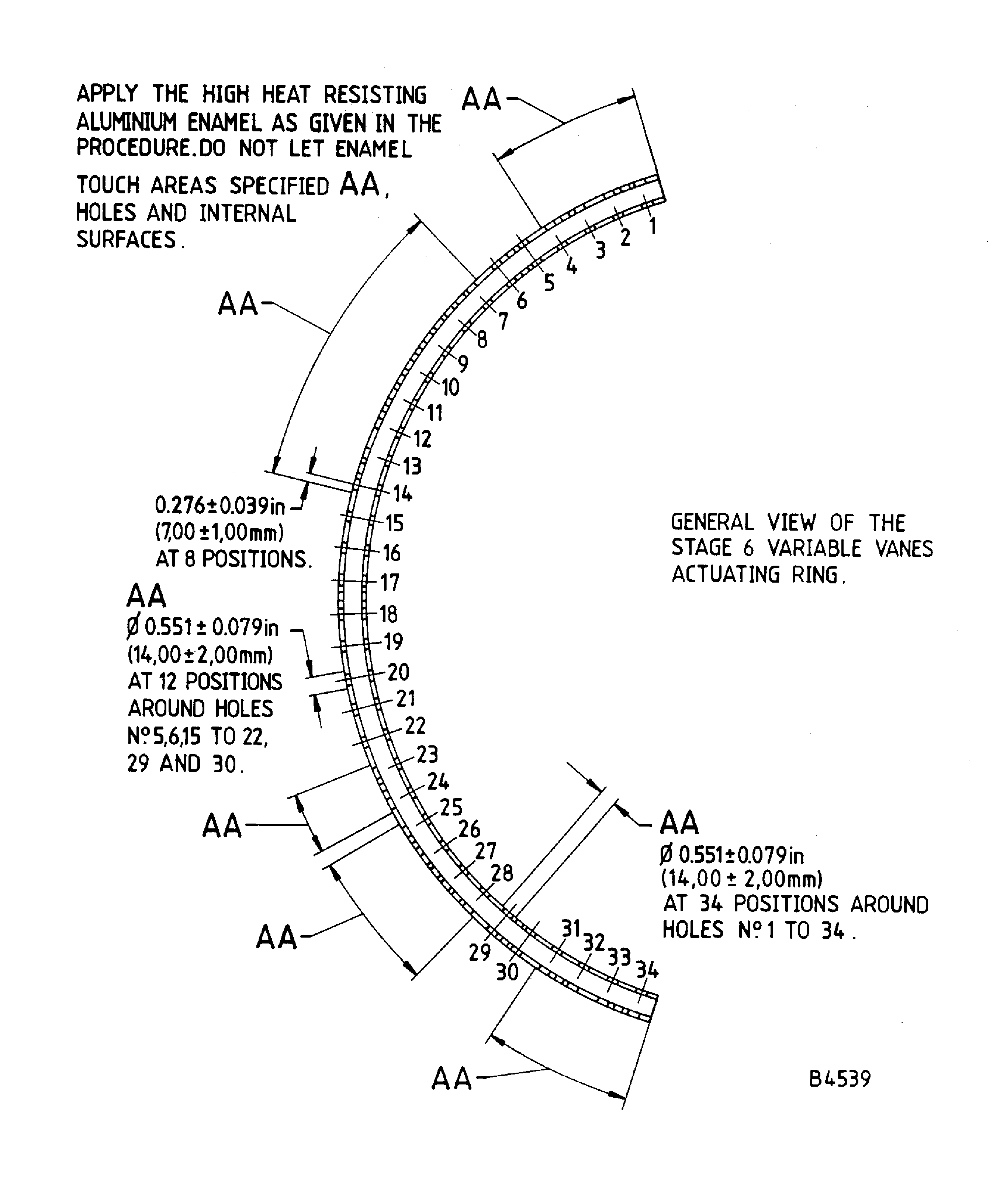

    5. Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
