TASK 72-42-31-300-005 No. 4 Bearing Support - Nickel Plate The Intermediate Flange, Repair-005 (VRS3076)

DMC:V2500-A0-72-42-3100-04A-647A-C|Issue No:002.00|Issue Date:2014-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-31-300-005 No. 4 Bearing Support - Nickel Plate The Intermediate Flange, Repair-005 (VRS3076)

Effectivity

FIG/ITEM PART NO.

01-010

2A0846

01-010

2A2038

01-010

2A2064

01-010

2A2461

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 4 bearing support

-

Nickel alloy

General

Price and availability - Refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnifying glass, 4XLOCALMagnifying glass, 4X

or greater

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 05-110 EMERY POLISHING PAPER0AM53CoMat 05-110
CoMat 05-120 POLISHING CLOTH06565CoMat 05-120

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-31-320-059 Machine the Intermediate Flange Surface of the No. 4 Bearing Support before Nickel Plate

      1. Machine the flange surface of the support.

      1. Refer to Figure.

        Hold to the maximum value.

        The part must be in a held condition.

        All dimensions apply when Surface N is flat by 0.001in. (0.025 mm) and Diameter M maintains a clearance envelope of 13.350in. (339.09 mm) in a free or held condition.

        Hold the support only on Surface N, L and S and Diameter M.

        If the flange surface was plated before, you can strip it.

        Refer to the SPM TASK 70-33-06-300-503.

    2. SUBTASK 72-42-31-230-056 Examine the No. 4 Bearing Support

      1. Fluorescent penetrant inspect the support.

      1. Refer to the SPM TASK 70-23-01-230-501.

        No cracks are permitted.

    3. SUBTASK 72-42-31-380-056 Apply a Mask to the No. 4 Bearing Support

      1. Apply a mask to the areas of the support that are not be plated.

    4. SUBTASK 72-42-31-300-055 Nickel Plate the Intermediate Flange of the No. 4 Bearing Support

    1. Refer to Figure.

      2. Nickel plate the flange surface of the support.

      1. Refer to the SPM TASK 70-33-06-300-503.

        Apply nickel plate to a sufficient thickness to permit finish machining.

        Plating outside the repair area is permitted but must be removed. Nickel plate is optional in the radii and full nickel plate is not necessary as shown in the figure.

    3. Remove the mask.

    5. SUBTASK 72-42-31-110-058 Clean the No. 4 Bearing Support

      1. Clean the support.

      1. Flush the support with cold water.

        Flush the support with hot water.

        Dry the support with air blast.

    6. SUBTASK 72-42-31-370-055 Bake after Nickel Plate

      1. Bake the support after nickel plate.

      1. Put the support into a furnace at 360 to 390 deg F (182 to 199 deg C) for three hours.

        Do this process as soon as possible in less than one hour after nickel plate.

    7. SUBTASK 72-42-31-320-060 Machine the Intermediate Flange of the No. 4 Bearing Support after Nickel Plate

    1. Refer to Figure.

      2. Machine the flange surface of the support after nickel plate.

      1. The minimum plating thickness is 0.002 in. (0.05 mm) after machining.

        The part must be in a held condition.

        All dimensions apply when Surface N is flat by 0.001 in. (0.03 mm) and Diameter M maintains a clearance envelope of 13.350 in. (339.09 mm) in a free or held condition.

        Hold the support only on Surfaces N, L and S and Diameter M.

        Maintain the radii.

        Steps are not permitted.

      3. Blend incomplete plating around the holes.

      1. Refer to Figure for the dimensions.

        Refer to SPM TASK 70-35-21-350-501.

    8. SUBTASK 72-42-31-220-067 Examine the Repair

      1. Examine the support after nickel plate and finish machining.

      1. Refer to Figure and TASK 72-42-31-200-000 (INSPECTION-000).

        Use a Magnifying glass, 4X to do a visual inspection of the plated area to examine for cracks and adhesion.

    9. SUBTASK 72-42-31-350-062 Identify the Repair

      1. Mark VRS3076 on the repaired No. 4 bearing support adjacent to the part number.

      1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

        Remove high metal caused by marking the number.

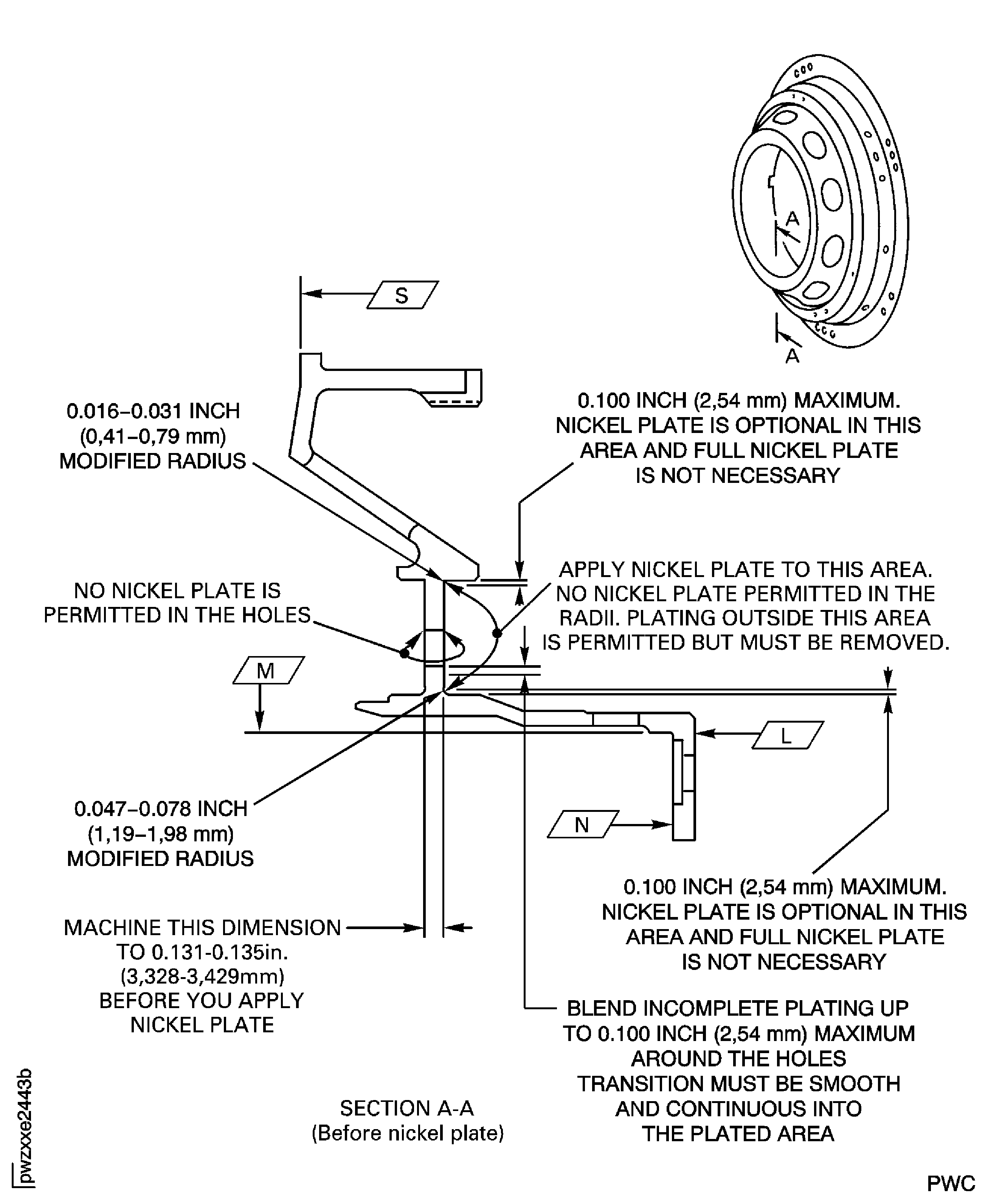

    10. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

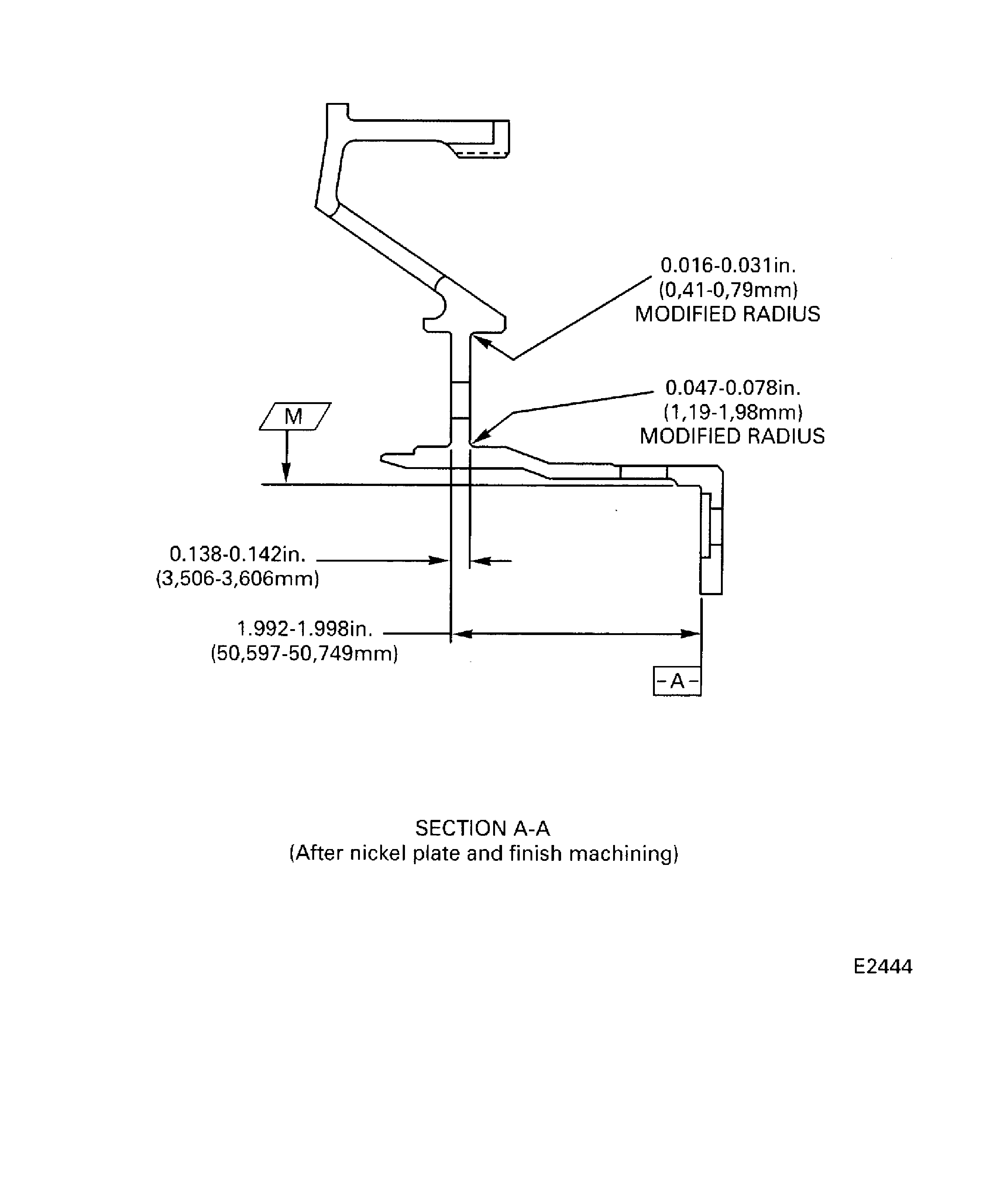

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
