Common Information
TASK 72-42-33-300-011 No. 4 Bearing Face Seal - Lap The No. 4 Bearing Face Seal, Repair-011 (VRS3083)
General
Price and availability
Refer to IAE
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-11-18-300-503.
Lap the face seal.
SUBTASK 72-42-33-350-051 Lap the No. 4 Bearing Face Seal (01-220)
Refer to Figure.
If the height of the carbon seal lip is less than 0.115 in. (2.92 mm).
Refer to Repair, VRS3676 TASK 72-42-33-300-021 (REPAIR-021).
Examine the face seal for the height of the carbon seal lip.
SUBTASK 72-42-33-220-068 Examine the No. 4 Bearing Face Seal (01-220) after Lap Repair

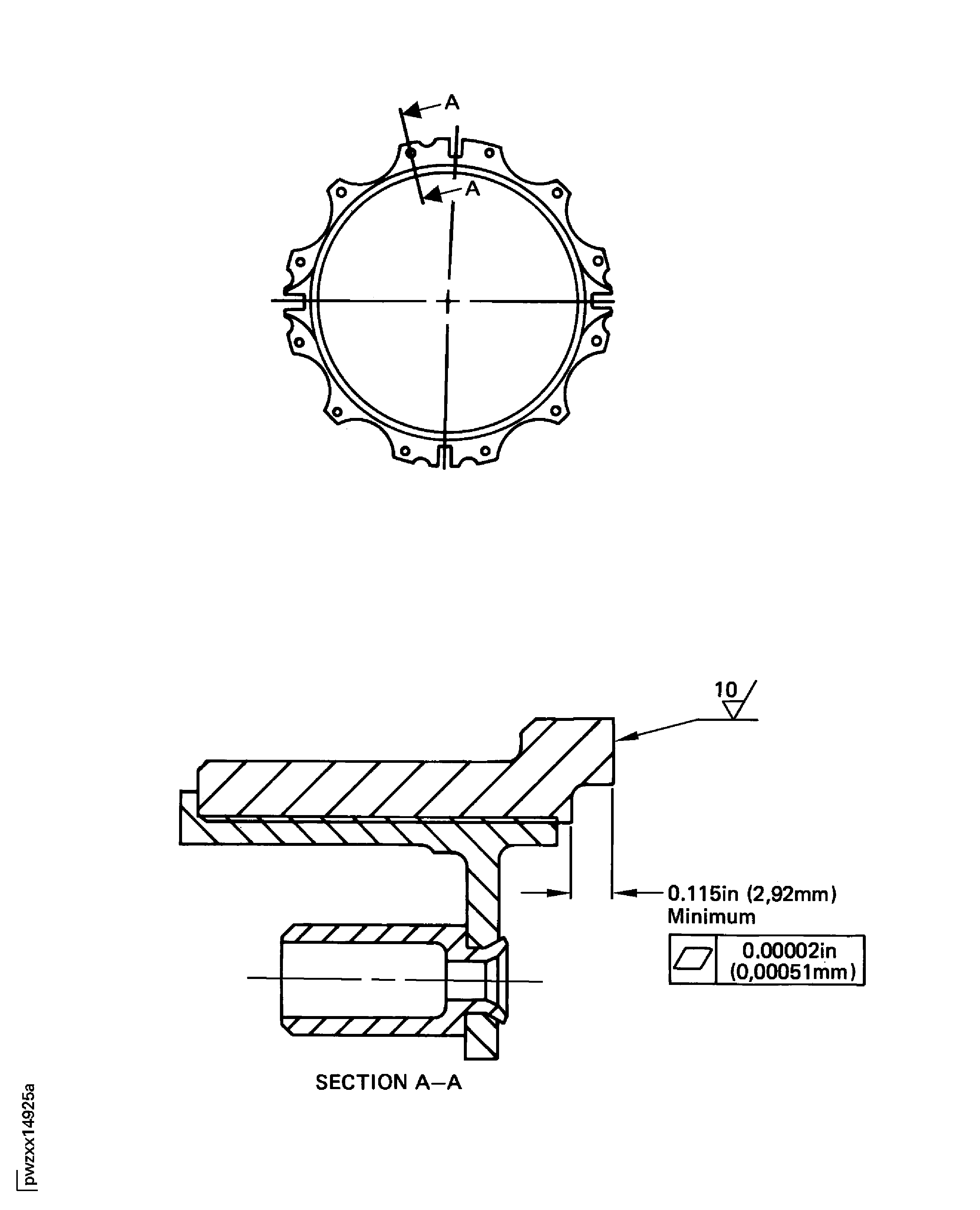

Figure: Repair Details and Dimensions
Repair Details and Dimensions
