TASK 72-42-35-300-002 No. 4 Bearing Front Cooling Duct - Blend Repair, Repair-002 (VRS3301)
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-106 ABRASIVE STONE | K6835 | CoMat 05-106 | ||
| CoMat 05-110 EMERY POLISHING PAPER | 0AM53 | CoMat 05-110 | ||
| CoMat 05-120 POLISHING CLOTH | 06565 | CoMat 05-120 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
Refer to the SPM TASK 70-35-03-300-501. Use CoMat 05-106 ABRASIVE STONE, CoMat 05-110 EMERY POLISHING PAPER or CoMat 05-120 POLISHING CLOTH and a fine file.
Blend wear and galling in the cooling air bosses.
SUBTASK 72-42-35-350-051 Blend the Cooling Air Bosses in the No. 4 Bearing Front Cooling Duct
Refer to the SPM TASK 70-35-03-300-501. Use CoMat 05-106 ABRASIVE STONE, CoMat 05-110 EMERY POLISHING PAPER or CoMat 05-120 POLISHING CLOTH and a fine file.
Blend surface damage on the duct.
SUBTASK 72-42-35-350-052 Blend Surface Damage on the No. 4 Bearing Front Cooling Duct Other than the Cooling Air Bosses
Make sure there is no high metal and the air tubes can move freely. Refer to TASK 72-42-35-200-001.
Examine the air cooling bosses and all other surfaces after blend repair.
SUBTASK 72-42-35-220-056 Examine the No. 4 Bearing Front Cooling Duct After Blend Repair

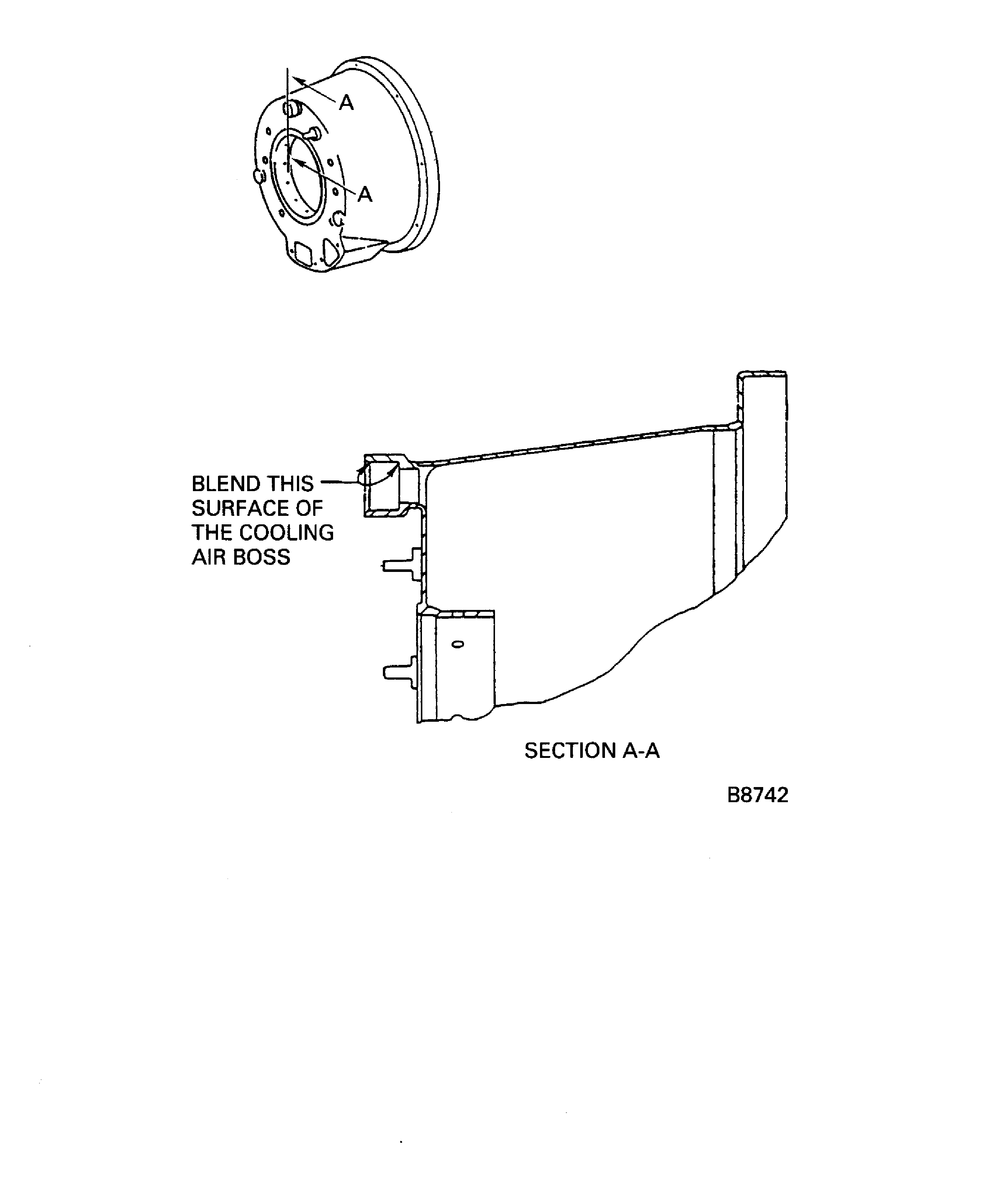

Figure: Blend repair the No. 4 bearing front cooling duct
Blend repair the No. 4 bearing front cooling duct
