Common Information
TASK 72-42-50-300-004 HPC Rear Static Seal - Static Seal Cone Front Flange Surface Blend Repair, Repair-004 (VRS6116)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
HPC Rear Static Seal Cone | QAL | Nickel alloy |
QAW | Nickel alloy | |
QMR | Nickel alloy | |
QZZ | Nickel alloy |
General
This repair must only be done when the instruction to do so is given in TASK 72-42-50 Inspection/Check.
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that all the cleaning and inspection procedures are done before the repair. |
Support Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| DELETED | LOCAL | DELETED |
Spares
NONESafety Requirements
NONEProcedure
The maximum blend depth to remove the damage is 0.005 in. (0.13 mm). The blend diameter to depth ratio is 50:1 is required in all directions. The maximum blend diameter is 0.250 in. (6.35 mm).
A minimum separation of 0.250 in. (6.35 mm) is required between blends in all directions. Up to two adjacent blends permitted. An area, between bolthole to bolthole or bolthole to jacking hole, with no blends permitted, is required to accept two more adjacent blends.
A maximum of four blends are permitted within any 90 degree quadrant on each blend permitted surface.
Blend to remove the damage. Refer to SPM TASK 70-35-03-300-501.
SUBTASK 72-42-50-350-052 Remove the Damage
Clean the HPC Rear Static Seal. Refer to SPM TASK 70-11-03-300-503.
SUBTASK 72-42-50-110-063 Clean the HPC Rear Static Seal
Do a penetrant crack test on the repair area(s). Refer to SPM TASK 70-23-05-230-501.
SUBTASK 72-42-50-230-053-001 Do a Crack Test
Refer to Figure.
Use vibration peen method.
Make a mark VRS6116 adjacent to the part number. If VRS6116 is marked on the part, it is not necessary to do this procedure. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.
SUBTASK 72-42-50-350-081 Identify the Repair

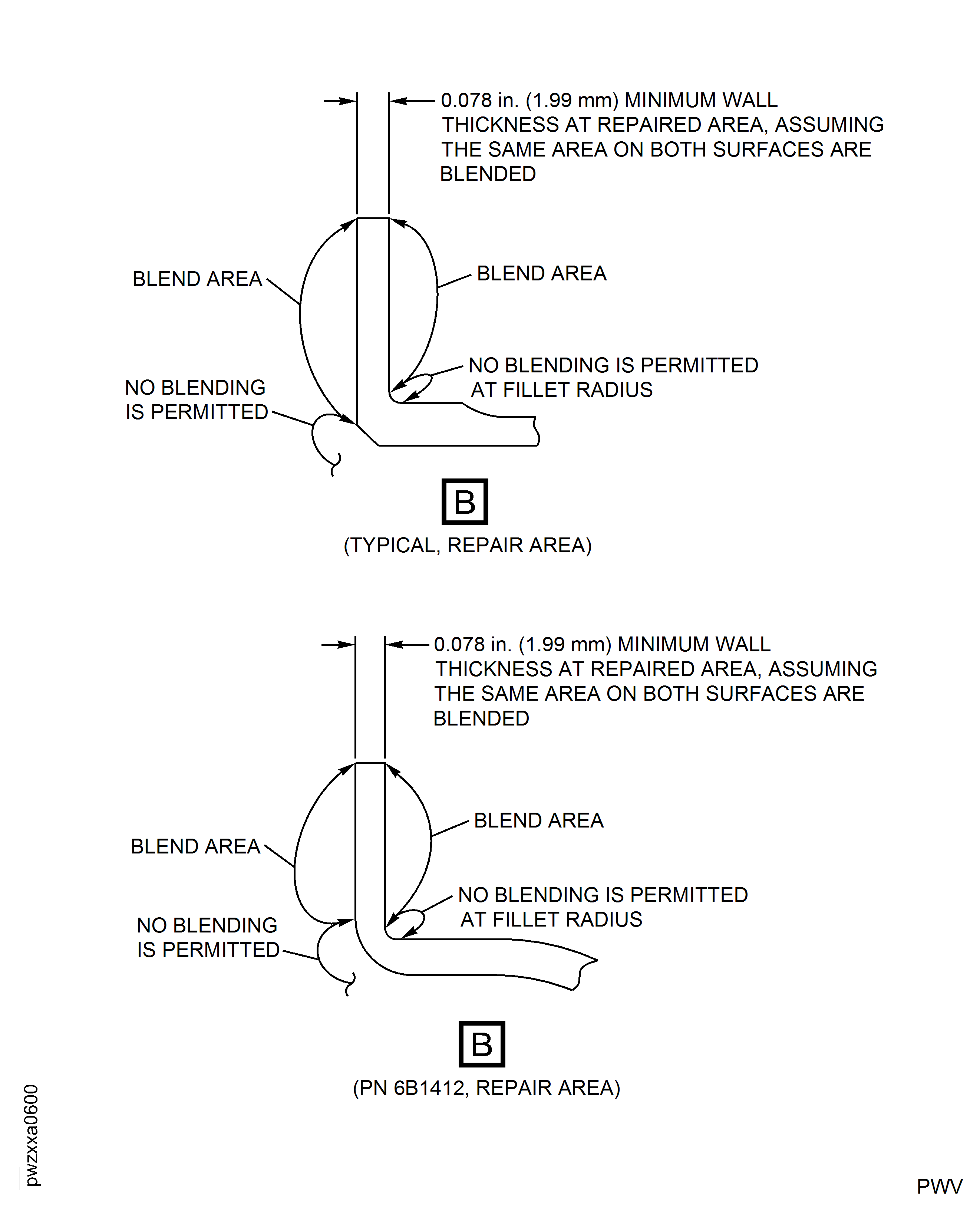

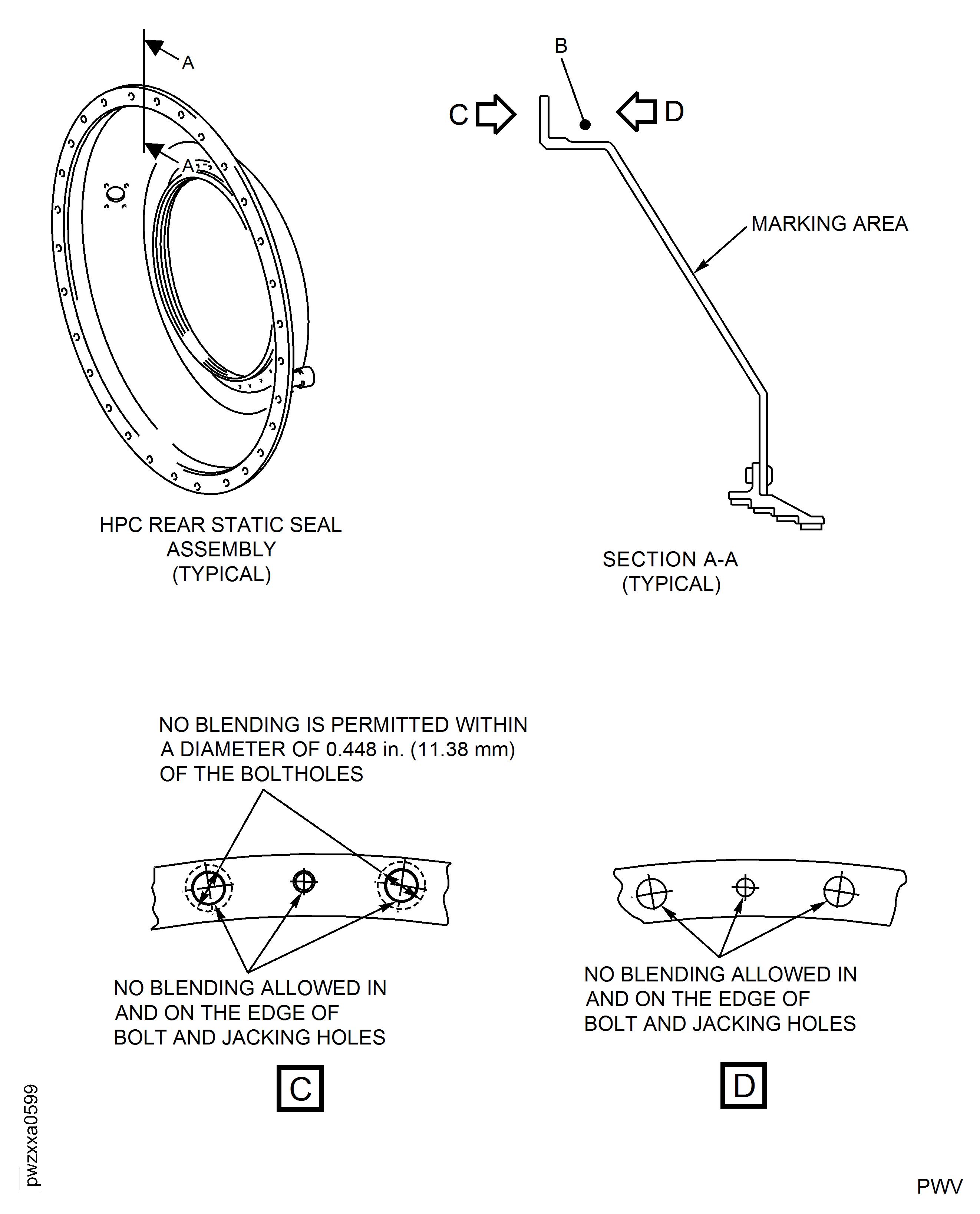

Figure: Repair Details And Dimensions
Repair Details And Dimensions
Figure: Repair Details And Dimensions
Repair Details And Dimensions
Figure: Repair Details And Dimensions
Repair Details And Dimensions
