TASK 72-42-61-300-014 Outer Combustion Chamber Liner - Unplug The Fuel Nozzle Guide Holes, Repair-014 (VRS3421)

DMC:V2500-A0-72-42-6101-00A-652A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-61-300-014 Outer Combustion Chamber Liner - Unplug The Fuel Nozzle Guide Holes, Repair-014 (VRS3421)

Effectivity

FIG/ITEM PART NO.

01-501

2A0550-01

01-501

2A1383

01-501

2A1385

01-501

2A1399

01-501

2A1618

01-501

2A1620

01-501

2A1666

01-501

2A2013

01-501

2A2032

01-501

2A2723-01

01-501

2A2837-01

01-501

2A3345-01

01-501

2A3345-001

01-501

2A3345-002

01-501

2A3345-003

01-501

2A3345-004

01-501

2A3347-01

01-501

2A3347-001

01-501

2A3347-002

01-501

2A3347-003

01-501

2A3347-004

01-501

2A3347-005

01-501

2A3439-01

01-501

2A3439-001

01-501

2A3439-002

01-501

2A3439-003

01-501

2A3439-004

01-501

2A3439-005

01-501

2A3439-006

01-501

2A3439-007

01-501

2A3439-008

01-501

2A3440-01

01-501

2A3440-001

01-501

2A3440-002

01-501

2A3440-003

01-501

2A3440-004

01-501

2A3440-005

01-501

2A3440-006

01-501

2A3440-007

01-501

2A3441-01

01-501

2A3441-001

01-501

2A3441-002

01-501

2A3441-003

01-501

2A3441-004

01-501

2A3441-005

01-501

2A3441-006

01-501

2A3441-007

01-501

2A3441-008

01-501

2A3442-01

01-501

2A3442-001

01-501

2A3442-002

01-501

2A3442-003

01-501

2A3442-004

01-501

2A3442-005

01-501

2A3442-006

01-501

2A3442-007

01-501

2A3442-008

01-501

2A4284-01

01-501

2A4309-01

01-501

2A4312-01

01-501

2A4314-01

01-501

2A4314-001

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Fuel nozzle guide

-

Corrosion and heat resistant

alloy

General

Price and availability - none

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Metal probeLOCALMetal probe
DrillLOCALDrill

(Optional)

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-61-350-084-001 Unplug the Fuel Nozzle Guide Holes (for A1 engines)

      1. Unplug the fuel nozzle guide holes with a metal probe.

      2. Refer to Figure.

        Use a metal probe that has a maximum diameter of 0.070 in. (1.778 mm) to remove unwanted material from the holes.

        You can do this procedure from the hot side or the hood side.

      1. CAUTION

        DO NOT REMOVE BASE MATERIAL WHEN YOU DRILL THE FUEL NOZZLE GUIDE HOLES THE HOLES MUST BE 0.071 TO 0.081 IN. (1.80 TO 2.06 MM) IN DIAMETER.

        If the material is too hard to remove with a metal probe, use a drill to remove the unwanted material.

      2. Use a drill that has a maximum diameter of 0.070 in. (1.778 mm).

        You can drill only from the hot side.

    1. SUBTASK 72-42-61-350-084-002 Unplug the Fuel Nozzle Guide Holes (for A5 engines)

      1. Unplug the fuel nozzle guide holes with a metal probe.

      2. Refer to Fig Figure.

        Use a metal probe that has a maximum diameter of 0.048in. (1.219 mm) to remove unwanted material from the holes.

        You can do this procedure from the hot side or the hood side.

      1. CAUTION

        DO NOT REMOVE BASE MATERIAL WHEN YOU DRILL THE FUEL NOZZLE GUIDE HOLES THE HOLES MUST BE 0.049 TO 0.055IN. (1.245 TO 1.397 MM) IN DIAMETER.

        If the material is too hard to remove with a metal probe, use a drill to remove the unwanted material.

      2. Use a drill that has a maximum diameter of 0.048in. (1.219 mm).

        You can drill only from the hot side.

    1. SUBTASK 72-42-61-350-085 Unplug the Fuel Nozzle Guide Bulkhead Holes

      1. Unplug the fuel nozzle guide bulkhead holes with a metal probe.

      2. Refer to Fig Figure.

        Use a metal probe that has a maximum diameter of 0.080in. (2.032 mm) to remove unwanted material from the holes. The probe must go into the hole approximately 0.500in. (12.7 mm).

        You must do this procedure from the hood side only.

        NOTE

        You cannot see the bulkhead hole from the hot side and it is not easy to see the bulkhead hole from the hood side, so you must not drill the bulkhead hole.
    1. SUBTASK 72-42-61-220-161 Examine the Repair

      1. Clean the area you have repaired.

      2. Refer to TASK 72-42-61-100-000 (CLEANING-000).

    2. Examine all the fuel nozzle guide holes and the fuel nozzle bulkhead holes to make sure you have removed the blockages.

      1. If there are guide holes that have unwanted material you cannot remove, replace the fuel nozzle guide.

      2. Refer to TASK 72-42-61-300-007, VRS3095 Repair 007, (REPAIR-007).

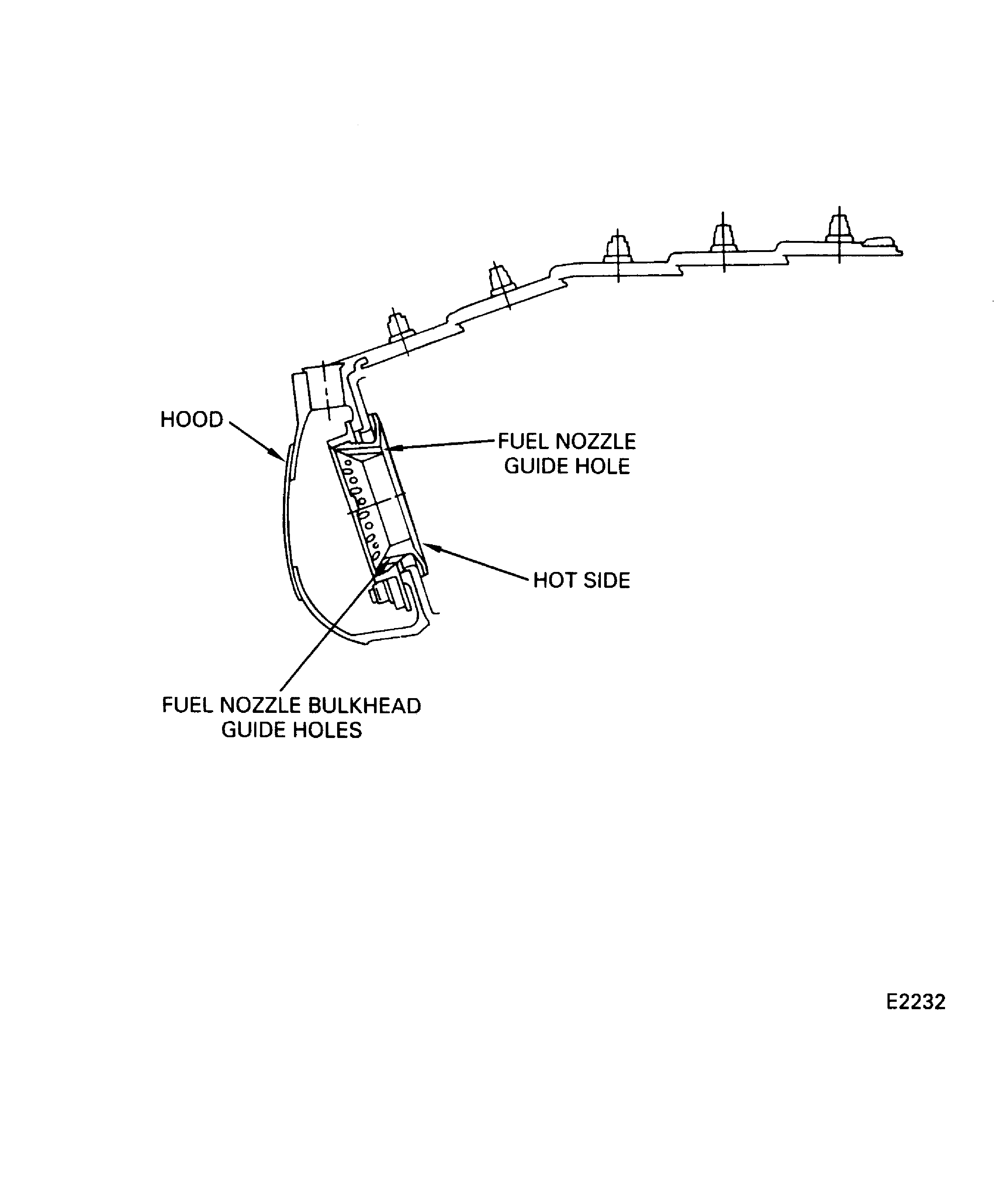

  1. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
