TASK 72-42-61-300-005 Outer Combustion Chamber Liner - Replace The Spark Igniter Seals, Repair-005 (VRS3093)

DMC:V2500-A0-72-42-6101-00A-920A-C|Issue No:002.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-61-300-005 Outer Combustion Chamber Liner - Replace The Spark Igniter Seals, Repair-005 (VRS3093)

Effectivity

FIG/ITEM PART NO.

01-501

2A0550-01

01-501

2A1383

01-501

2A1385

01-501

2A1399

01-501

2A1618

01-501

2A1620

01-501

2A1666

01-501

2A2013

01-501

2A2032

01-501

2A2723-01

01-501

2A2837-01

01-501

2A3345-01

01-501

2A3345-001

01-501

2A3345-002

01-501

2A3345-003

01-501

2A3345-004

01-501

2A3347-01

01-501

2A3347-001

01-501

2A3347-002

01-501

2A3347-003

01-501

2A3347-004

01-501

2A3347-005

01-501

2A3439-01

01-501

2A3439-001

01-501

2A3439-002

01-501

2A3439-003

01-501

2A3439-004

01-501

2A3439-005

01-501

2A3439-006

01-501

2A3439-007

01-501

2A3439-008

01-501

2A3440-01

01-501

2A3440-001

01-501

2A3440-002

01-501

2A3440-003

01-501

2A3440-004

01-501

2A3440-005

01-501

2A3440-006

01-501

2A3440-007

01-501

2A3441-01

01-501

2A3441-001

01-501

2A3441-002

01-501

2A3441-003

01-501

2A3441-004

01-501

2A3441-005

01-501

2A3441-006

01-501

2A3441-007

01-501

2A3441-008

01-501

2A3442-01

01-501

2A3442-001

01-501

2A3442-002

01-501

2A3442-003

01-501

2A3442-004

01-501

2A3442-005

01-501

2A3442-006

01-501

2A3442-007

01-501

2A3442-008

01-501

2A4284-01

01-501

2A4309-01

01-501

2A4312-01

01-501

2A4314-01

01-501

2A4314-001

01-520

2A2711-01

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Spark igniter seal

-

Hastelloy X

General

Price and availability - refer to IAE.

The practices and processes referred to in the procedure by the TASK number are in SPM.

NOTE

Equivalent materials or equipment can be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand GrinderLOCAL

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-197 WELDING FILLER WIRELOCALCoMat 03-197

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
RING - SPARK IGNITER0AM532A0810-042
SEAL - SPARK IGNITER0AM532A03292

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-61-350-067 Remove the Damaged Spark Igniter Seal

    1. Refer to Figure

      2. Use a hand grinder to remove the seal. Grind through the circumferential weld.

      1. Be careful not to grind into the spark igniter guide.

        The new seal must be 0.575 in. - 0.584 in. (14.605 mm - 14.834 mm) in diameter.

        Replace the seal if it is larger than 0.594 in. (15.088 mm) in diameter.

    2. SUBTASK 72-42-61-310-053 Install the Spark Igniter Seal and the Spark Igniter Retaining Ring

    1. Refer to Figure

    2. Install the seal.

      3. Install the retaining ring and tack weld if necessary.

      1. Make sure there is a 0.030 in. (0.762 mm) maximum gap between the seal and the retaining ring after you tack weld.

        Refer to the SPM TASK 70-31-13-310-501.

      4. Complete the circumferential weld of the retaining ring. Use CoMat 03-197 WELDING FILLER WIRE or equivalent.

      1. Make sure the seal can move freely a minimum of 0.060 in. (1.524 mm) in all directions.

    3. SUBTASK 72-42-61-230-052 Examine the Spark Igniter Retaining Ring Weld

      1. Fluorescent penetrant examine the weld for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Repair the weld if it is cracked.

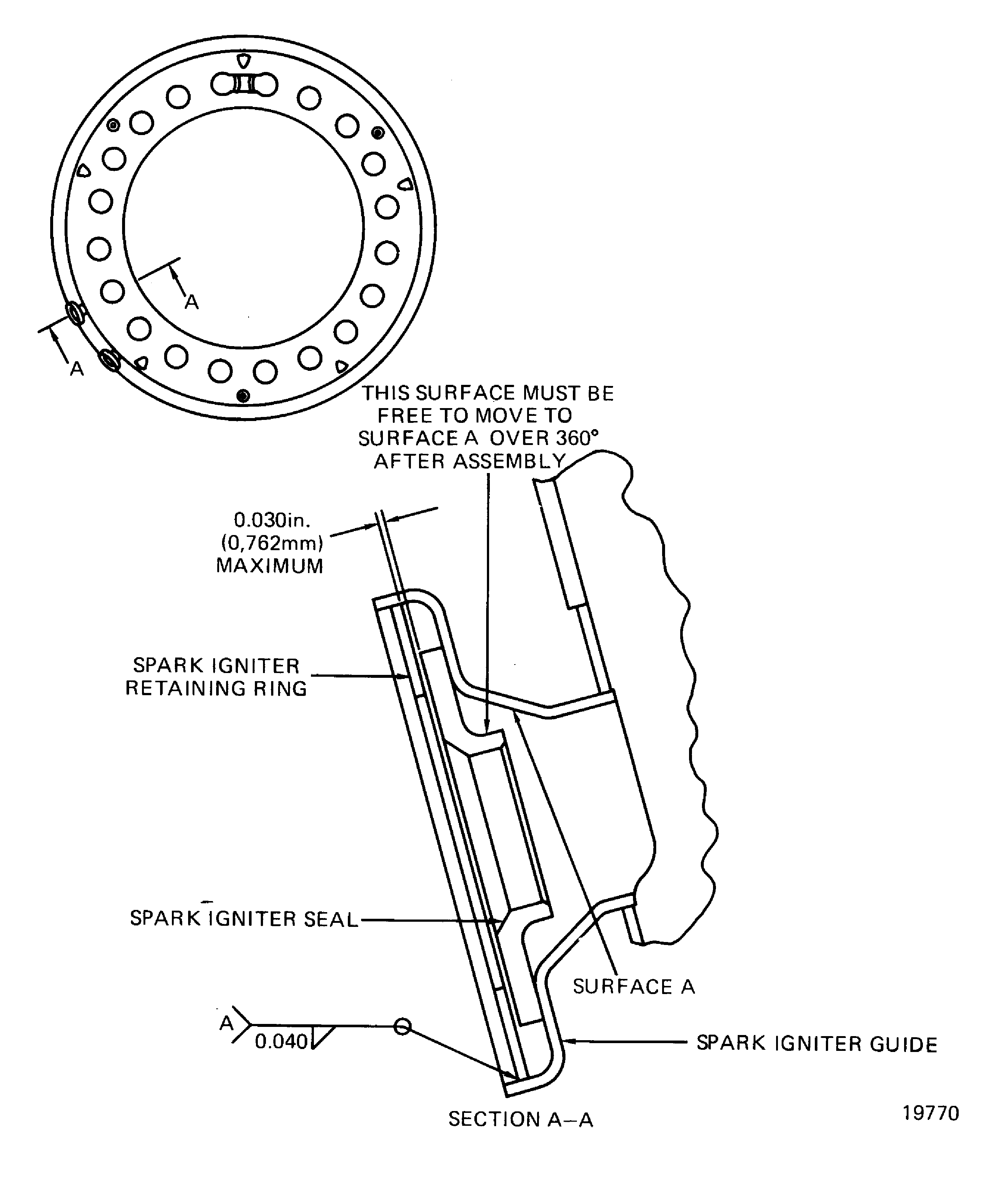

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised effectivity table to add PN 2A2711-01. (19VC112)
