TASK 72-43-20-300-005 No. 4 Bearing Seal Ring Holder - Insert Replacement, Repair-005 (VRS3122)
Material of component
IAE | ||
|---|---|---|
DESCRIPTION SYMBOL MATERIAL | ||
No. 4 bearing seal ring holder | Housing aluminium alloy | |
Pin | Stainless steel | |
General
Price and availability - none
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Removal tool | LOCAL | 1227-6 | (helicoil products) | |
| Tang removal tool | LOCAL | 3692-5 | (helicoil products) | |
| Installation Tool | LOCAL | 7552-5 | (helicoil products) |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Screw thread insert | MS21209-F5-10 | 4 |
Safety Requirements
NONEProcedure
Refer to: Figure
Refer to Figure and the SPM TASK 70-35-08-300-501. Use the PN 1227-6 removal tool.
Remove damaged or loose inserts (up to four locations).
SUBTASK 72-43-20-350-058 Remove Damaged or Loose Inserts from the No. 4 Bearing Seal Ring Holder Assembly
Refer to: Figure
Refer to Figure and the SPM TASK 70-35-08-300-501. Use the PN 7552-5 installation tool and the PN 3692-5 tang removal tool.
Install the new inserts and break off tangs. (Up to four locations).
SUBTASK 72-43-20-350-059 Install Replacement Inserts to the No. 4 Bearing Seal Ring Holder Assembly

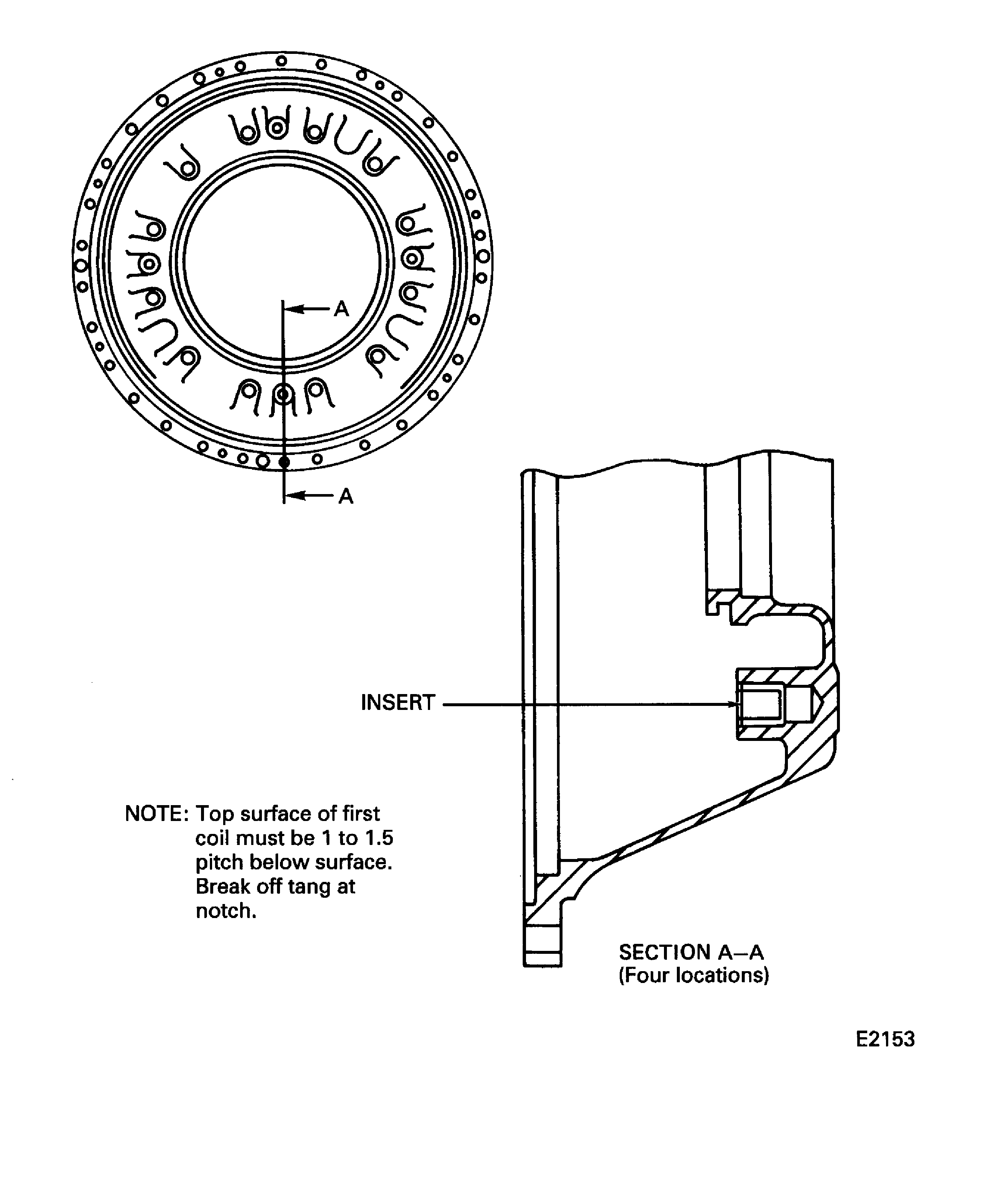

Figure: No. 4 bearing seal ring holder assembly insert replacement
No. 4 bearing seal ring holder assembly insert replacement
