TASK 72-44-10-300-006 HPT Stage 1 Support Assembly - Unplug The Metering Holes, Repair-006 (VRS3460)
General
Price and availability - refer to IAE
NOTE
You must remove the stage 1 HPT seal from the stage 1 HPT support assembly to do this repair. Refer to TASK 72-44-10-040-001 (DISASSEMBLY-001)
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Mechanical probe | LOCAL | Mechanical probe |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use a mechanical probe with the appropriate diameter to unplug the metering holes.
Unplug the metering holes.
SUBTASK 72-44-10-350-055 Unplug the Metering Holes
Refer to Figure and TASK 72-44-10-200-000 (INSPECTION-000).
Inspect the metering holes after you unplug them.
SUBTASK 72-44-10-220-096 Examine the Repair

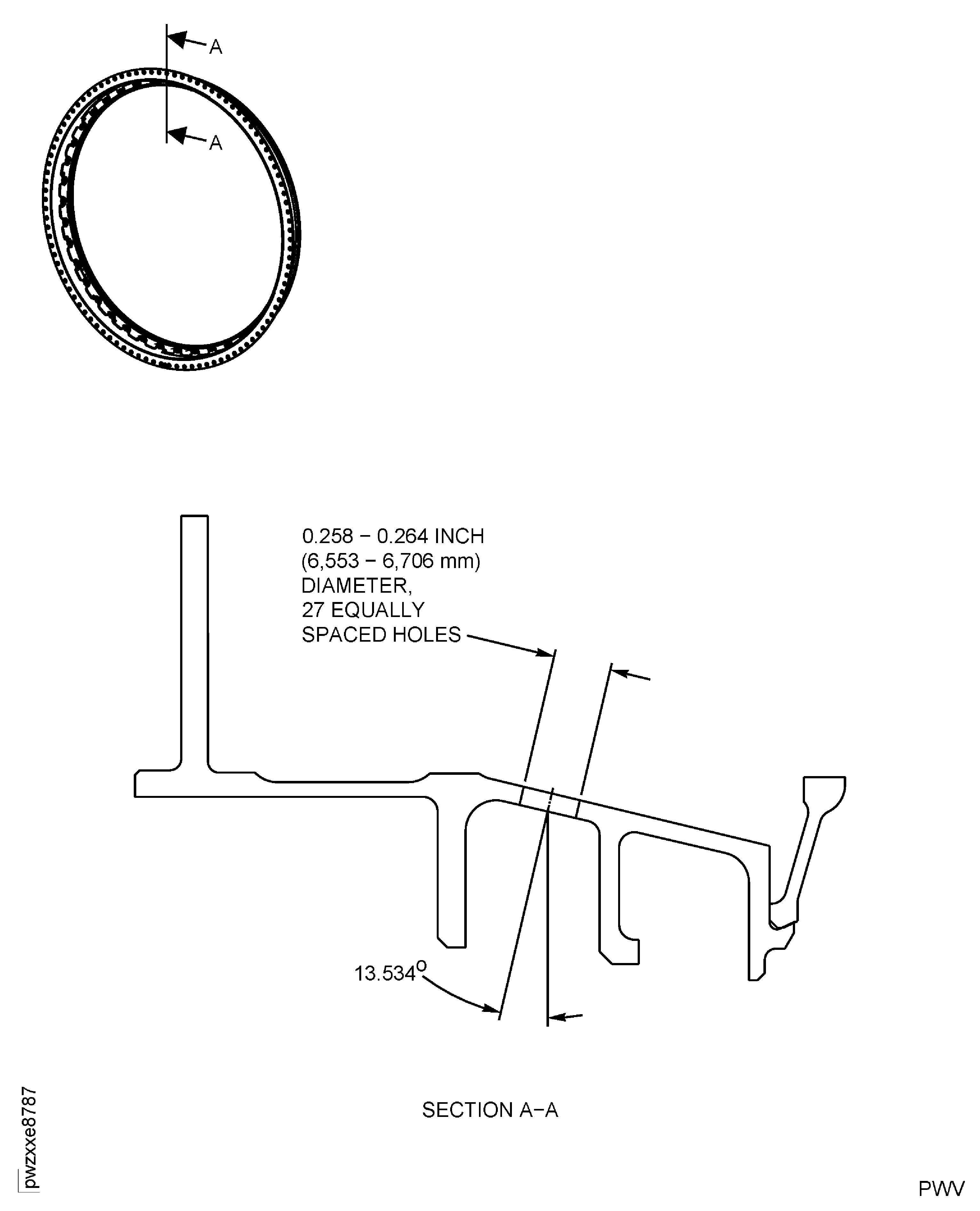

Figure: Repair Details and Dimensions (PN2A1292 and 2A1358)
Sheet 1

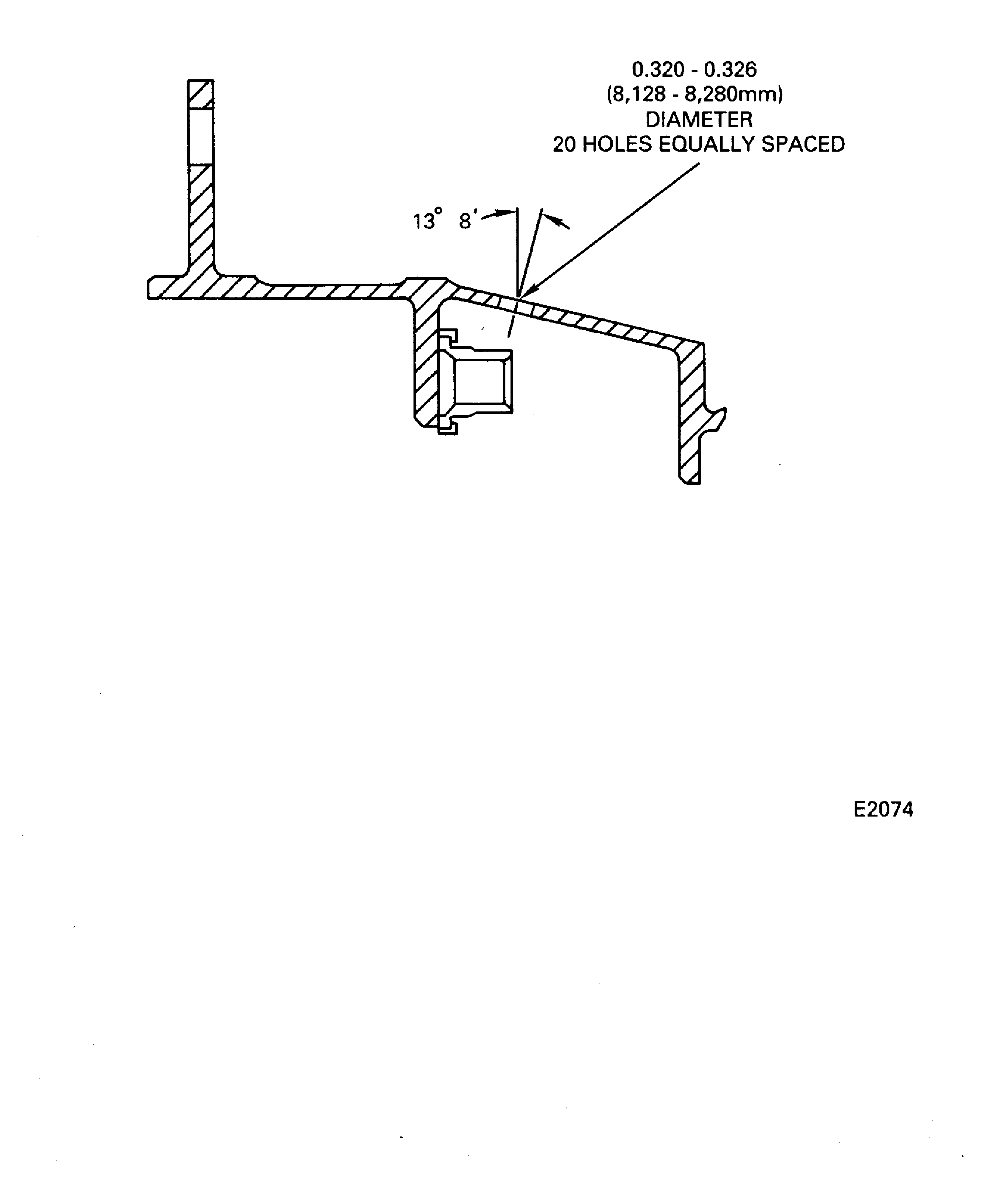

Figure: Repair Details and Dimensions (PN2A1664 and 2A2703)
Sheet 2

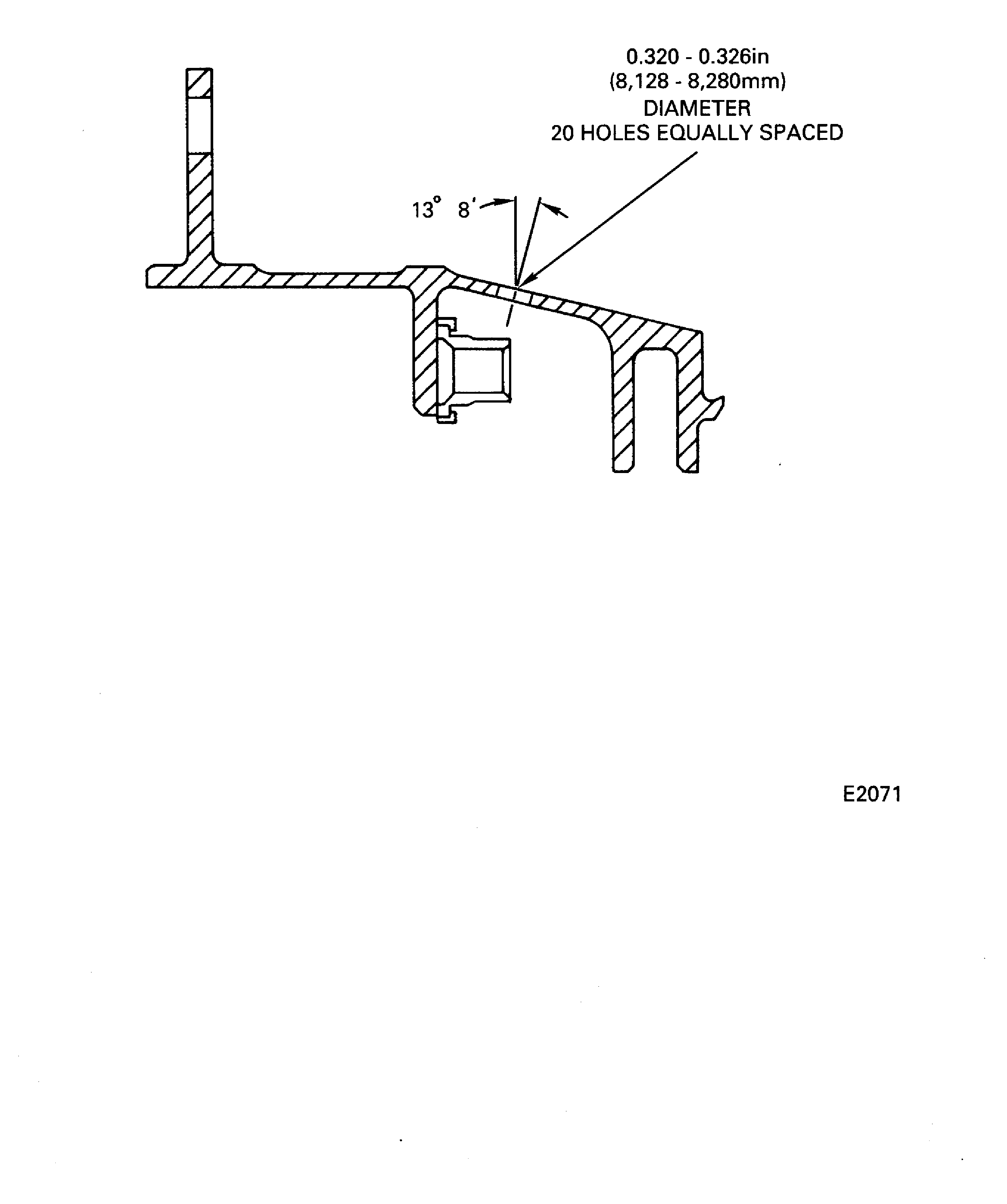

Figure: Repair Details and Dimensions (PN2A2703)
Sheet 3

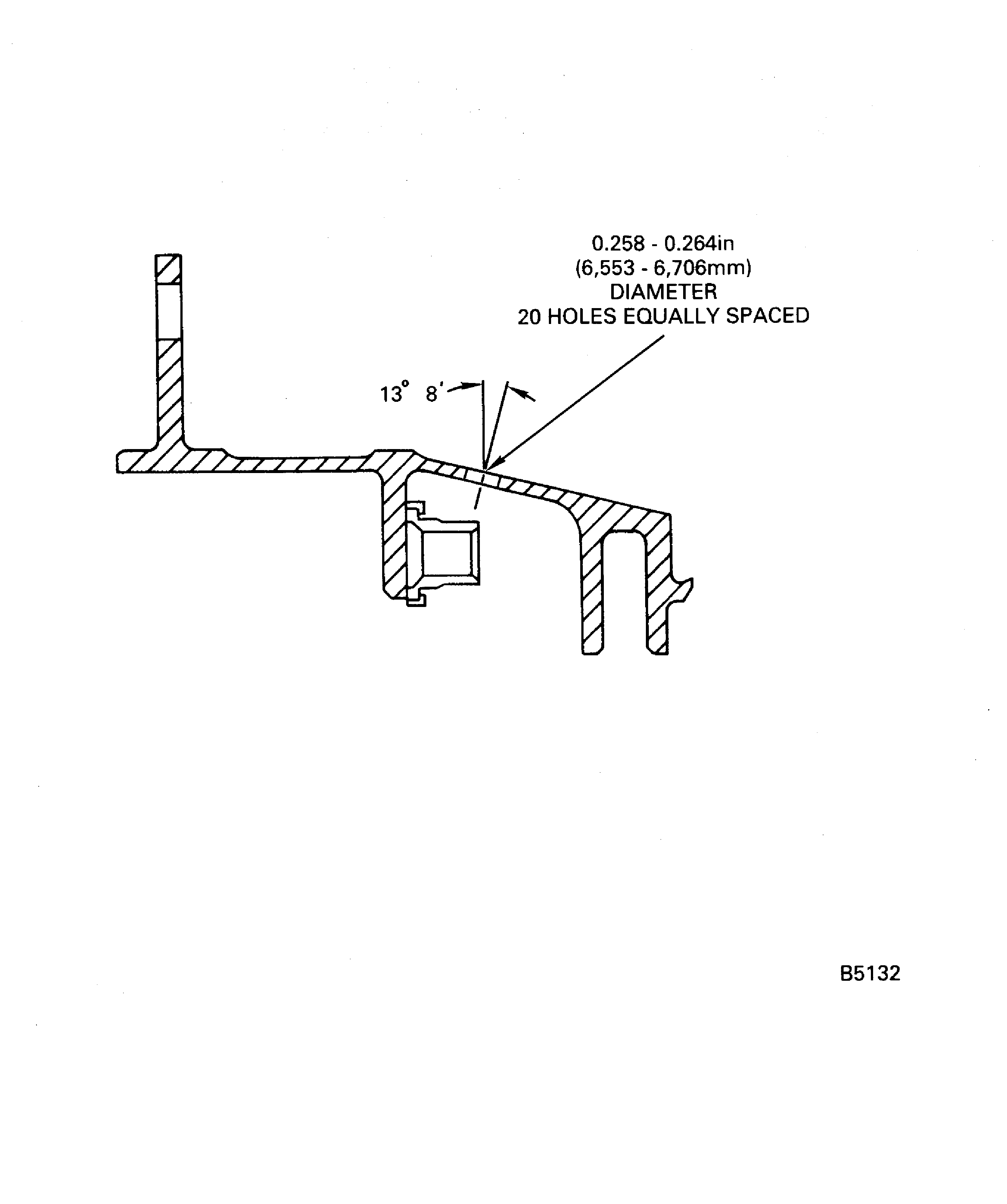

Figure: Repair Details and Dimensions (PN2A2085)
Sheet 4
