TASK 72-45-21-300-002 HPT Case - Replace The Self Locking Clinch Nut, Repair-002 (VRS1476)

DMC:V2500-A0-72-45-2101-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-21-300-002 HPT Case - Replace The Self Locking Clinch Nut, Repair-002 (VRS1476)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0250

01-010

2A0250SL87VA156

01-010

2A1591

01-010

2A1591SL87VA156

01-010

2A1600

01-010

2A1600SL114902

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Turbine case assembly

Inconel 718

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to TASK 72-45-21-100-000.

NOTE

Other consumable materials are given in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3J13503 Squeezer0AM53IAE 3J135031

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Nut, clinch1A389319

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-21-120-052 Remove the Scale and Rust (01-010)

      1. Remove the scale and rust.

    2. SUBTASK 72-45-21-350-053 Remove Damaged Clinch Nut

    1. Refer to: Figure

      2. Drill and remove flare of clinch nut until the flare twists.

      1. Use a 0.3125in. (7.94 mm) diameter drill.

      3. Remove clinch nut.

      1. Use a mallet and a punch.

      4. Remove sharp edges around nut location hole.

      5. Clean the nut location hole.

      1. Use a soft clean cloth and air blast.

    3. SUBTASK 72-45-21-220-051 Examine the Nut Location Hole (01-010)

      1. Visually examine the nut location hole.

      1. Use a X10 magnifying glass.

        If crack is seen, reject it.

    4. SUBTASK 72-45-21-350-054 Install New Clinch Nut (01-010)

    1. Refer to: Figure

    2. Fit new clinch nut into the location hole.

      NOTE

      Make sure that clinch nut is installed correctly.

      3. Hold the clinch nut in position and make flare.

      1. NOTE

        Make sure that clinch nut is installed satisfactorily.

    5. SUBTASK 72-45-21-220-052 Examine the Installed Clinch Nut (01-010)

      1. Examine the flare of clinch nut for cracks.

      1. Use a X10 magnifying glass.

      2. Examine the clinch nut and surrounding area for cracks.

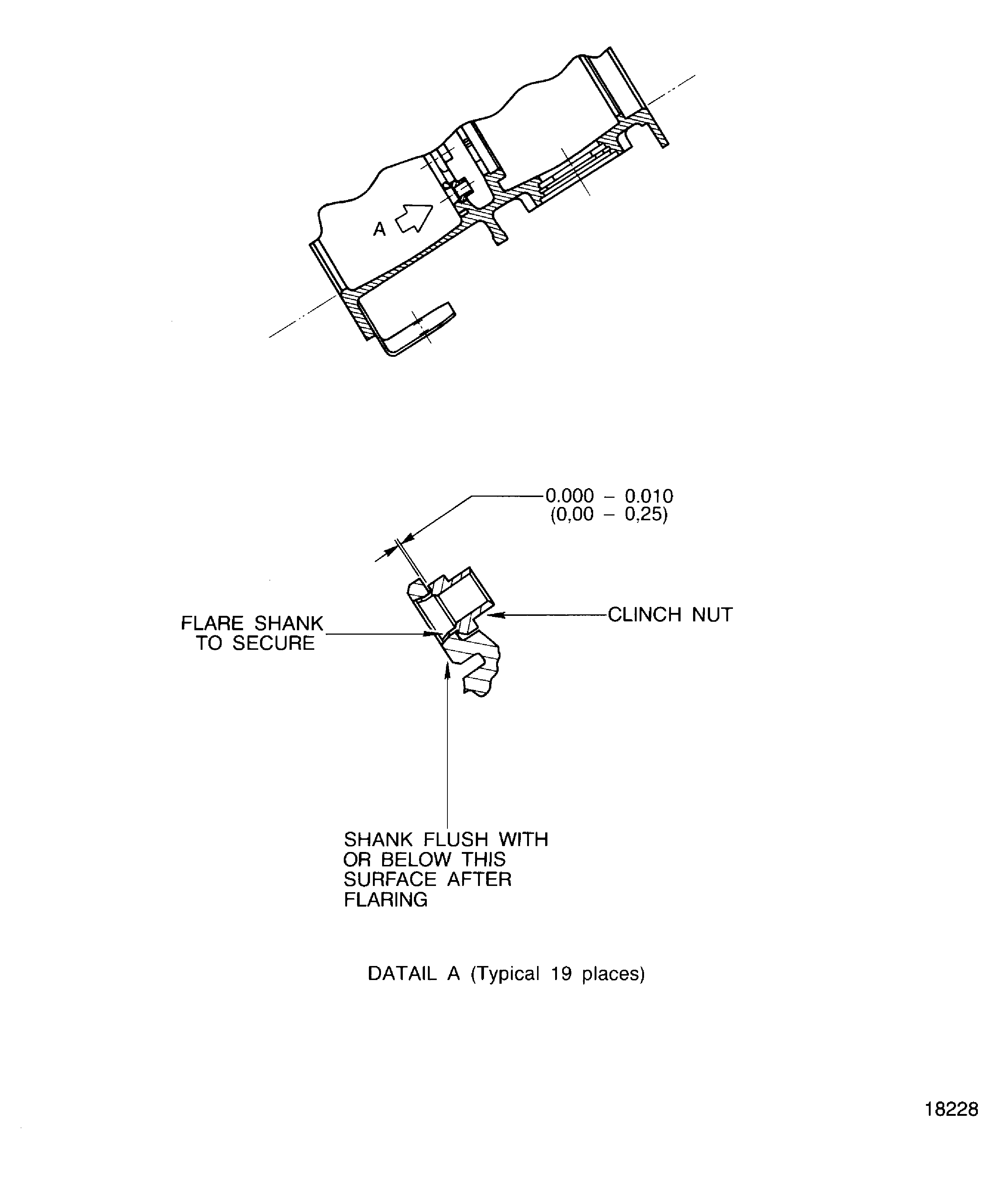

    6. Figure: Location of the turbine case assembly

    Location of the turbine case assembly

Requirements After Job Completion

Follow-On Conditions

NONE
