Common Information
TASK 72-45-26-300-002 HPT Stage 2 Duct Support - Replace The Shoulder Pin, Repair-002 (VRS3252)
Material of component
PART IDENT | SYMBOL | MATERIAL |
|---|---|---|
Stage 2 HPT duct support | - | Nickel alloy |
Shoulder pin | - | Stainless steel |
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability - none
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| IAE 3P16274 Pin driver | 0AM53 | IAE 3P16274 | 1 | |
| IAE 3P16275 Support block | 0AM53 | IAE 3P16275 | 1 |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Shoulder pin | 2A0981 (for | AR | ||
| Shoulder pin | 2A0981CL1 | AR | ||
| Shoulder pin | 2A0981CL2 | AR | ||
| Shoulder pin | 2A0981CL3 | AR | ||
| Shoulder pin | 2A0981CL4 | AR | ||
| Shoulder pin | 2A0981P3 | AR | ||
| Shoulder pin | 2A0981P5 | AR | ||
| Shoulder pin | 2A1268 (for | AR | ||
| Shoulder pin | 2A1268CL1 | AR | ||
| Shoulder pin | 2A1268CL2 | AR | ||
| Shoulder pin | 2A1268CL3 | AR | ||
| Shoulder pin | 2A1268CL4 | AR | ||
| Shoulder pin | 2A1268P3 | AR | ||
| Shoulder pin | 2A1268P5 | AR |
Safety Requirements
NONEProcedure
Basic and class dimensions for PN 2A0981 and 2A1268 shoulder pins are as follows:
Basic - 0.1088 in. (2.764 mm)
CL1 - 0.1085 to 1090 in. (2.756 to 2.769 mm)
CL2 - 0.1090 to 1095 in. (2.769 to 2.781 mm)
CL3 - 0.1095 to 1100 in. (2.781 to 2.794 mm)
CL4 - 0.1100 to 1105 in. (2.794 to 2.807 mm)
P3 - 0.1115 to 1120 in. (2.832 to 2.845 mm)
P5 - 0.1135 to 1140 in. (2.883 to 2.896 mm)
Use IAE IAE 3P16274 Pin driver 1 off and IAE IAE 3P16275 Support block 1 off.
Install the replacement pin(s).
SUBTASK 72-45-26-350-054 Install New Shoulder Pin(s)
Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.
Use the vibration peen method.
Make a mark VRS3252 adjacent to the part number.
SUBTASK 72-45-26-350-055 Identify the Repair

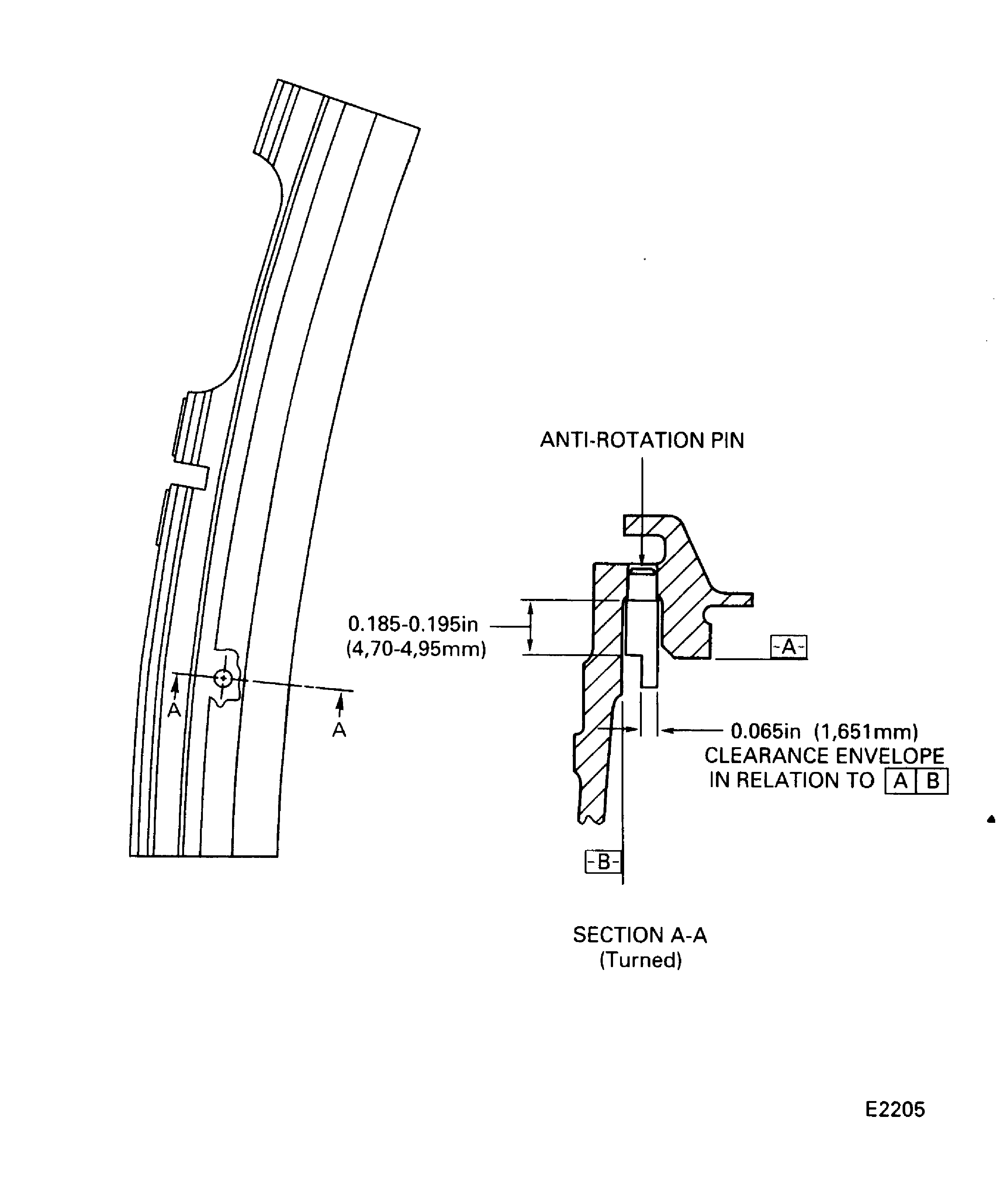

Figure: Stage 2 HPT duct support (PN 2A0189, PN 2A1653 and PN 2A2270) shoulder pin replacement
Stage 2 HPT duct support (PN 2A0189, PN 2A1653 and PN 2A2270) shoulder pin replacement

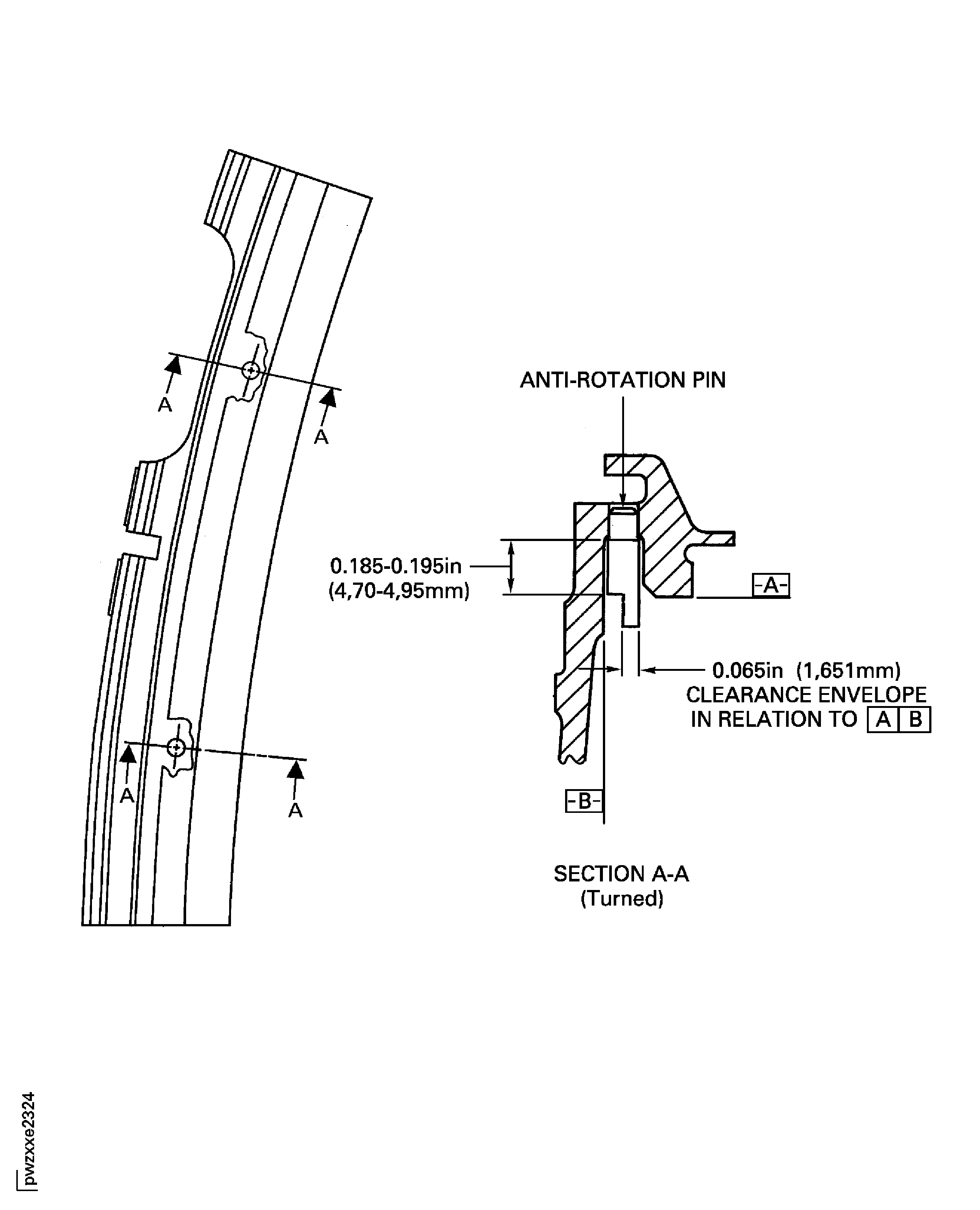

Figure: Stage 2 HPT duct support (PN 2A3407 and PN 2A3408) shoulder pin replacement
Stage 2 HPT duct support (PN 2A3407 and PN 2A3408) shoulder pin replacement
