TASK 72-45-32-300-006 HPT Stage 2 Blade - Blend Repair On The Platform, Repair-006 (VRS3409)

DMC:V2500-A0-72-45-3201-01A-649A-C|Issue No:002.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-32-300-006 HPT Stage 2 Blade - Blend Repair On The Platform, Repair-006 (VRS3409)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0402

01-010

2A0402-001

01-010

2A1102

01-010

2A1102-001

01-010

2A1102-002

01-010

2A2202

01-010

2A2202-001

01-010

2A2202-002

01-010

2A2202-003

01-010

2A2702

01-010

2A2702-001

01-010

2A4422

01-010

2A4722

01-010

2A4822

01-010

2A8602

01-010

2A8702

01-010

2A8902

01-010

2A9002

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 2 HP turbine blade assembly

-

Wrought non-hardening nickel base alloy

General

The blade assembly blend limits are looked at by the serviceable structure of the blade. If you have many repaired blades in the same turbine assembly at or near the maximum repair limits or that have repair areas, they can effect the turbine efficiency and engine performance.

Price and availability - refer to IAE

The practices and processes referred to in this procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fine fileLOCALFine file
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-32-350-056 Blend the Trailing Edge Platform Rub on the Stage 2 HP Turbine Blade Assembly

    1. Refer to Figure.

      2. Do the procedure in the SPM TASK 70-35-21-350-501 to blend the trailing edge platform rub on the blade.

      1. All blends must have smooth bottoms with smooth edges.

      2. Sharp edges are not permitted.

      3. The minimum blend length to depth is 10 to 1.

      4. The maximum depth of the blend is 0.025 in. (0.64 mm) or 25 percent of the local platform thickness, whichever is less.

    2. SUBTASK 72-45-32-350-057 Identify the Repair

      1. Mark VRS3409 on the blade adjacent to the part number, if necessary.

      1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

      2. If VRS3409 is marked on the part, it is not necessary to mark the part again.

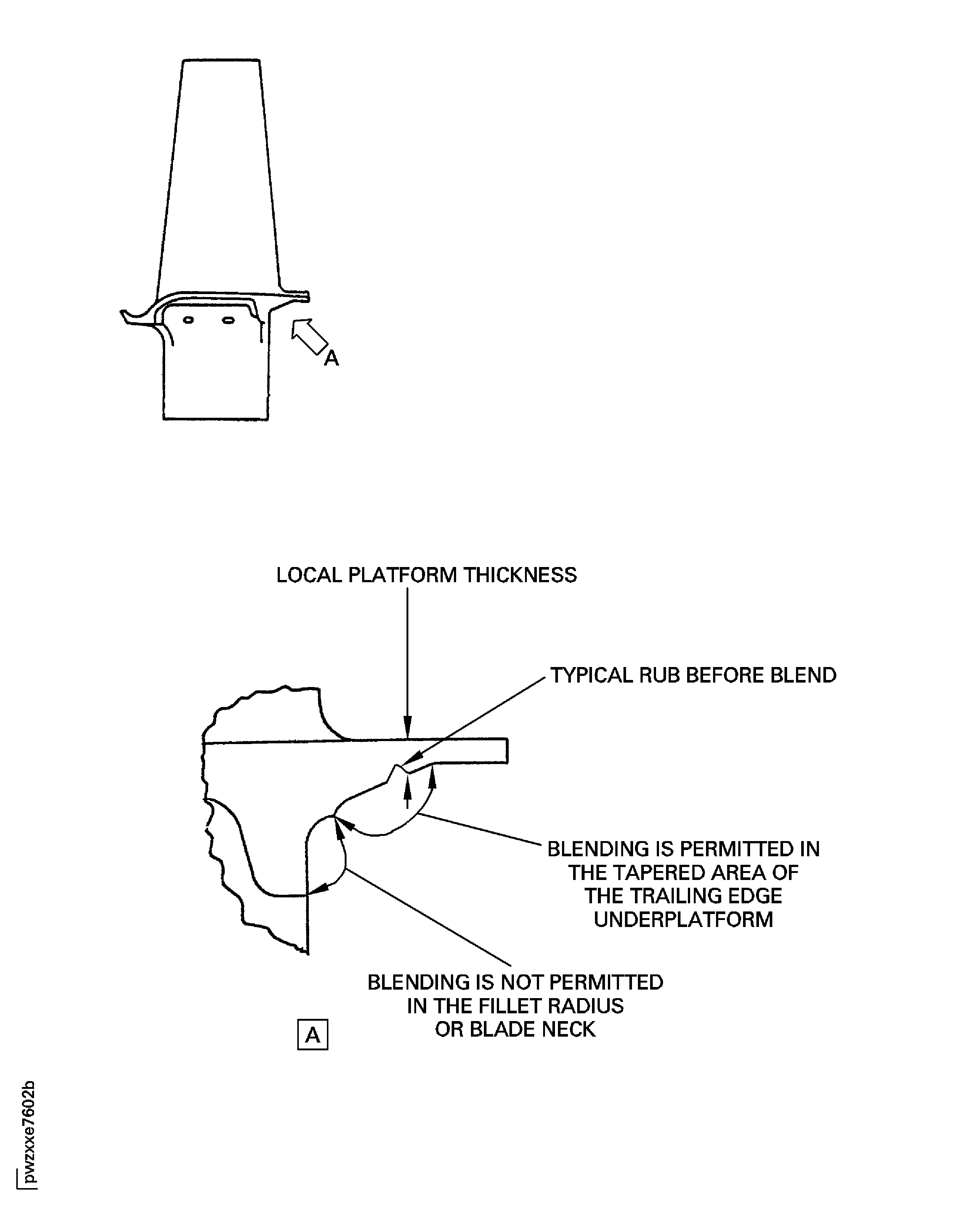

    3. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added PN 2A4722 and 2A4822. (17VC501)

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:LOCAL
Tool Number:Workshop inspection equipment
Tool Name:Workshop inspection equipment
