TASK 72-50-10-430-003 LPT Case And Rotor Assembly - Assemble The LPT Stage 4 Stator Vanes To The LPT, Assembly-003

DMC:V2500-A0-72-50-1000-03A-710A-B|Issue No:002.00|Issue Date:2017-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-10-430-003 LPT Case And Rotor Assembly - Assemble The LPT Stage 4 Stator Vanes To The LPT, Assembly-003

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-44-01-400-501.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to TASK 70-63-02-400-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to TASK 72-50-00-990-501 (DESCRIPTION AND OPERATION-001) for a sectional view of the LP turbine module.

The abbreviation Intf shows an interference or tight fit. This cause REJECT IF MORE THAN to become REJECT IF LESS THAN. The abbreviation Clear shows a clearance fit.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1M14010 Assembly/Disassembly fixture0AM53IAE 1M140101
IAE 1M14041 Tilting plate0AM53IAE 1M140411
IAE 1M14056 Lifting shaft0AM53IAE 1M140561
IAE 1M14063 Guide fixture0AM53IAE 1M140631
IAE 1M14070 Mounting plate0AM53IAE 1M140701
IAE 1M14071 Lifting fixture0AM53IAE 1M140711
IAE 1M14119 Protector ring segment0AM53IAE 1M141193
IAE 1M14123 Locating fixture0AM53IAE 1M141231
IAE 1M14145 Locating fixture0AM53IAE 1M141451

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-038 AIR DRYING ENAMELK3504CoMat 07-038
CoMat 10-062 ASSEMBLY FLUID0AM53CoMat 10-062
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-10-430-079 Move the Lifting Ring of the Assembly/Disassembly Fixture

    1. Move the lifting ring of the IAE 1M14010 Assembly/Disassembly fixture 1 off from the zero position into the lifting position with the lever.

    2. SUBTASK 72-50-10-430-080-A00 V2500-A1: Install the Stage 4 Front Heatshield

    1. Refer to: Figure

    2. Install the stage 4 front heatshield into the LP turbine case.

    3. SUBTASK 72-50-10-430-080-B00 V2500-A5: Install the Stage 4 Front Heatshields

    1. Refer to: Figure and Figure

    2. Install the four stage 4 front heatshields in a clockwise direction into the LP turbine case. Start in the top position.

    4. SUBTASK 72-50-10-430-081 Prepare the Stage 4 Vanes for Assembly

    1. Refer to Figure.

    2. Check each stage 4 vane segment for total number of "+" markings on the part.

      NOTE

      The total number of vane segments which show each two "+" markings is limited to five parts per LPT module assembly. Make sure that not more than five vane segments each marked with two "+" symbols are installed per LPT module assembly.

    3. NOTE

      Make sure that all strip seals are correctly installed in the grooves of the stage 4 vane segments.

      Install the three strip seals in the grooves on the right inner and outer platforms of the vane segment number one. Use CoMat 10-062 ASSEMBLY FLUID.

    4. Put the vane segments on to the IAE 1M14070 Mounting plate 1 off. Engage the outer front groove of the vane segment with the annular flange of the mounting plate.

    5. SUBTASK 72-50-10-430-082 Install the Lifting Fixture to the Stage 4 Vane Assembly

    1. Refer to Figure and Figure.

    2. Use hoist equipment.

    3. Lift the IAE 1M14071 Lifting fixture 1 off above the stage 4 vane assembly.

      4. Install the lifting fixture as follows:

      1. Lower the lifting fixture carefully on to the stage 4 vane assembly. Put the lifting fixture in the center. Make sure that the lifting fixture correctly touches the inner and outer shrouds of the stator.

      2. CAUTION

        MAKE SURE THAT EACH TAIL OF THE HOOKS IS ATTACHED CORRECTLY TO THE STAGE 4 VANES. IF NOT THE PARTS CAN BE DAMAGED. THE HOOKS CAN BE SEEN THROUGH THE APERTURE OF THE LIFTING FIXTURE.

        Turn the lifting fixture to engage the hooks through the vane clusters. The hooks must engage through the second and third vane of the vane cluster.

    5. Push the 15 hooks down. Turn the hooks by 90 degrees so that they engage the front edges of the second vanes segment airfoils.

    6. Attach the hooks with the knurled knobs. Tighten the knobs.

    6. SUBTASK 72-50-10-430-237 Install the Protector Ring Segments

    1. Refer to: Figure

    2. Install the IAE 1M14119 Protector ring segment 3 off on to the stage 3 blade roots.

    7. SUBTASK 72-50-10-430-083 Install the Stage 4 Vane Assembly into the LP Turbine Case

    1. Refer to: Figure

      NOTE

      Make sure that not more than five vane segments each marked with two "+" symbols are installed per LPT module assembly.

    2. Install the stage 4 vane assembly with the lifting fixture 1 off into the LP turbine case.

    3. Make sure that the outer front locating dogs of the stage 4 vanes engage with the mating slots of the LP turbine case.

    4. Remove the lifting fixture.

    8. SUBTASK 72-50-10-430-085 Install the Lifting Shaft into the Guide Fixture

    1. Refer to Figure.

    2. Install the IAE 1M14056 Lifting shaft 1 off into the IAE 1M14063 Guide fixture 1 off.

    3. Attach the bushing, part of the IAE 1M14056 Lifting shaft 1 off, with the three head capscrews on to the guide fixture. Tighten the screws.

    9. SUBTASK 72-50-10-430-086 Install the Tilting Plate on to the Lifting Shaft

    1. Refer to: Figure

    2. Install the IAE 1M14041 Tilting plate 1 off on to the lifting shaft.

    10. SUBTASK 72-50-10-430-087 Install the Stage 4 Vane Assembly into the Case Slots

    1. Refer to Figure.

    2. Carefully fill the bicycle tube, part of the tilting plate, with pressured air.

    3. Carefully lift the vane assembly with the lifting shaft until the vanes move into the case slots. Use a square spanner. Make sure that the stage 4 vanes are correctly installed in the LP turbine case slots.

    11. SUBTASK 72-50-10-430-084 V2500-A5: Install the Stage 4 Segment Seals

    1. Refer to Figure and Figure.

    2. Install the four stage 4 segment seals in clockwise direction into the LP turbine case.

    3. Make sure that the upper segment seal is 1.5 degrees left from the Top position, refer to Figure.

    12. SUBTASK 72-50-10-430-088-A00 V2500-A1: Install the Stage 4 Rear Heatshield

    1. Refer to: Figure

    2. Install the stage 4 rear heatshield into the LP turbine case.

    13. SUBTASK 72-50-10-430-088-B00 V2500-A5: Install the Stage 4 Rear Heatshields

    1. Refer to: Figure and Figure

    2. Install the four stage 4 rear heatshields in a clockwise direction into the LP turbine case.

    3. Make sure that the upper heatshield is 4 degrees left from the Top position, refer to Figure.

    14. SUBTASK 72-50-10-430-089 Install the Stage 4 Shroud Seal Segments

    1. Refer to: Figure

    2. Install the 31 shroud seal segments into the LP turbine case.

    15. SUBTASK 72-50-10-430-090-A00 V2500-A1: Align the Stage 4 Shroud Seal Segments with the Locating Fixture

      NOTE

      When you align the shroud seal segments, the locating fixture must be positioned over two seal segments.

    1. Refer to: Figure

    2. Put the front groove of the IAE 1M14123 Locating fixture 1 off over the rear locating dogs of the stage 4 shroud seal segments.

    3. Bring the locating dogs of the locating fixture in line with the grooves of the LP turbine case.

    16. SUBTASK 72-50-10-430-090-B00 V2500-A5: Align the Stage 4 Shroud Seal Segments with the Locating Fixture

      NOTE

      When you align the shroud seal segments, the locating fixture must be positioned over two seal segments.

    1. Refer to: Figure

    2. Put the front groove on the IAE 1M14145 Locating fixture 1 off over the rear locating dogs of the stage 4 shroud seal segments.

    3. Bring the locating dogs of the locating fixture in line with the grooves of the LP turbine case.

    17. SUBTASK 72-50-10-430-091 Remove the Tilting Plate and the Lifting Shaft

    1. Refer to: Figure

    2. Release the pressure of the bicycle tube on the tilting plate.

    3. Remove the tilting plate.

    4. Loosen and remove the three head capscrews which attach the bushing to the guide fixture.

    5. Install the three screws into the threaded holes of the bushing.

    6. Remove the lifting shaft from the guide fixture.

    18. SUBTASK 72-50-10-430-238 Remove the Protector Ring Segments

    1. Refer to: Figure

    2. Remove the three protector ring segments.

    19. SUBTASK 72-50-10-430-314 Move the Lifting Ring

    1. Move the lifting ring of the IAE 1M14010 Assembly/Disassembly fixture from the "lifting-position" in the "zero-position" with the use of the lever.

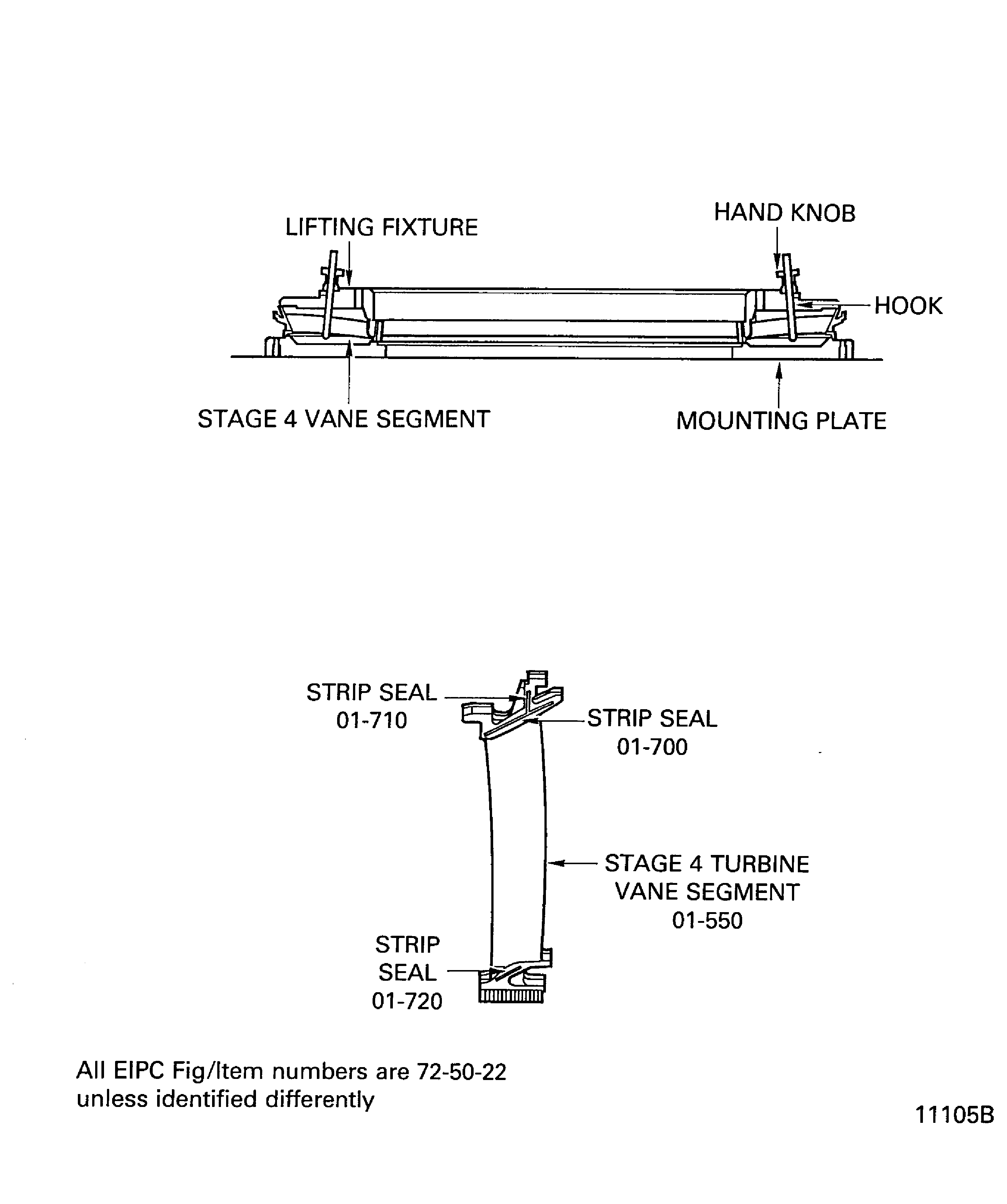

    20. Figure: Prepare the Stage 4 Vane Assembly for Assembly

    Prepare the Stage 4 Vane Assembly for Assembly

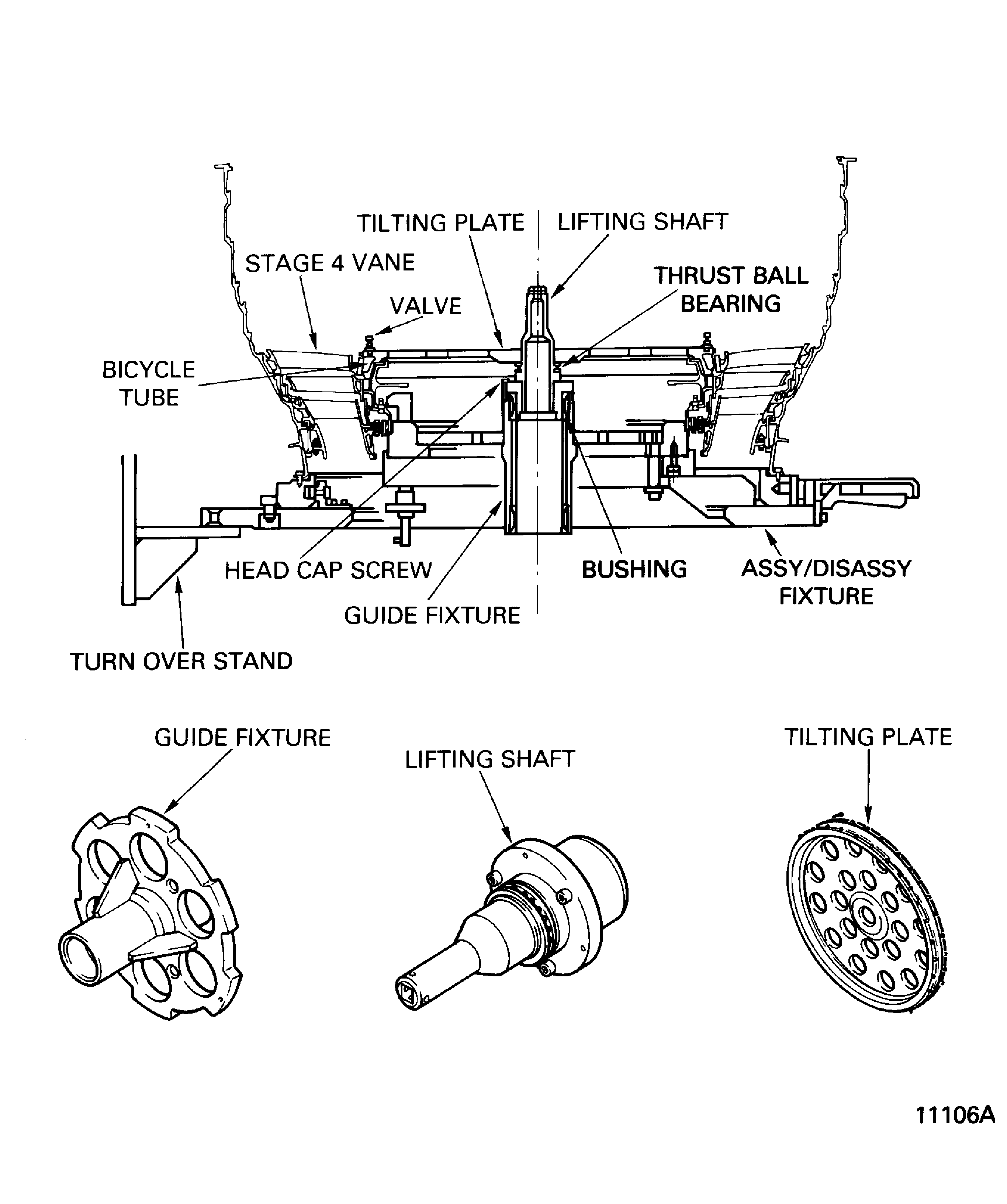

    Figure: Install the Stage 4 Vane Assembly in to the LP Turbine Case Slots

    Install the Stage 4 Vane Assembly in to the LP Turbine Case Slots

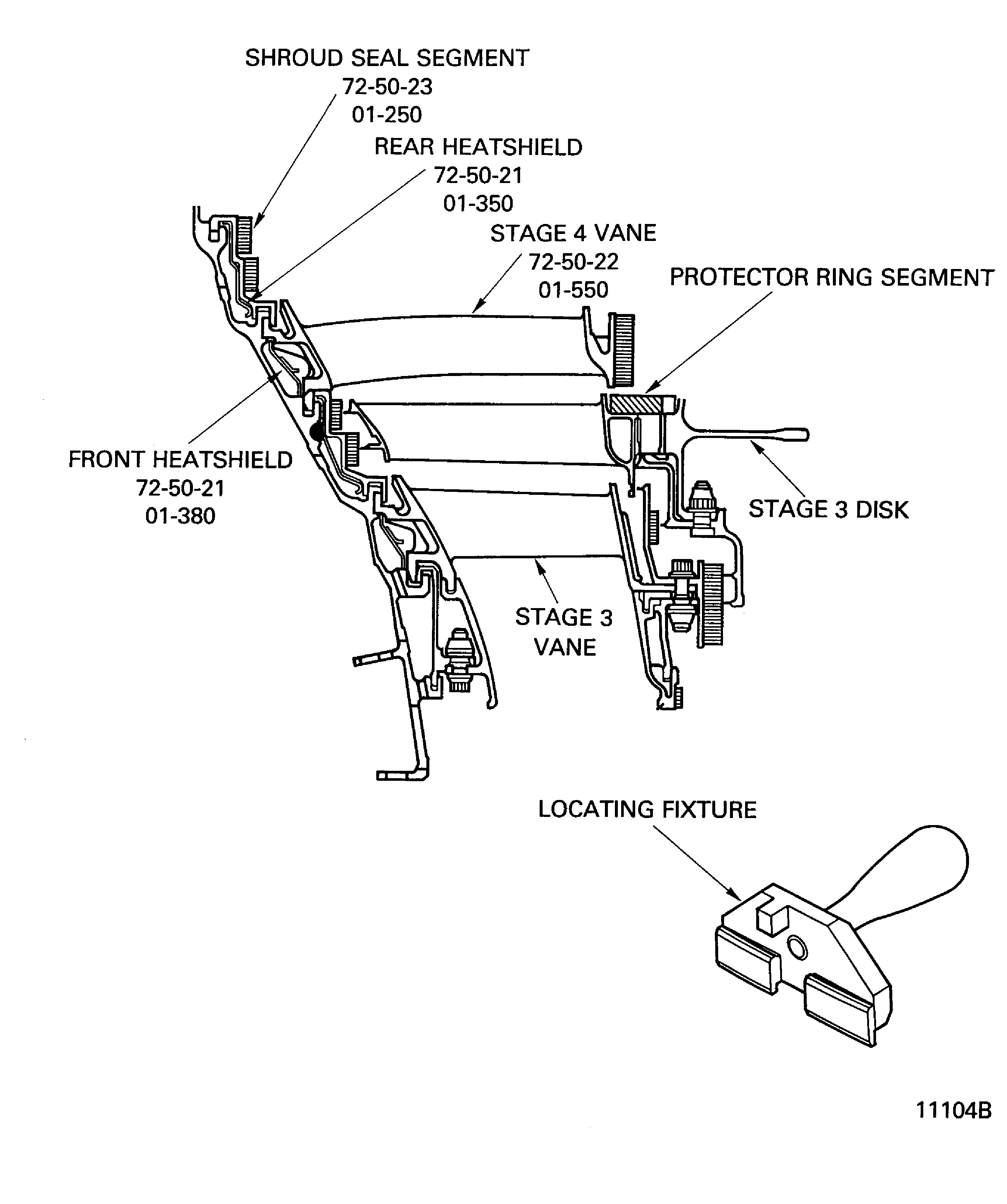

    Figure: V2500-A1: Stage 4 Vane Assembly

    V2500-A1: Stage 4 Vane Assembly

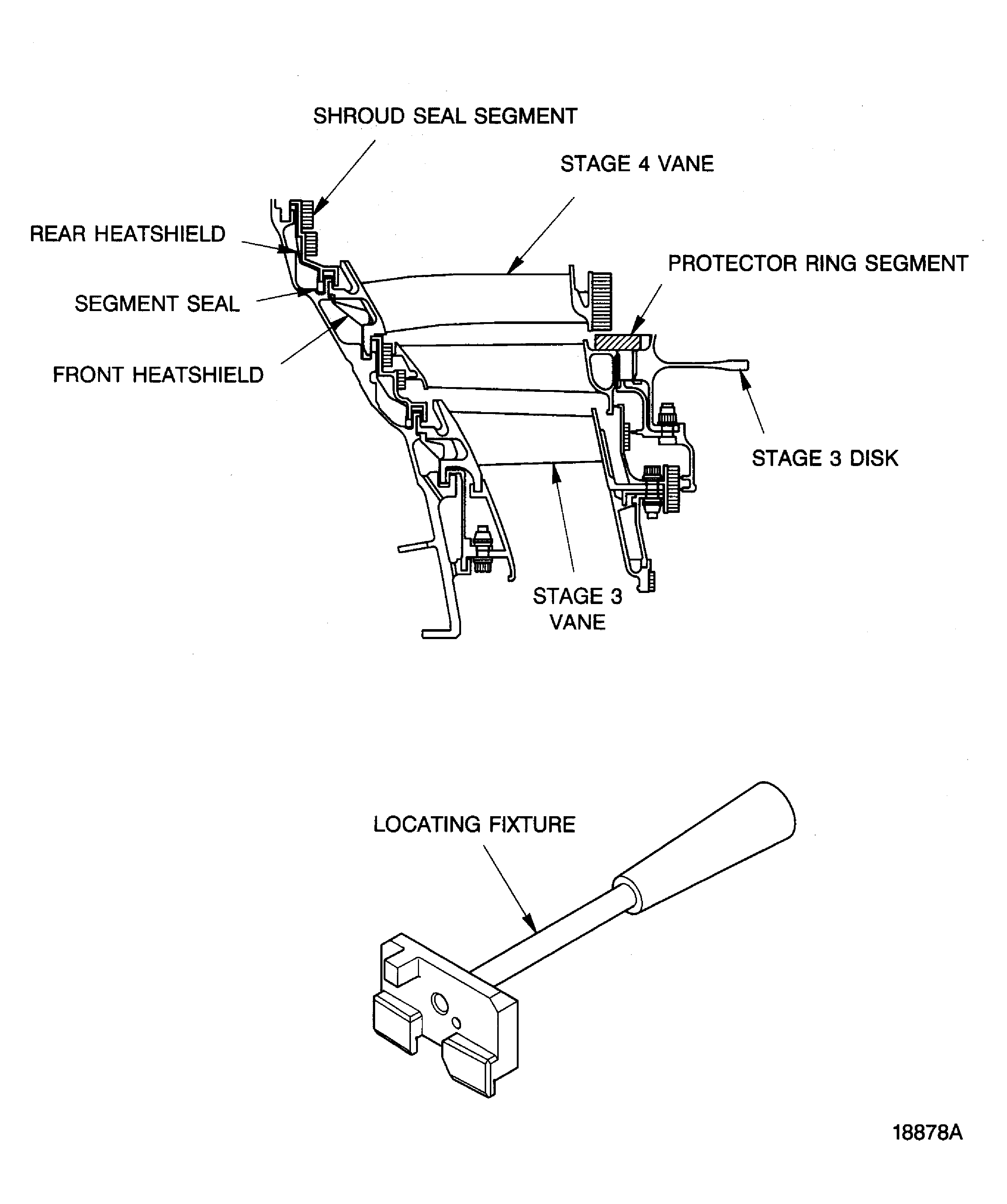

    Figure: V2500-A5: Stage 4 Vane Assembly

    V2500-A5: Stage 4 Vane Assembly

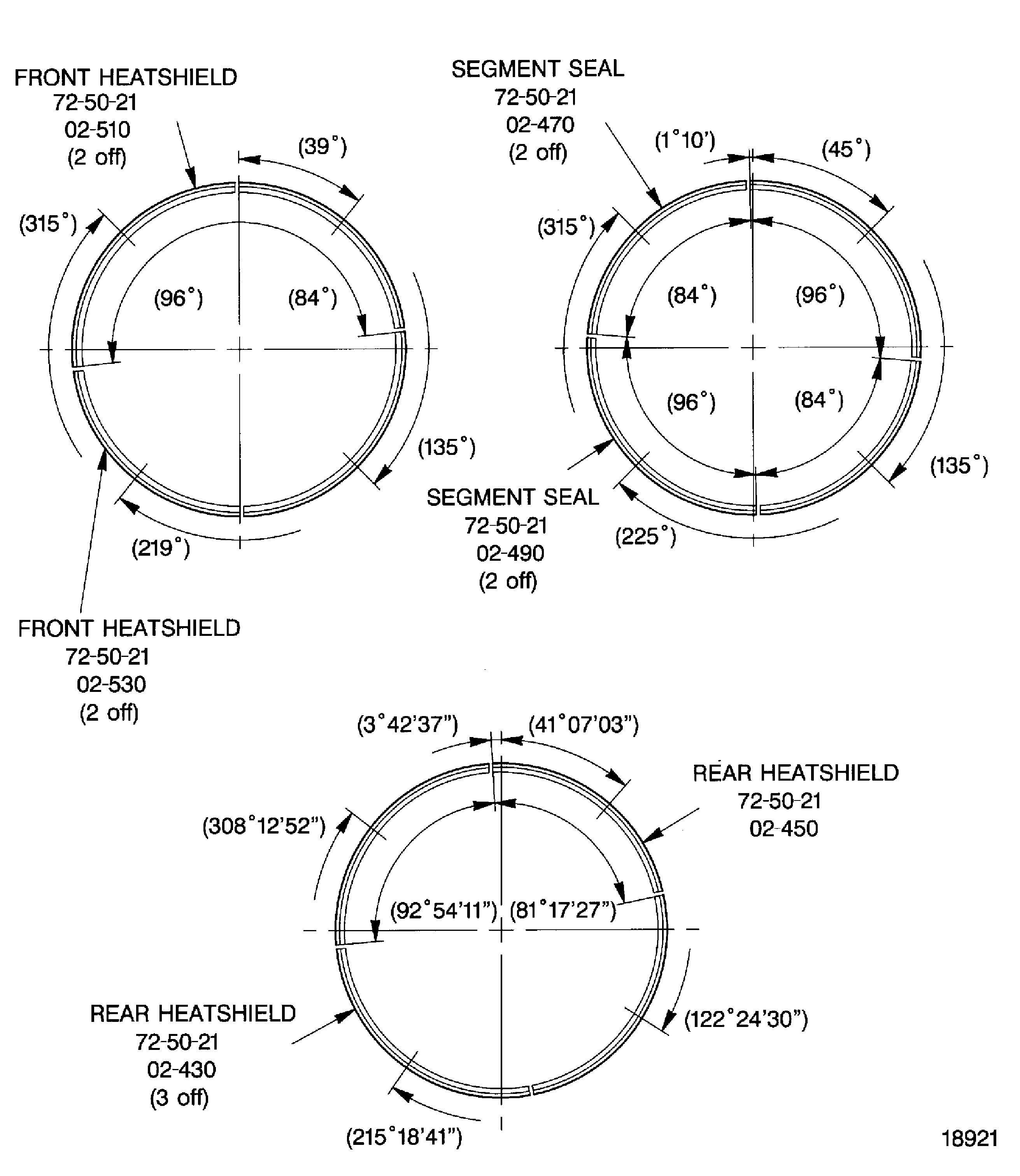

    Figure: V2500-A5: Install the Stage 4 Front Heatshields, Segment Seals and the Rear Heatshields

    V2500-A5: Install the Stage 4 Front Heatshields, Segment Seals and the Rear Heatshields

    Figure: Correct Installation of the Hooks of the Lifting Fixture

    Correct Installation of the Hooks of the Lifting Fixture
