TASK 72-50-10-430-007 LPT Case And Rotor Assembly - Assemble The LPT Stage 6 Stator Vanes To The LPT, Assembly-007
General
Fig/item numbers in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.
To identify, lubricate and install seal rings, refer to the SPM TASK 70-44-01-400-501.
After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to the SPM TASK 70-63-02-380-501.
The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.
Refer to TASK 72-50-00-990-501 (DESCRIPTION AND OPERATION-001) for a sectional view of the LP turbine module.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| IAE 1M14094 Retaining block | 0AM53 | IAE 1M14094 | 16 | |
| IAE 1M14124 Protector ring segment | 0AM53 | IAE 1M14124 | 3 | |
| IAE 1M14010 Assembly/Disassembly fixture | 0AM53 | IAE 1M14010 |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 07-038 AIR DRYING ENAMEL | 00BB6 | CoMat 07-038 | ||
| CoMat 10-077 APPROVED ENGINE OILS | X333X | CoMat 10-077 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
Install the IAE 1M14124 Protector ring segment 3 off on to the stage 5 blade roots.
SUBTASK 72-50-10-430-241 Install the Protector Ring Segments
Refer to: Figure
Install the 33 stage 6 vane segments into the LP turbine case slots. While the installation of the vane segments install the IAE 1M14094 Retaining block 16 off at every second joint of the stage 6 vane segments. Keep the retaining blocks in position until the stage 7 vane segments will be installed.
SUBTASK 72-50-10-430-131 Install the Stage 6 Vane Segments
Refer to: Figure
SUBTASK 72-50-10-430-315 Remove the Protector Ring Segments
Move the lifting ring of the IAE 1M14010 Assembly/Disassembly fixture 1 off from the 'lifting-position' into the 'zero-position' with the use of the lever.
SUBTASK 72-50-10-430-261 Move the Lifting Ring

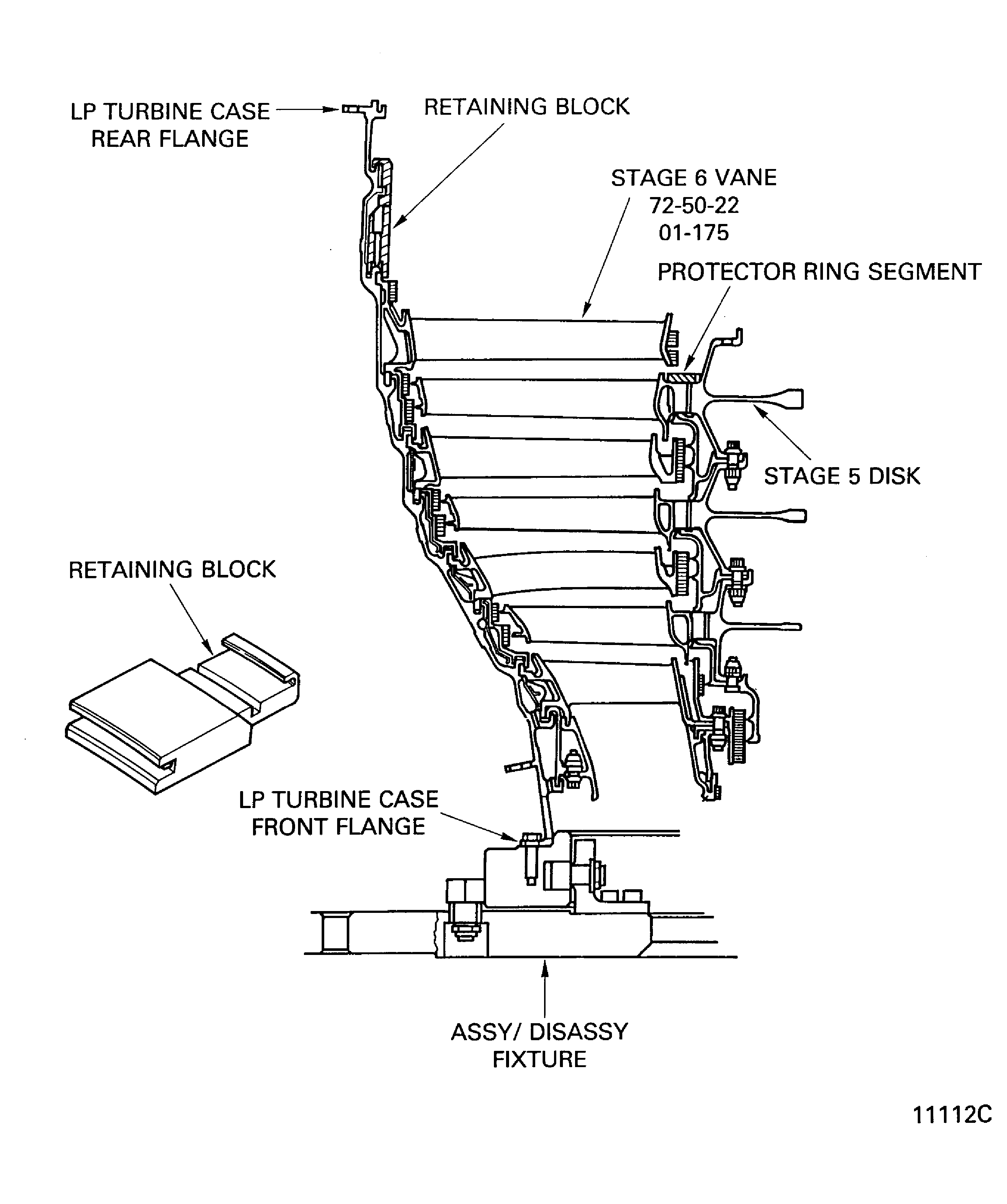

Figure: Install the stage 6 vane segments
Install the stage 6 vane segments
