TASK 72-50-10-200-005 LPT Flanged Sleeve Bushing - Examine, Inspection-005

DMC:V2500-A0-72-50-1082-00A-351A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-10-200-005 LPT Flanged Sleeve Bushing - Examine, Inspection-005

Effectivity

FIG/ITEM

PART NO.

01-400

3A0156

General

This TASK gives the procedure for the inspection of the sleeve flanged bushing. For the other parts of the LP turbine module, refer to TASK 72-50-10-200-000 (INSPECTION-000 Page-801).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-50-10-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Record and Control of the Lives of Parts, TASK 70-05-00-220-501

Inspection of Parts, TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial gageLOCALDial gage
Dial indicatorLOCALDial indicator
External micrometerLOCALExternal micrometer
Roughness microtesterLOCALRoughness microtester

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-10-230-055 Do a Crack Test on the Sleeve Flanged Bushing (Fluorescent Penetrant)

    1. Clean the part. Refer to TASK 72-50-10-100-000 (CLEANING-000).

    2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

      PART IDENT TASK/SUBTASK

      Sleeve flanged bushing

      TASK 70-23-02-230-501

    2. SUBTASK 72-50-10-220-086 Examine the Sleeve Flanged Bushing at Location A1

    1. Refer to: Figure

      2. Examine the surface of the sleeve flanged bushing at location A1.

        1. Use a dial gage and dial indicator to measure nicks, dents and scratches.

          1. No limit in the number, maximum 0.004in. (0.1 mm) in depth with no lifted metal

          1. Accept

          2. More than in (a)

          1. Reject

        2. Use an external micrometer to measure the worn diameter D1.

          1. If the diameter D1 is between 0.5884 and 0.5899in. (14.945 and 14.984 mm)

          1. Accept

          2. Less than in (a)

          1. Reject

    3. SUBTASK 72-50-10-220-087 Examine the Sleeve Flanged Bushing at Location A2

    1. Refer to: Figure

      2. Examine the surface of the sleeve flanged bushing at location A2. Use a roughness microtester.

        1. Nicked, dented, scored or scratched.

          1. No limit in the number, maximum 0.012 in. (0.30 mm) in depth

          1. Accept

          2. More than in (a)

          1. Reject

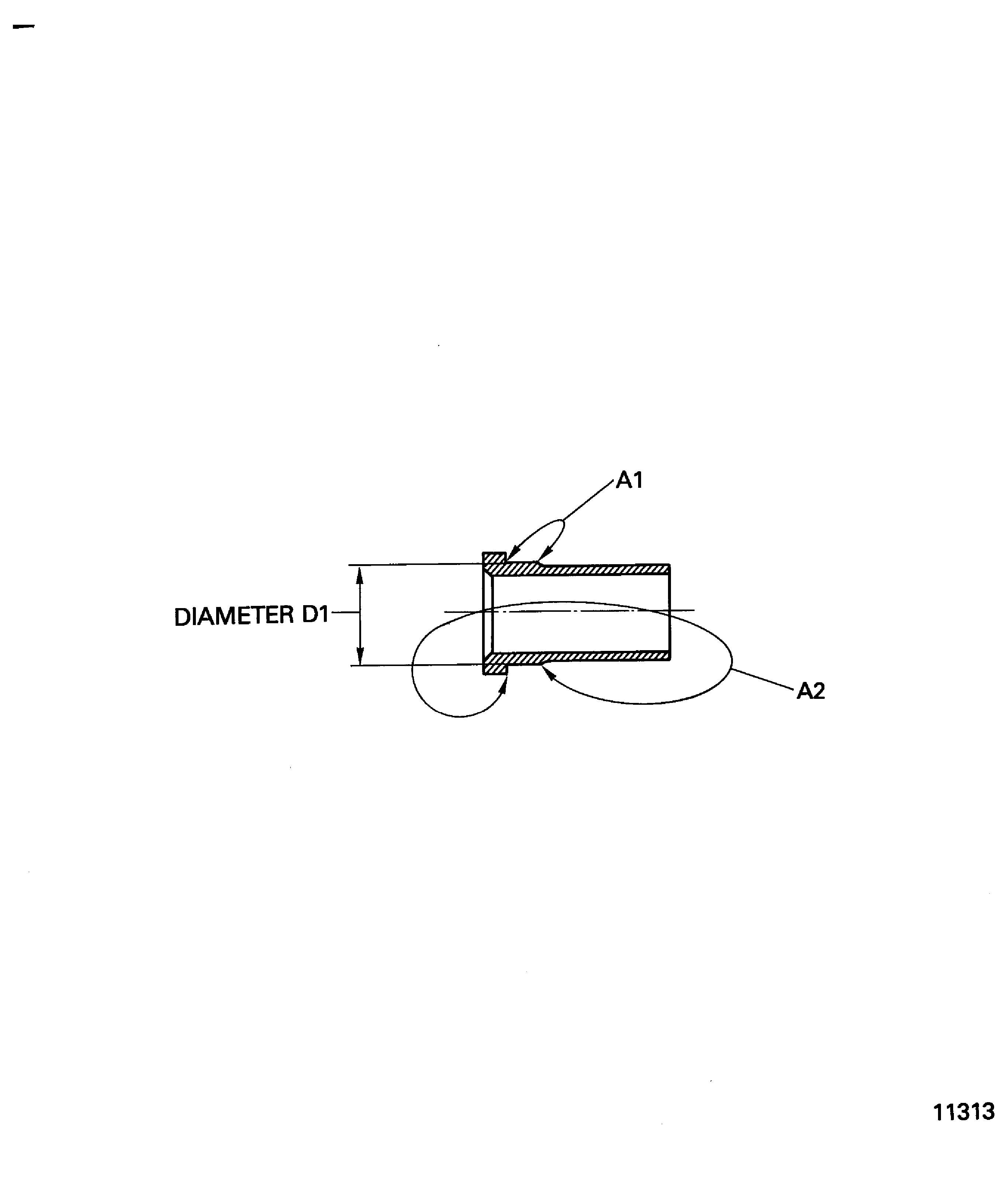

    4. Figure: Examine the sleeve flanged bushing

    Examine the sleeve flanged bushing

Requirements After Job Completion

Follow-On Conditions

NONE
