TASK 72-50-21-300-026 LPT Case - Replace The Screw Thread Inserts On The ACC Mounting Bosses, Repair-026 (VRS4049)

DMC:V2500-A0-72-50-2101-03A-920A-C|Issue No:003.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-21-300-026 LPT Case - Replace The Screw Thread Inserts On The ACC Mounting Bosses, Repair-026 (VRS4049)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0807

01-010

3A0990

01-010

3A0991

01-010

3A1908

01-010

3A2183

Deleted

01-010

3A2265

01-010

3A2447

01-010

3A2533

Material of component

DESCRIPTION

SYMBOL

MATERIAL

LP turbine case

Inconel 718

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Helicoil insert tapLOCALHelicoil insert tap
Kit, insert screw threadLOCALKit, insert screw thread

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
AGS3707 SCREW THREAD INSERTAGS37078

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-21-350-057 Remove the Damaged Screw Thread Inserts of the ACC Mounting Bosses of the LP Turbine Case

      1. Remove the damaged AGS3707 .

      1. Refer to the SPM TASK 70-35-08-300-501 and to Figure.

        Use extraction tool.

    2. SUBTASK 72-50-21-220-074 Examine the Threads of the ACC Mounting Bosses

      1. Examine the threads of the ACC mounting bosses for damage and raised material.

      1. Damage which does not permit installation of new inserts is not permitted.

        Use Helicoil insert tap to remove raised material.

    3. SUBTASK 72-50-21-350-058 Install the New Screw Thread Inserts

      1. Install the new AGS3707 into the ACC mounting bosses of the LP turbine module.

    4. SUBTASK 72-50-21-220-075 Do the Post Repair Inspection

      1. Examine the AGS3707 for correct installation.

      1. Refer to the SPM TASK 70-35-08-300-501.

        Use thread gage (part of Kit, insert screw thread).

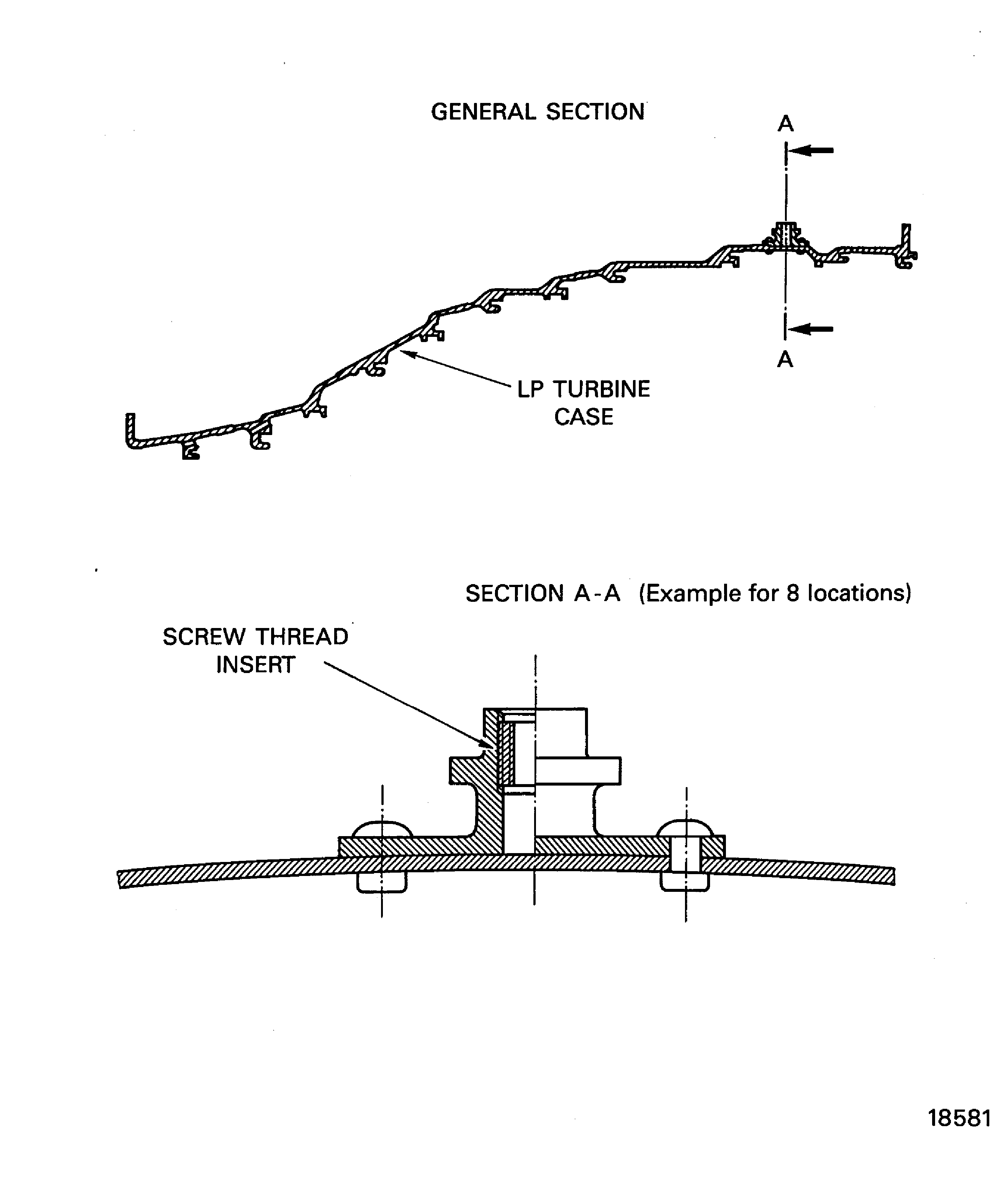

    5. Figure: Replace the screw thread inserts of the LP turbine case

    Replace the screw thread inserts of the LP turbine case

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted table content. Revised Spares nomenclature. (Editorial)

Link not Found
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:LOCAL
Tool Number:Helicoil insert tap
Tool Name:Helicoil insert tap
Link not Found
