TASK 72-50-21-300-014 LPT Heat Shields - Weld Repair, Repair-014 (VRS4017)

DMC:V2500-A0-72-50-2180-00A-627A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-21-300-014 LPT Heat Shields - Weld Repair, Repair-014 (VRS4017)

Effectivity

FIG/ITEM

PART NO.

01-300

3A0152

01-350

3A0150

01-380

3A0148

01-460

3A0143

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 5 front heatshield

C 263

Stage 4 rear heatshield

C 262

Stage 4 front heatshield

C 263

Stage 3 front heatshield

C 263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Gas furnaceLOCALGas furnace
Hand held pneumatic grinderLOCALHand held pneumatic grinder
Rotary filesLOCALRotary files
TIG welding equipmentLOCALTIG welding equipment
Unltraviolet lampLOCALUltraviolet lamp
Crack detection kit (fluorescent)LOCALCrack detection kit (fluorescent)
Illuminated comparator magnifierLOCALIlluminated comparator magnifier

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-184 WELDING FILLER WIRE, NICKELLOCALCoMat 03-184

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-21-110-057 Clean the LP Turbine Heatshields (01-300, 01-350, 01-380 and 01-460)

      1. Clean the areas around the cracks on both sides of the LP turbine heatshields.

      1. Refer to the SPM TASK 70-31-13-310-501.

    2. SUBTASK 72-50-21-350-059 Weld Repair the LP Turbine Heatshields (01-300, 01-350, 01-380 and 01-460)

    1. Refer to: Figure

      2. Tungsten inert gas weld the cracks on the two sides of the LP turbine heatshields if necessary.

      1. Refer to the SPM TASK 70-31-13-310-501. Use tungsten inert gas system. Use CoMat 03-184 WELDING FILLER WIRE, NICKEL if necessary.

    3. SUBTASK 72-50-21-230-059 Examine the Welded Areas for Cracks

      1. Examine the welded areas for cracks.

      1. Use the illuminated comparator magnifier for visual examination or refer to the SPM TASK 70-23-05-230-501. Use crack detection kit and ultraviolet lamp. No cracks are permitted.

    4. SUBTASK 72-50-21-220-076 Examine the Welds

      1. Examine the welds.

      1. Make sure that the welds are applied correctly. Refer to the SPM TASK 70-31-13-310-501.

    5. SUBTASK 72-50-21-350-060 Dress the Welded Areas

      1. CAUTION

        DO NOT OVERHEAT THE AREAS WHICH ARE DRESSED.

        If necessary, dress the welds until they make a continous surface with the adjacent areas.

      1. Use hand held pneumatic grinder and rotary files if necessary. No raised material is permitted on the grinded surface.

    6. SUBTASK 72-50-21-350-061 Heat Treat the LP Turbine Heatshields (01-300, 01-350, 01-380 and 01-460

      1. Heat treat the LP turbine heatshields.

      1. Use gas furnace for 8 hours at 1472 deg F (800 deg C). Decrease the temperature in the air.

    7. SUBTASK 72-50-21-230-060 Do the Post Repair Inspection

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501. Use crack detection kit and ultraviolet lamp.

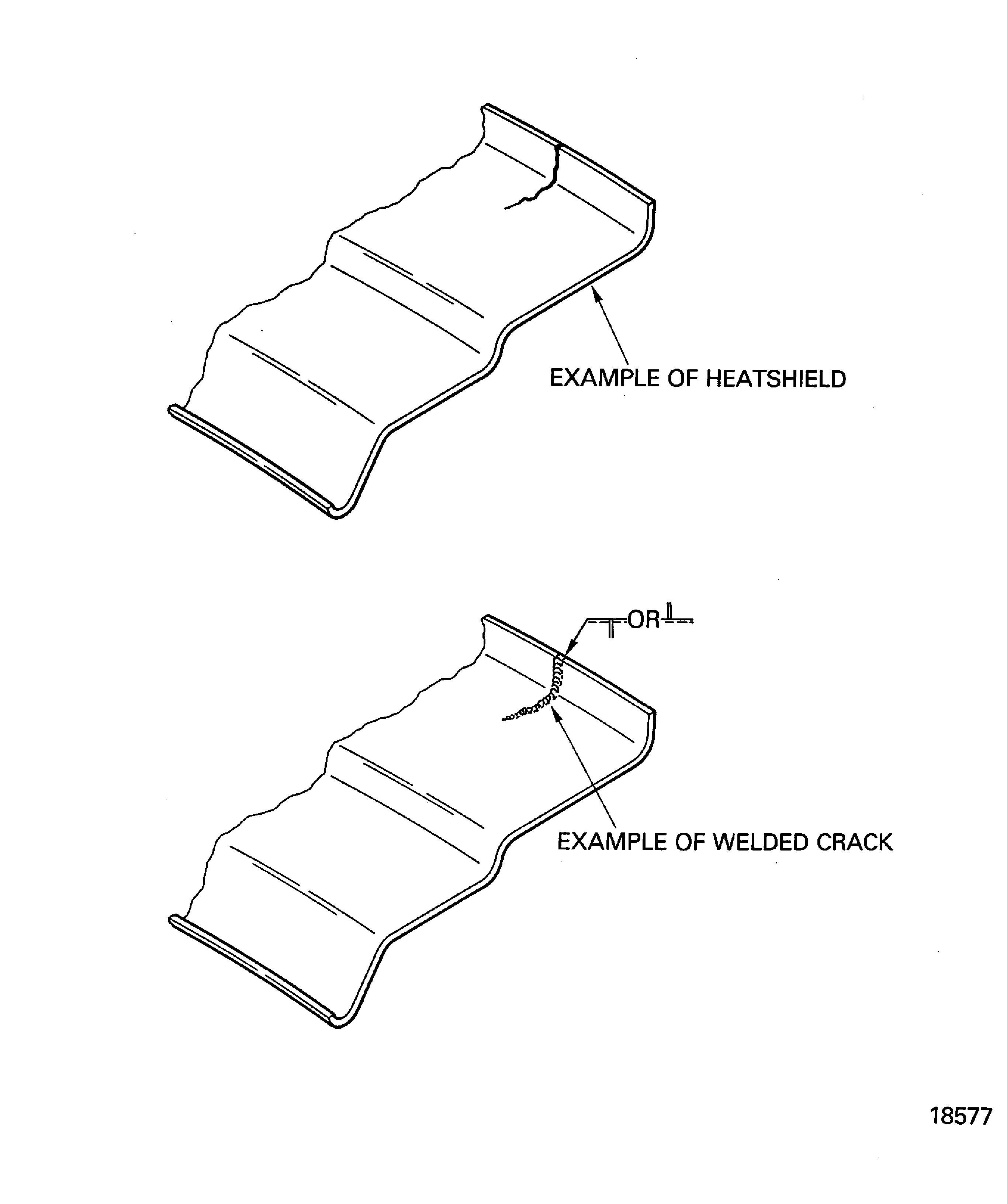

    8. Figure: Weld repair of the heatshields

    Weld repair of the heatshields

Requirements After Job Completion

Follow-On Conditions

NONE
