Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-50-22-300-026 LPT Stage 3 Vane - Overcoat The Aluminide Coating, Repair-026 (VRS4068)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
See Figure for locating area to be repaired.
Repair Facilities
The Proprietary nature of this repair requires that any facility not authorized to accomplish this repair either utilize the Authorized Repair Vendors listed below or contacts the IAE Repair Services Group to determine if a qualification program can be initiated at their facility.
IAE International Aero Engines AG
400 Main Street
East Hartford CT 06108
U.S.A.
ATTN: Manager Repair Services
Authorized repair vendors for VRS4068 TASK 72-50-22-300-026 (REPAIR-026) are listed in TASK 70-38-10-380-501.
The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.
This repair may not be done twice consecutively.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to the SPM TASK 70-38-10-380-501.
Visually examine for vibro-engrave appropriate vendor source symbol.
SUBTASK 72-50-22-220-108 Do the Post Repair Inspect

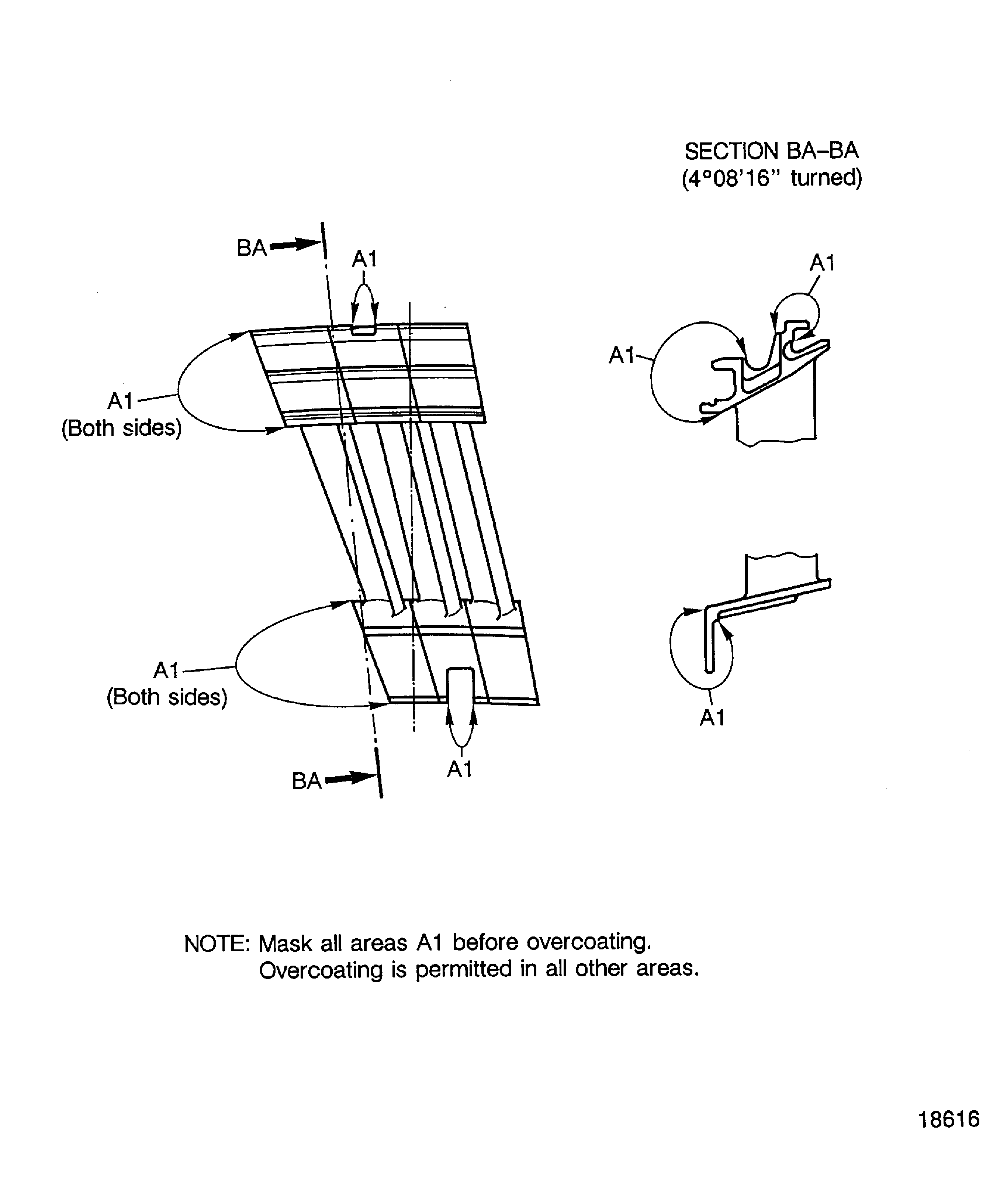

Figure: Overcoat the aluminide coating of the turbine vane
Overcoat the aluminide coating of the turbine vane
