TASK 72-50-22-300-138 LPT Stage 4 Vane - Strip And Recoat The Aluminide Coating, Repair-138 (VRS4608)
General
Price and availability - none
Refer to Figure.
Make sure that the necessary cleaning and inspection procedures are done before this repair.
Only two strip and recoat repairs are permitted per part. A "+" marking adjacent to the part number shows that the part was repaired before.
Before repair remove the honeycomb, refer to VRS4574, TASK 72-50-22-300-134 (REPAIR-134).
After repair install the honeycomb, refer to VRS4574, TASK 72-50-22-300-134 (REPAIR-134).
Repair Facilities
The Proprietary nature of this repair requires that any facility not authorized to accomplish this repair either, utilize the Authorized Repair Vendors listed below or contact the IAE Repair Services Group to determine if a qualification program can be initiated at their facility.
IAE INTERNATIONAL AERO ENGINES AG 400 Main Street, M/S 121-10 East Hartford, CT 06108 USA Attn: Manager Repair Services |
Authorized repair vendors who can do VRS4608, TASK 72-50-22-300-138 (REPAIR-138) for the first time only are listed below:
TURBINE OVERHAUL SERVICES PTE LTD No. 5 Tuas Drive 2 SINGAPORE 638639 |
IHI Corporation 229 Tonogaya Mizuho-Machi Nishitama-Gun Tokyo 190-1297 Japan |
Authorized repair vendors who can do VRS4608, TASK 72-50-22-300-138 (REPAIR-138) for the first and second time is listed below:
MTU MAINTENANCE GMBH Muenchner Strasse 31 30855 Langenhagen Germany |
The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable him to carry out the listed repair work. However, IAE make no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work, and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure

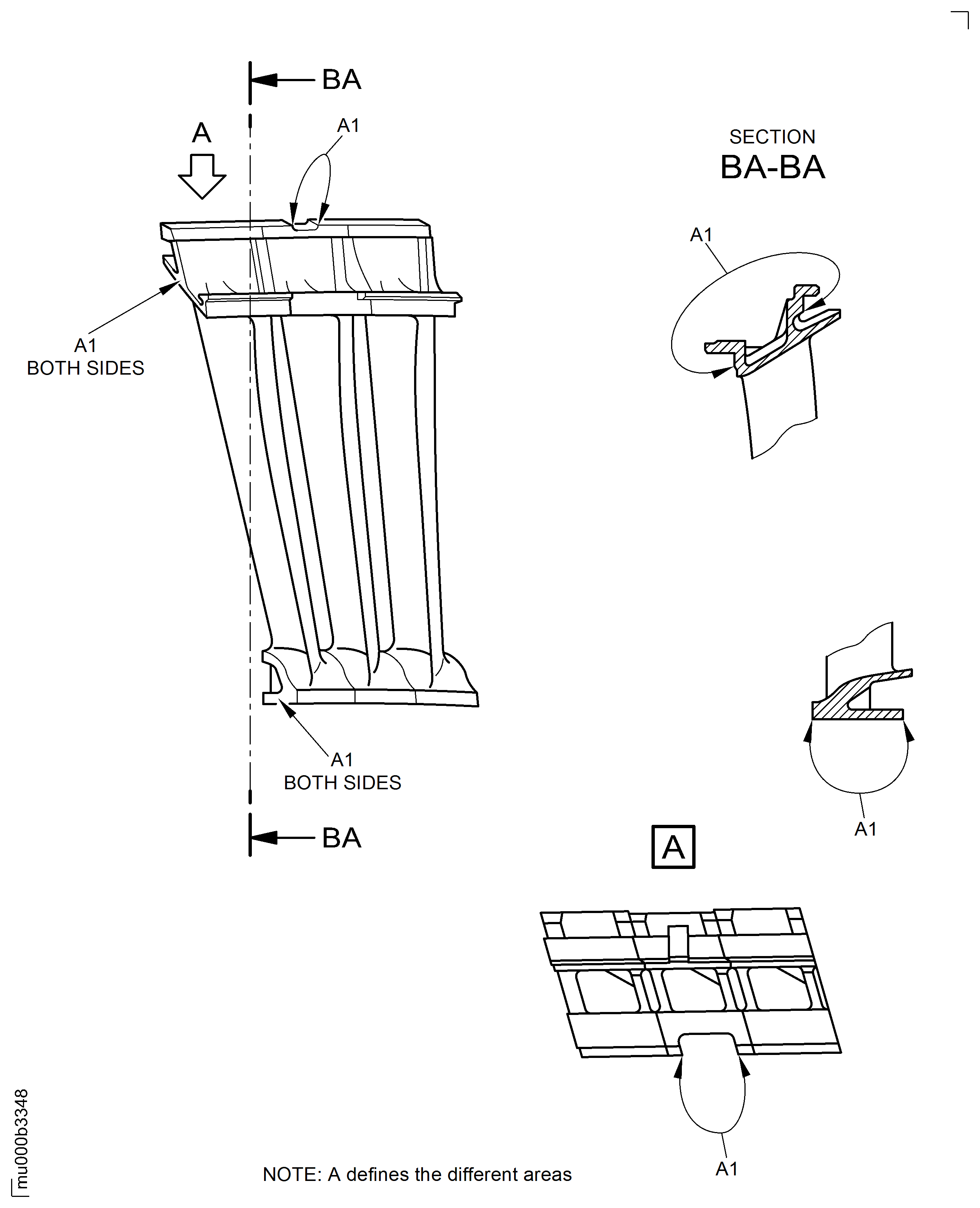

Figure: Repair Details and Dimensions
Repair Details and Dimensions
