TASK 72-50-22-200-001-D00 LPT Stage 7 Vane - Examine the Stage 7 Turbine Vanes, Inspection-001

DMC:V2500-A0-72-50-2207-00D-300A-C|Issue No:004.00|Issue Date:2015-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-200-001-D00 LPT Stage 7 Vane - Examine the Stage 7 Turbine Vanes, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-010

3A2497

General

This TASK gives the procedure for the inspection of the Stage 7 turbine vanes.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

A ** following any repair referenced in this inspection indicates that the repair is not yet published in the current revision of this manual and the part must be rejected. Contact IAE for additional information concerning FAA approved data.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-50-22-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-50-22-230-093. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial Indicator With Ball InsertLOCALDial Indicator With Ball Insert
Dial GageLOCALDial Gage
Dial Indicator With Needle InsertLOCALDial Indicator With Needle Insert
Small Hole GageLOCALSmall Hole Gage
External MicrometerLOCALExternal Micrometer
Dial caliperLOCALDial caliper
Magnetic stand dial gageLOCALMagnetic stand dial gage

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-230-123-001 Do a Crack Test on the Stage 7 Turbine Vanes (Fluorescent Penetrant)

    1. Clean the parts. Refer to TASK 72-50-22-100-000 (Cleaning-000).

    2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

      PART IDENT

      TASK/SUBTASK

      Stage 7 Turbine Vanes

      3. Cracked inner or outer platforms at Location A9

        1. Cracks up to 0.010 in. (0.254 mm) maximum depth

        1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

        2. More than in Step

        1. Reject

      4. Cracked airfoils

      1. Reject

    2. SUBTASK 72-50-22-230-123-002 Do a Crack Test on the Stage 7 Turbine Vanes (Fluorescent Penetrant)

    1. Clean the parts. Refer to TASK 72-50-22-100-000 (Cleaning-000).

    2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

      PART IDENT

      TASK/SUBTASK

      Stage 7 Turbine Vanes

      3. Cracked inner or outer platforms at Location A9

        1. Cracks up to 0.010 in. (0.254 mm) maximum depth

        1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

        2. More than in Step

        1. Reject

      4. Cracked airfoils

      1. Reject

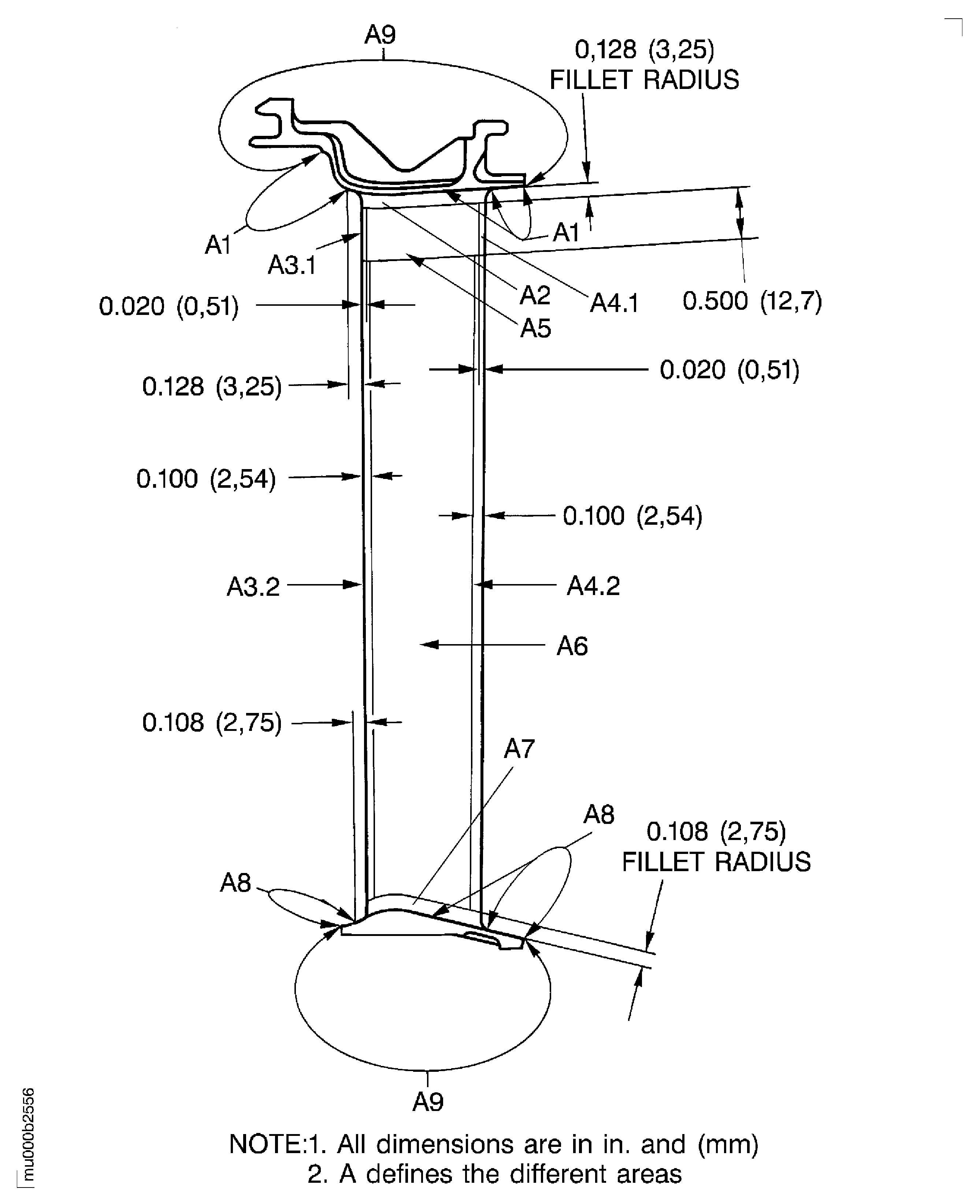

    3. SUBTASK 72-50-22-220-283 Examine the Stage 7 Turbine Vanes at Location A1 to A9 for Surface Damage

    1. Refer to Figure.

      2. Examine the surface at Location A1.

        1. Nicked, dented and pitted

          1. Round bottom dents up to 0.020 in (0.508 mm) maximum depth, up to 10 percent of Area A1

          1. Accept

          2. Nicked, pitted up to 0.005 in. (0.127 mm) maximum depth, no raised material

          1. Accept

          3. More than in Step or Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      3. Examine the surface at Location A2.

        1. Nicked, dented and pitted

          1. Round bottom dents up to 0.010 in (0.254 mm) maximum depth

          1. Accept

          2. Nicked, pitted up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Reject

      4. Examine the surface at Location A3.

        1. Nicked, dented and pitted in Area A3.1

          1. Up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

        2. Nicked, dented and pitted in Area A3.2

          1. Up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          2. One round bottom dent per airfoil up to 0.010 in (0.254 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      5. Examine the surface at Location A4.

        1. Nicked, dented and pitted in Area A4.1

          1. Up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

        2. Nicked, dented and pitted in Area A4.2.

          1. Up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          2. Bent up 0.020 in. (0.508 mm) maximum deflection and 0.700 in. (17.780 mm) total maximum length each airfoil

          1. Accept

          3. More than in Step orStep

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      6. Examine the surface at Location A5.

        1. Nicked, dented and pitted.

          1. Round bottom dents up to 0.010 in. (0.254 mm) maximum depth

          1. Accept

          2. Nicked, pitted up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      7. Examine the surface at Location A6.

        1. Nicked, dented and pitted.

          1. Round bottom dents up to 0.020 in. (0.508 mm) maximum depth, not visible from other side, up to 10 percent of surface of Area A6

          1. Accept

          2. Nicked. pitted up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      8. Examine the surface at Location A7.

        1. Nicked, dented and pitted.

          1. Round bottom dents up to 0.010 in. (0.254 mm) maximum depth

          1. Accept

          2. Nicked, pitted up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Reject

      9. Examine the surface at Location A8.

        1. Nicked, dented and pitted.

          1. Round bottom dents up to 0.020 in. (0.508 mm) maximum depth, not visible from other side, up to 10 percent of Area A8

          1. Accept

          2. Nicked, pitted up to 0.005 in. (0.127 mm) maximum depth

          1. Accept

          3. More than in Step or Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

      10. Examine the surface at Location A9.

        1. Nicked, dented and pitted

          1. Any number, no raised material. Up to 0.010 in. (0.254 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Refer to Repair-098, (VRS4434) TASK 72-50-22-300-098.

    4. SUBTASK 72-50-22-220-284 Examine the Stage 7 Turbine Vanes Inner Honeycomb Seal

        1. Unbonding

          1. Any quantity unbonded from the vane

          1. Refer to Repair-099, (VRS4435) V2500-D5-72-50-2207-05A-920A-C .

        2. Worn

          1. Smooth wear pattern, 0.394 in. (10.008 mm) maximum width and 0.060 in. (1.524 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Refer to Repair-099, (VRS4435) TASK 72-50-22-300-099.

    5. SUBTASK 72-50-22-220-285 Examine the Stage 7 Turbine Vanes Outer Honeycomb Seal

      1. Visually and dimensionally examine. Use Dial Gage,Dial Indicator With Ball Insert and Dial caliper.

        1. Unbonding

          1. Any quantity unbonded from the vane

          1. Refer to Repair-102, (VRS4444) TASK 72-50-22-300-102.

        2. Worn

          1. Smooth wear pattern, 0.394 in. (10.008 mm) maximum width and 0.060 in. (1.524 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Refer to Repair-102, (VRS4444) TASK 72-50-22-300-102.

    6. SUBTASK 72-50-22-220-286 Examine the Inner and the Outer Platform End faces of the Stage 7 Turbine Vanes for Wear

      1. Dimensionally examine. Use the Dial Gage and Dial Indicator With Needle Insert.

        1. Fretted

          1. 0.002 in. (0.051 mm) maximum depth

          1. Accept

          2. More than in Step

          1. Reject

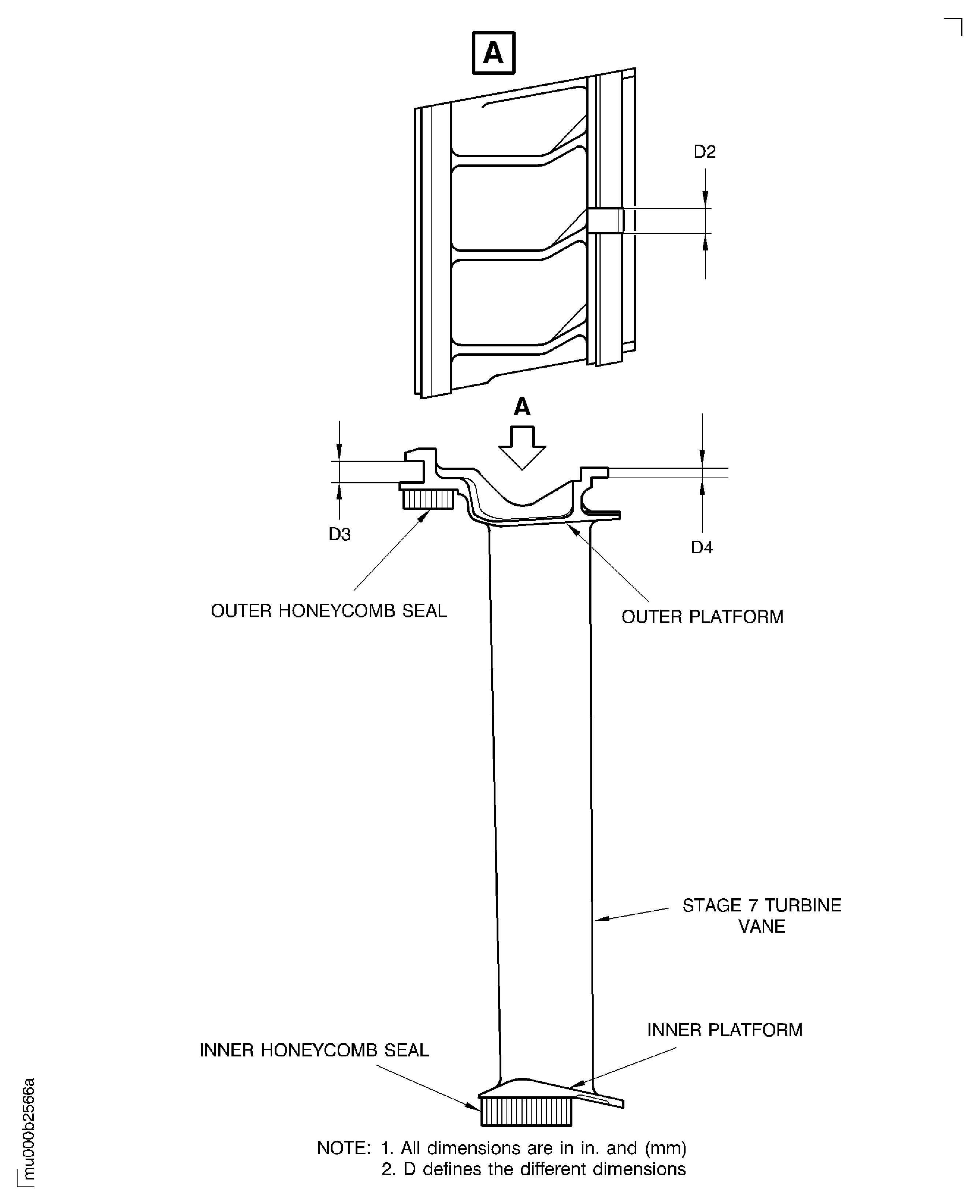

    7. SUBTASK 72-50-22-220-288 Examine the Stage 7 Turbine Vanes at Location D2 for Wear

    1. Refer to Figure.

      2. Dimensionally examine at Location D2. Use Dial caliper.

        1. Worn

          1. Between 0.3141 and 0.3201 in. (7.98 and 8.13 mm)

          1. Accept

          2. Other than in Step

          1. Refer to Repair-100, (VRS4436) TASK 72-50-22-300-100.

    8. SUBTASK 72-50-22-220-289 Examine the Stage 7 Turbine Vanes at Location D3 for Wear

    1. Refer to Figure.

      2. Dimensionally examine at Location D3. Use Small Hole Gage and External Micrometer.

        1. Worn

          1. Between 0.235 and 0.241 in. (5.97 and 6.12 mm)

          1. Accept

          2. Other than in Step

          1. Reject

    9. SUBTASK 72-50-22-220-290 Examine the Stage 7 Turbine Vanes at Location D4 for Wear

    1. Refer to Figure.

      2. Dimensionally examine at Location D4. Use Dial caliper.

        1. Worn

          1. Between 0.124 and 0.132 in. (3.15 and 3.35 mm)

          1. Accept

          2. Other than in Step

          1. Reject

    10. Figure: Examine the Stage 7 turbine vanes

    Examine the Stage 7 turbine vanes

    Examine the Stage 7 turbine vanes

Requirements After Job Completion

Follow-On Conditions

NONE
