TASK 72-50-23-300-060 Weld Repair the Rear Faces of the Stage 3 Shroud Seal Segment, Repair 060 (VRS4557)

DMC:V2500-A0-72-50-2303-11A-627A-C|Issue No:003.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-23-300-060 Weld Repair the Rear Faces of the Stage 3 Shroud Seal Segment, Repair 060 (VRS4557)

Effectivity

FIG/ITEM

PART NO.

01-350

3A1916

01-350

3A3104

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Stage 3 turbine shroud seal segment

Hastelloy X

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-31-13-310-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held grinderLOCALHand held grinder
IAE 3M14421 Grinding/turningfixture0AM53IAE 3M144211

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-197 WELDING FILLER WIRELOCALCoMat 03-197

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-23-110-162 Clean the Worn Surfaces before Welding

      1. Clean the areas to be welded.

      1. Use silicon carbide rag or equivalent.

    2. SUBTASK 72-50-23-110-163 Clean the Stage 3 Shroud Seal Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-23-310-097 Weld Repair the Worn Surfaces

    1. Refer to Figure.

      2. Gas tungsten arc weld the worn surfaces.

      1. Refer to the SPM TASK 70-31-13-310-501. Make sure that there is sufficient material to do last machining.

        Use CoMat 03-197 WELDING FILLER WIRE. To prevent honeycomb braze damage, several weld passes should be made. Prevent to much temperature build-up.

    4. SUBTASK 72-50-23-320-091 Dress the Welded Areas

      CAUTION

      DO NOT OVERHEAT THE AREAS WHICH ARE DRESSED.

    1. Refer to Figure.

      2. Dress the welds.

      1. Welded areas must be equal to the original contours and must be flush with the adjacent surfaces.

        Use hand held grinder.

      3. Bend the shroud seal segment back to shape if required.

      1. Use cold work.

        Make sure that the shroud seal segment aligns with the IAE 3M14421 Grinding/turningfixture 1 off.

    5. SUBTASK 72-50-23-230-109 Examine the Welded Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501. Use medium sensitivity level.

        No cracks are permitted.

    6. SUBTASK 72-50-23-220-177 Examine the Machined Areas

      1. Examine dimensionally.

      1. Refer to Figure.

    7. SUBTASK 72-50-23-110-164 Clean the Stage 3 Shroud Seal Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

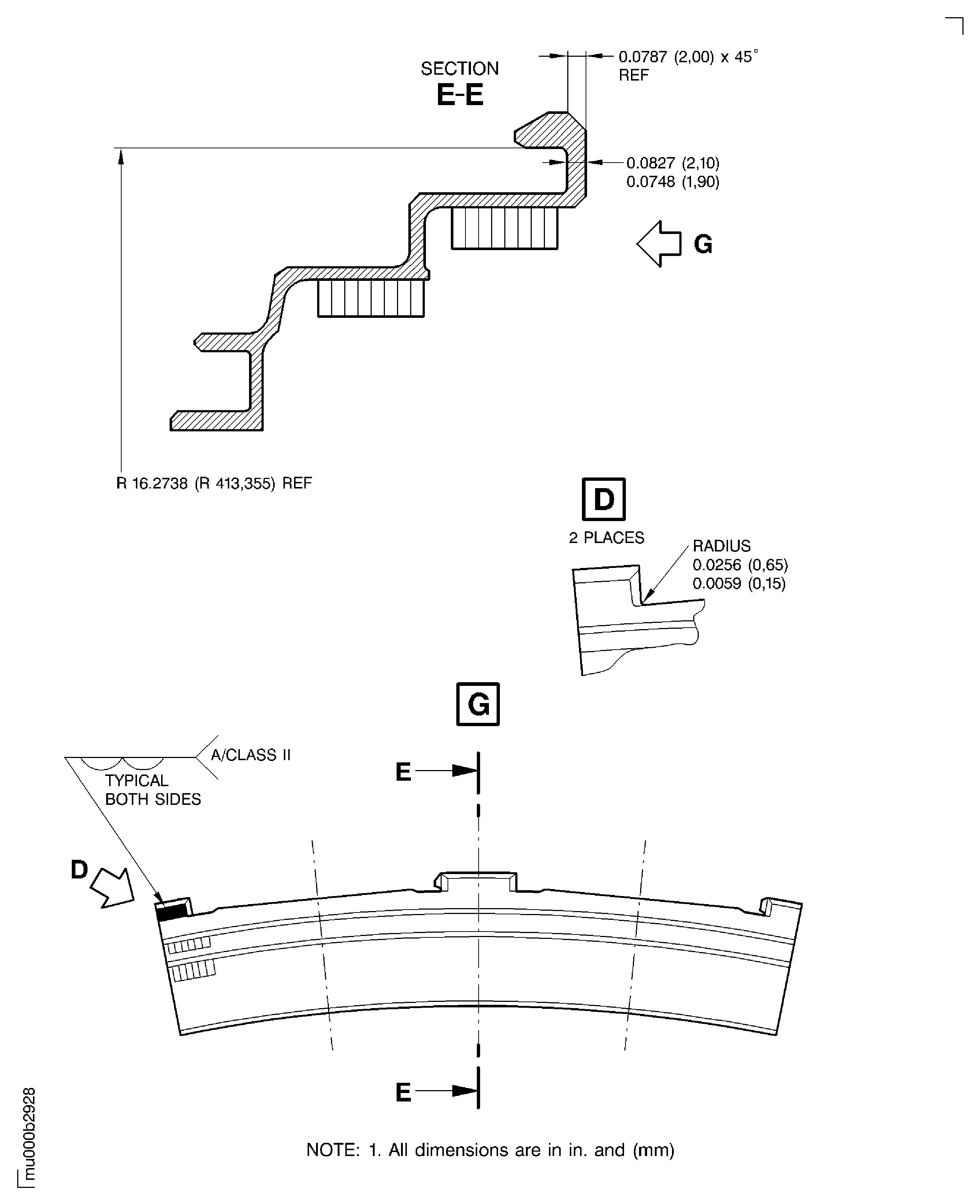

    8. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Incorporated new part number. (EC 07VM577A)
