TASK 72-50-23-300-011 LPT Stage 5 Shroud Seal Segment - Weld Repair The Rear Hook Faces, Repair-011 (VRS4085)

DMC:V2500-A0-72-50-2305-00A-627A-C|Issue No:002.00|Issue Date:2018-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-23-300-011 LPT Stage 5 Shroud Seal Segment - Weld Repair The Rear Hook Faces, Repair-011 (VRS4085)

Effectivity

FIG/ITEM

PART NO.

01-150

3A0727

01-150

3A1920

01-150

3A2953

01-150

3A3093

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Stage 5 turbine airseal segment

MTS 1096A or 2.4665.1

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to SPM TASK 70-11-03-200-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-31-13-310-501.
Equivalent equipment or materials may be used.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3M14519 Welding fixture0AM53IAE 3M145191
IAE 3M14522 Grinding fixture0AM53IAE 3M145221

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-197 WELDING FILLER WIRELOCALCoMat 03-197

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-23-110-103 Clean the Worn Surfaces before Welding

      1. Clean the surfaces to be welded.

      1. Use silicon carbide rag or equivalent.

    2. SUBTASK 72-50-23-220-122 Examine the Surfaces to be Welded

      1. Do the test for cracks locally.

      1. Refer to SPM TASK 70-23-05-230-501.

        No cracks permitted.

    3. SUBTASK 72-50-23-110-104 Clean the Stage 5 turbine Airseal Segment

      1. Clean the segment.

      1. Refer to SPM TASK 70-11-03-200-503.

    4. SUBTASK 72-50-23-310-071 Weld Repair the Worn Surfaces

      1. Build up surfaces. Use manual tungsten inert gas weld technique.

      1. Refer to Figure and SPM TASK 70-31-13-310-501.

        Make sure that there is sufficient material to do last machining.

        To prevent honeycomb braze damage, several weld passes should be made.

        Prevent too much temperature build-up.

    5. SUBTASK 72-50-23-220-123 Examine the Welded Surfaces for Cracks

      1. Do the test for cracks on welded areas.

      1. Refer to SPM TASK 70-23-05-230-501.

        No cracks permitted.

    6. SUBTASK 72-50-23-320-054 Machine the Welded Areas

      1. Machine the repaired areas.

      2. Remove all surplus weld to original contours.

      1. Welded areas must be blended into adjacent surfaces.

        The surface texture of the blended surface must be equal to or better than that of the adjacent area.

    7. SUBTASK 72-50-23-220-124 Examine the Machined Dimensions

      1. Dimensionally examine the repaired areas.

      1. For finish dimensions refer to Figure.

      2. Do the test for cracks on the repaired areas.

      1. Refer to SPM TASK 70-23-05-230-501.

        No cracks permitted.

      3. Clean the stage 5 turbine airseal segment.

      1. Refer to SPM TASK 70-11-03-200-502.

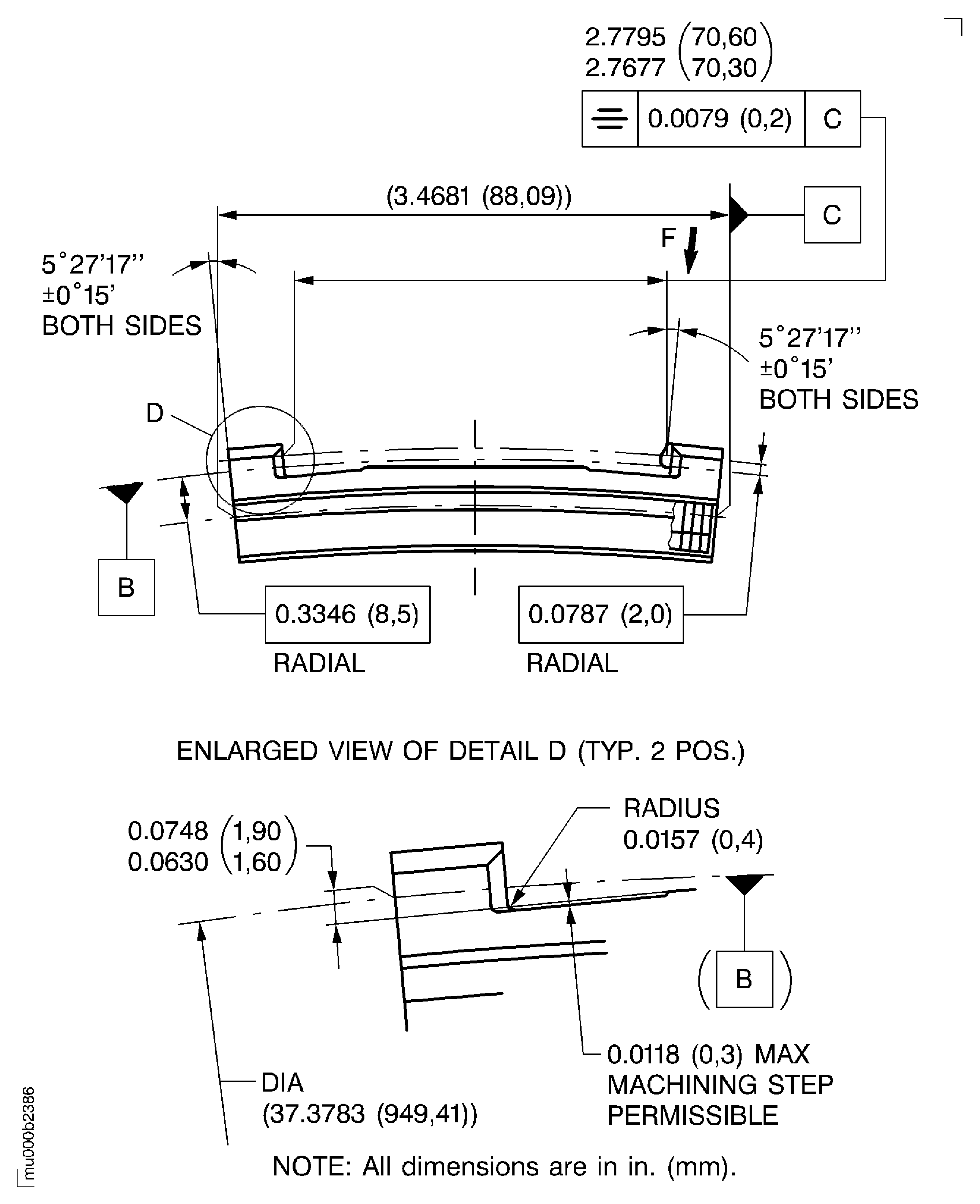

    8. Figure: Weld repair dimensions of the stage 5 airseal segment rear hook faces

    Sheet 1

    Legend
    Weld repair dimensions of the stage 5 airseal segment rear hook faces

    Sheet 1

    Close

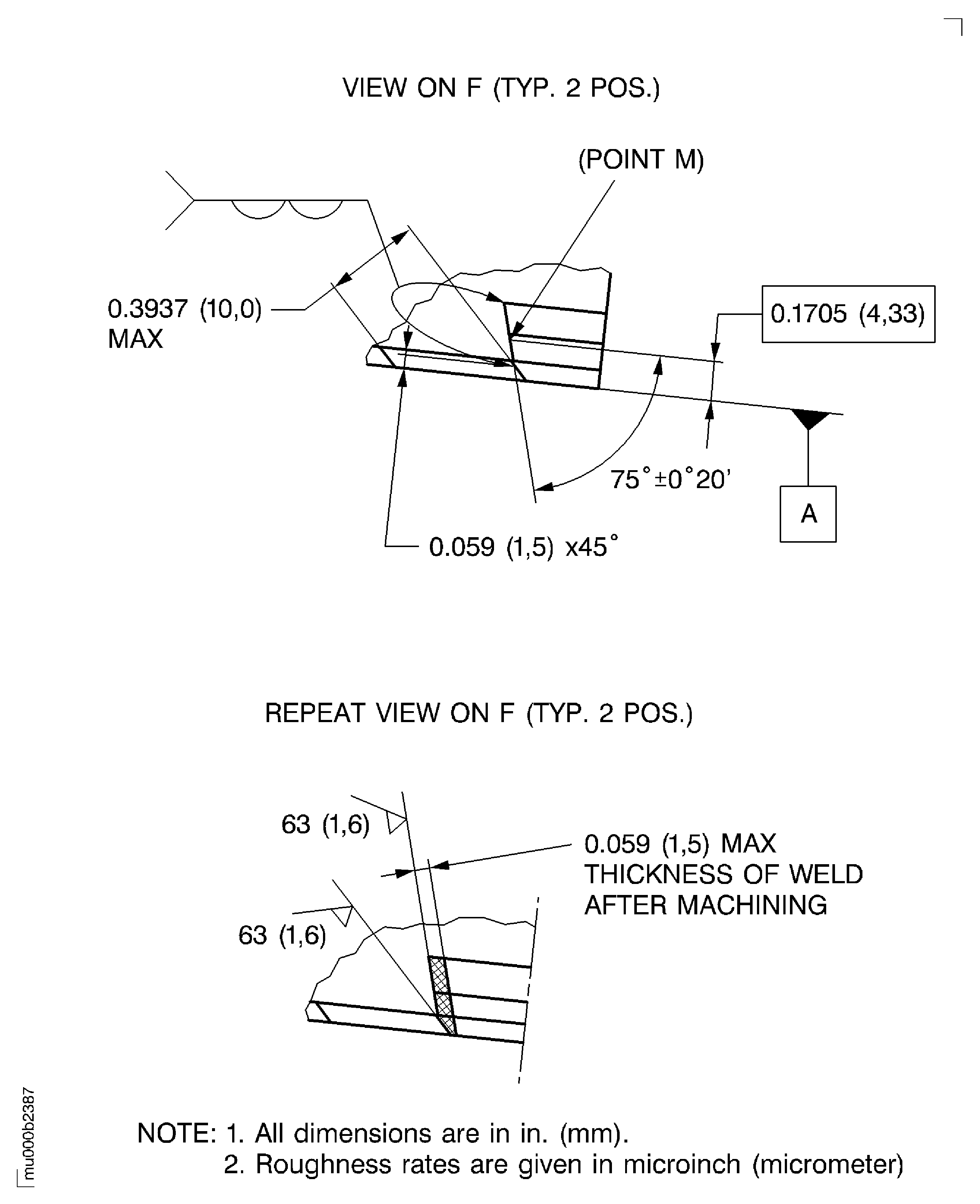

    Figure: Weld repair dimensions of the stage 5 airseal segment rear hook faces

    Sheet 2

    Legend
    Weld repair dimensions of the stage 5 airseal segment rear hook faces

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added part number

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Supply Number:CoMat 03-197
Type:sp01
Supply Short Name:CoMat 03-197 WELDING FILLER WIRE
Supply Name:CoMat 03-197 WELDING FILLER WIRE
Specification Groups:
Doc NumberType
MSRR9500/215HASTELLOY X
OMAT:3/165AMS 5798
OMAT:3/165
Suppliers:
ManufacturerRemarks
LOCAL
07098
IE508
0B491
2R602
36346
55596
57965
58401
80357
IE306
K6835
1GD26
Manufacturer Code:0AM53
Tool Number:IAE 3M14519
Tool Name:IAE 3M14519 Welding fixture
Manufacturer Code:0AM53
Tool Number:IAE 3M14522
Tool Name:IAE 3M14522 Grinding fixture
