TASK 72-50-23-300-055 Weld Repair the Rear Faces of the Stage 5 Shroud Seal Segment, Repair 055 (VRS4552)

DMC:V2500-A0-72-50-2305-03A-627A-C|Issue No:003.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-23-300-055 Weld Repair the Rear Faces of the Stage 5 Shroud Seal Segment, Repair 055 (VRS4552)

Effectivity

FIG/ITEM

PART NO.

01-150

3A1920

01-150

3A2953

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 5 turbine shroud seal segment

Hastelloy X

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-31-13-310-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held grinderLOCALHand held grinder
IAE 3M14423 Grinding/turning fixture0AM53IAE 3M144231

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-197 WELDING FILLER WIRELOCALCoMat 03-197

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-23-110-147 Clean the Worn Surfaces before Welding

      1. Clean the areas to be welded.

      1. Use silicon carbide rag or equivalent.

    2. SUBTASK 72-50-23-110-148 Clean the Stage 5 Shroud Seal Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-23-310-092 Weld Repair the Worn Surfaces

    1. Refer to Figure.

      2. Gas tungsten arc weld the worn surfaces.

      1. Refer to the SPM TASK 70-31-13-310-501. Make sure that there is sufficient material to do last machining.

        Use CoMat 03-197 WELDING FILLER WIRE. To prevent honeycomb braze damage, several weld passes should be made. Prevent too much temperature build-up.

    4. SUBTASK 72-50-23-320-086 Dress the Welded Areas

    1. CAUTION

      DO NOT OVERHEAT THE AREAS WHICH ARE DRESSED.

      Refer to Figure.

      2. Dress the welds.

      1. Welded areas must be equal to the original contours and must be flush with the adjacent surfaces.

        Use hand held grinder.

      3. Bend the shroud seal segment back to shape if required.

      1. Use cold work.

        Make sure that the shroud seal segment aligns with the IAE 3M14423 Grinding/turning fixture 1 off.

    5. SUBTASK 72-50-23-230-104 Examine the Welded Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501. Use medium sensitivity level.

        No cracks are permitted.

    6. SUBTASK 72-50-23-220-172 Examine the Machined Areas

      1. Examine dimensionally.

      1. Refer to Figure.

    7. SUBTASK 72-50-23-110-149 Clean the Stage 5 Shroud Seal Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

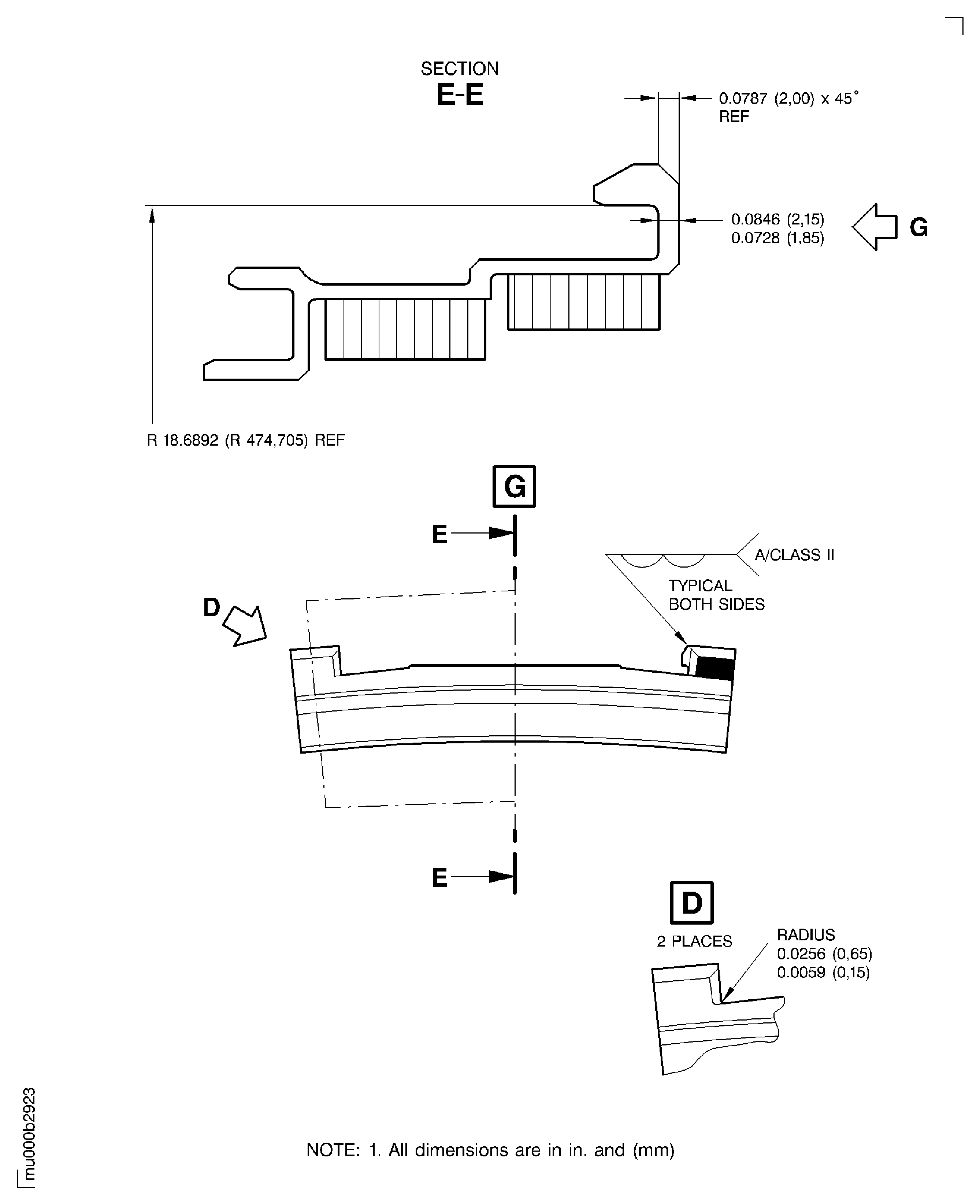

    8. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
