TASK 72-50-25-300-009 LPT Outer Diffuser Segment - Blend Repair, Repair-009 (VRS4146)

DMC:V2500-A0-72-50-2501-00A-649A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-25-300-009 LPT Outer Diffuser Segment - Blend Repair, Repair-009 (VRS4146)

Effectivity

FIG/ITEM

PART NO.

01-200

3A0090

01-200

3A0958

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Outer diffuser assembly segment

Inconel 713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Deleted

NOTE

  1. For more equipment and material necessary to do this repair refer to the SPM TASK 70-23-05-230-501.

  2. Equivalent materials or equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Radius gage setLOCALRadius gage set
External dial caliperLOCALExternal dial caliper

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-25-350-053 General Instructions for the Blend Repair of the Outer Diffuser Assembly Segment

      1. Blend the nicks, dents and the pits of outer diffuser assembly segment.

      1. Use files and stones to remove the nicks, dents and pits.

      2. Polish the blended areas.

      1. Use fine stones to make the blended surface as smooth as the initial surface.

        Edges and corners are not permitted.

    2. SUBTASK 72-50-25-350-054 Blend Repair the Outer Diffuser Assembly Segment

      NOTE

      1. Keep the removal of material to the minimum necessary to remove the damage.

      2. For the local blending use a length to depth ratio of 5:1 minimum. Refer to Figure.

      3. Unless specified differently, there is no limit for the number of blends. If there is a number of damage marks together, blend the whole area to the specified depth. The minimum distance between the blends is 0.500in. (12.7 mm).

      1. Blend repair in area A1.

      1. The maximum permitted depth of blend repair is 0.008in. (0.20 mm).

      2. Blend repair in area A2.

      1. Remove the lifted material only.

      3. Blend repair the holes and the locating pins.

      1. Remove the lifted material only.

    3. SUBTASK 72-50-25-230-054 Examine the Outer Diffuser Assembly Segment for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-25-220-069 Do the Post Repair Inspection

      1. Examine the surface finish.

      1. The surface finish of all repairs must be as good as the adjacent areas.

      2. Examine the blend repaired areas dimensionally.

      1. Refer to Figure.

        Use dial caliper and external dial caliper to measure the dimensions of the blended areas.

        The blend ratio must be in the limits given in Step.

        Use radius gage set to measure the radii of the blended areas.

    5. SUBTASK 72-50-25-380-051 Do the Post Repair Requirements

      1. Touch-up the blended areas of the gas washed surfaces if necessary.

      1. Refer to VRS4147, TASK 72-50-25-300-010.

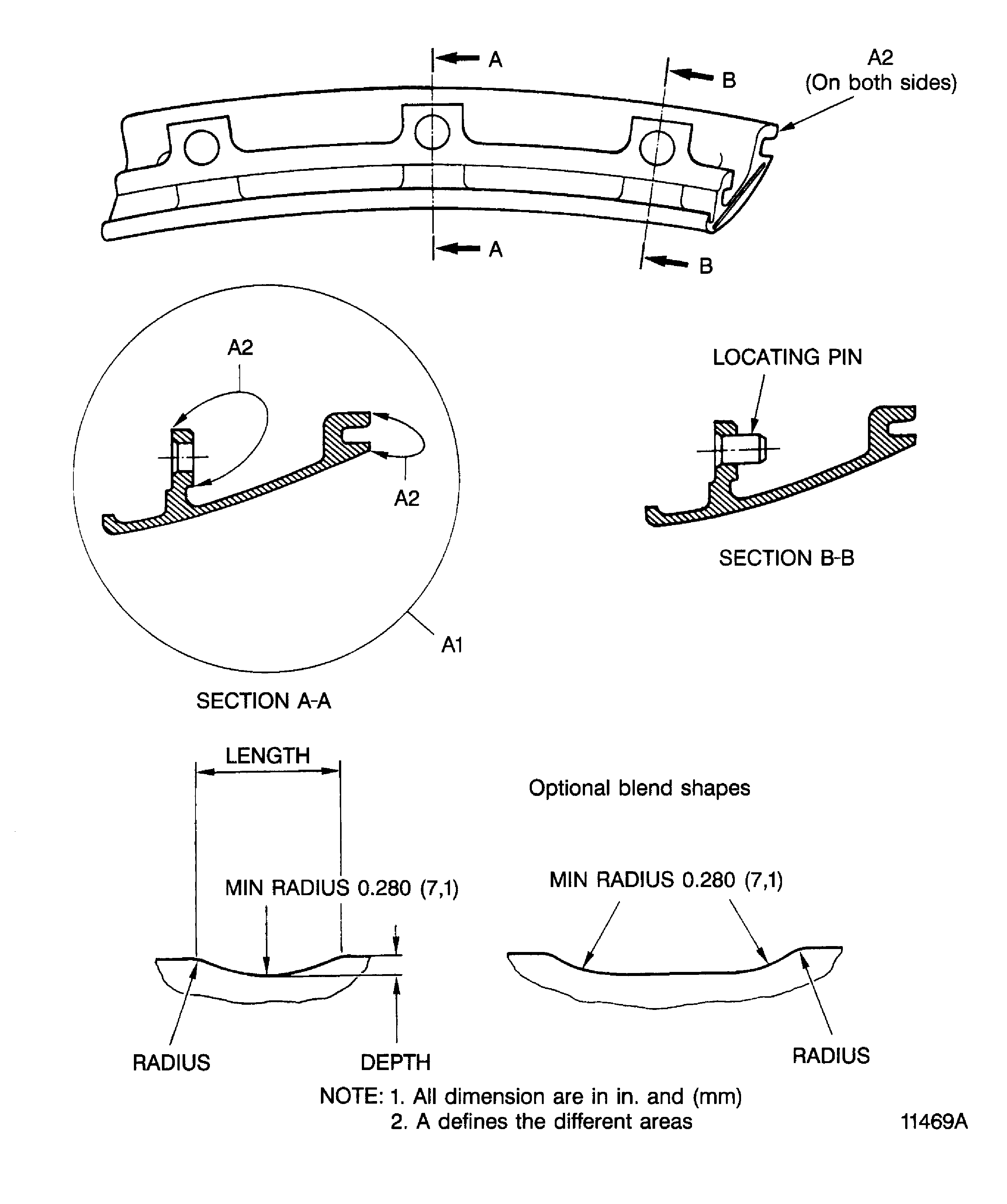

    6. Figure: Blend repair of the outer diffuser assembly segment

    Blend repair of the outer diffuser assembly segment

Requirements After Job Completion

Follow-On Conditions

NONE
