TASK 72-50-25-300-010 LPT Outer Diffuser Segment - Touch-Up Coat After Blend Repair, Repair-010 (VRS4147)

DMC:V2500-A0-72-50-2501-00A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-25-300-010 LPT Outer Diffuser Segment - Touch-Up Coat After Blend Repair, Repair-010 (VRS4147)

Effectivity

FIG/ITEM

PART NO.

01-200

3A0090

01-200

3A0958

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Outer diffuser assembly

Inconel 713C

segment

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-09-00-400-501 and SPM TASK 70-38-14-380-501.
Equivalent materials or equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Gas furnace or vacuum furnaceLOCALGas furnace or vacuum furnace
Vibrating marking pencilLOCALVibrating marking pencil
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Vapor blast cabinetLOCALVapor blast cabinet

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-25-380-052 Touch-Up Coat the Outer Diffuser Assembly Segment after the Blend Repair

      NOTE

      This repair is only permitted in conjunction with Repair VRS4146, TASK 72-50-25-300-009 (REPAIR-009)**.
      If the coating is badly damaged, refer to Repair, VRS4150, TASK 72-50-25-300-013 (REPAIR-013) or Repair, VRS4151, TASK 72-50-25-300-014 (REPAIR-014).
      Touch-up is only permitted in area A1, refer to Figure.

      1. Prepare the material and the surface.

      1. Refer to the SPM TASK 70-38-14-380-501.

        Use a vapor blast cabinet.

      2. Touch-up coat the outer diffuser assembly segment.

      1. Refer to the SPM TASK 70-38-14-380-501.

    2. SUBTASK 72-50-25-380-053 Do the Diffusion Heat Treatment of the Coated Outer Diffuser Assembly Segment

      1. Diffuse the coating of the outer diffuser assembly segment.

      1. Refer to TASK 70-38-14-300-501.

        Use a gas furnace or a vacuum furnace.

    3. SUBTASK 72-50-25-220-070 Do the Post Repair Inspection

      1. Visually examine the coated areas for defects.

      1. Use an illuminated comparator magnifier.

        No defects in the surface are permitted.

    4. SUBTASK 72-50-25-380-054 Make a Mark to Identify the Repair

      1. Vibro-peen the touch-up symbol (T) adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

        Use a vibrating marking pencil.

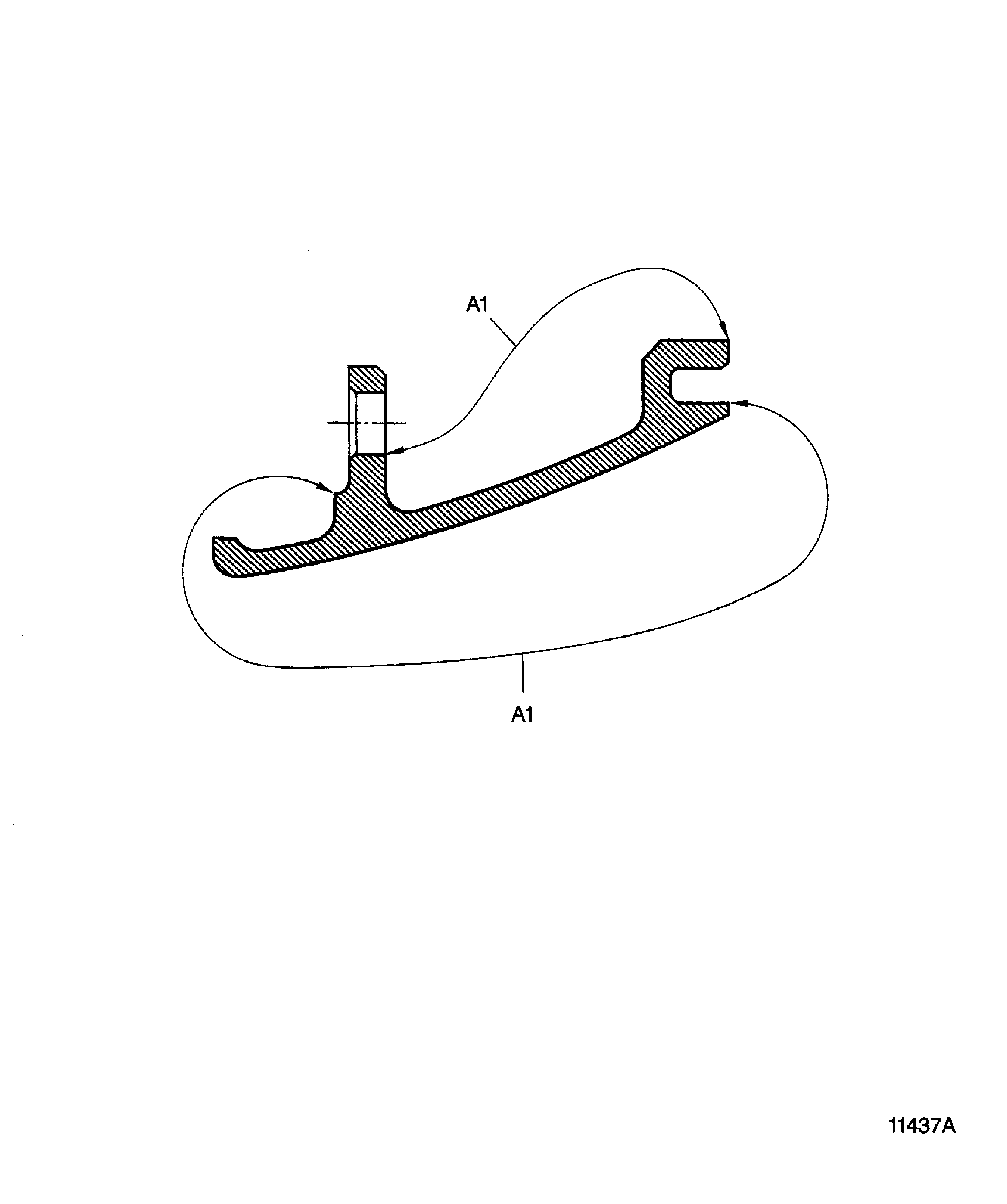

    5. Figure: Touch up coat of the outer diffuser assembly segment

    Touch up coat of the outer diffuser assembly segment

Requirements After Job Completion

Follow-On Conditions

NONE
