TASK 72-50-53-300-008 Turbine Exhaust Case (TEC) - Replace The Damaged Helicoil Inserts, Repair-008 (VRS5392)

DMC:V2500-A0-72-50-5301-02A-920A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-008 Turbine Exhaust Case (TEC) - Replace The Damaged Helicoil Inserts, Repair-008 (VRS5392)

Effectivity

FIG/ITEM

PART NO.

01-001

4A8014

01-001

4A8025

NOTE

Refer to the SPM TASK 70-35-08-300-501 to identify the required tool.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Helicoil insertAGS37328
Helicoil insertAGS373221

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-350-157 Remove the Damaged Helicoil Insert

    1. Refer to: Figure

      2. Put the extracting tool into the insert.

      1. Put the extracting tool into the insert at approximately a quarter of a coil from the end of the insert.

      3. Hit the head of the tool lightly to dig blade into top of coil of the insert.

      1. Use a hammer.

      4. Bearing down hard on hand of tool, turn it slowly counterclockwise.

      1. Maintain hard pressure on handle as insert backs out.

    2. SUBTASK 72-50-53-350-158 Install the New Helicoil Insert

    1. Refer to: Figure

    2. Put the new helicoil insert on the tip of the inserting tool.

    3. Put the tool with the insert above the threaded hole.

      4. Install the helicoil insert into hole. Turn the handle clockwise.

      1. Refer to the SPM TASK 70-35-08-300-501.

        Install the helicoil 1 to 1.5 pitch below the surface.

      5. Break insert tang off at notch.

      1. Use tang break-off tool.

        Remove broken tang.

    3. SUBTASK 72-50-53-220-210 Do an Inspection of the Helicoil Insert

      1. Examine the helicoil insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

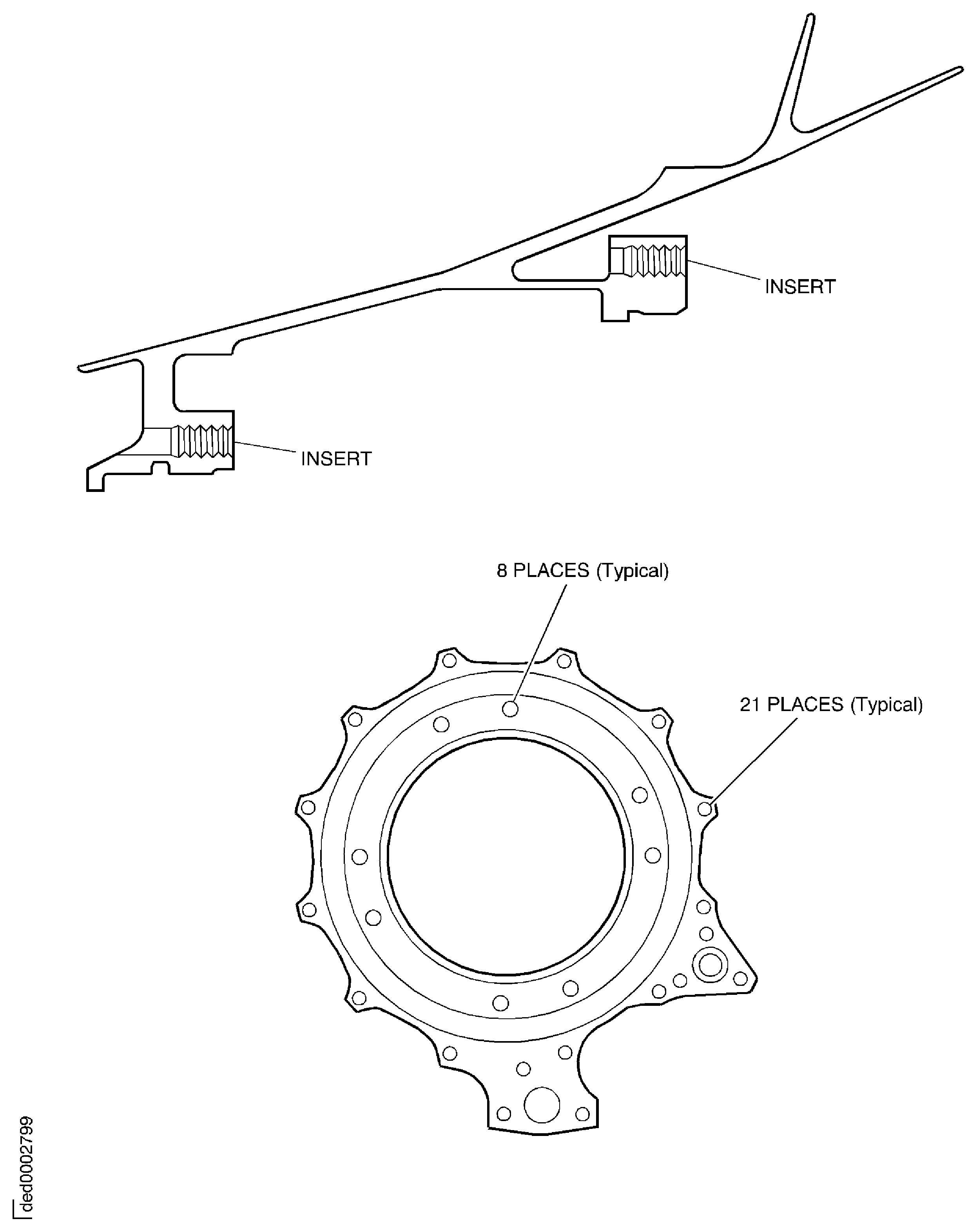

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
