TASK 72-50-53-300-069 Turbine Exhaust Case (TEC) - Replace The Nut Plates, Repair-069 (VRS3256)

DMC:V2500-A0-72-50-5301-10A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-069 Turbine Exhaust Case (TEC) - Replace The Nut Plates, Repair-069 (VRS3256)

Effectivity

FIG/ITEM PART NO.

21-300

2A1209-01

21-300

2A2620-01

21-300

2A3111-01

21-300

2A3183-01

21-300

2A3455-01

21-300

2A3183-101

21-300

2A4258-01

21-300

2A4263-01

Material of component

PART IDENT

SYMBOL

MATERIAL

Turbine Exhaust Case Assembly

-

Nickel alloy

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill
Riveting equipmentLOCALRiveting equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rivet6
Nut Plate3

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-350-096 Remove the Damaged Nut Plates from the Turbine Exhaust Case Assembly

      1. Remove the damaged nut plates from the turbine exhaust case.

      1. Refer to Figure.

        Use a drill to remove the rivets which attach the nut plates.

    2. SUBTASK 72-50-53-230-086 Fluorescent Penetrant Inspect the Turbine Exhaust Case

      1. Fluorescent penetrant inspect the rivet holes and the adjacent surfaces.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Cracks are not permitted.

    3. SUBTASK 72-50-53-350-097 Install New Nut Plate(s)

      1. Install new nut plate(s).

      1. Refer to Figureand SPM TASK 70-39-03-390-501.

        Use new rivets to attach the nut plate(s).

    4. SUBTASK 72-50-53-220-188 Examine the Repair

      1. Inspect the turbine exhaust case after repair.

      1. Refer to Figureand TASK 72-50-53-200-000 (INSPECTION/CHECK-000).

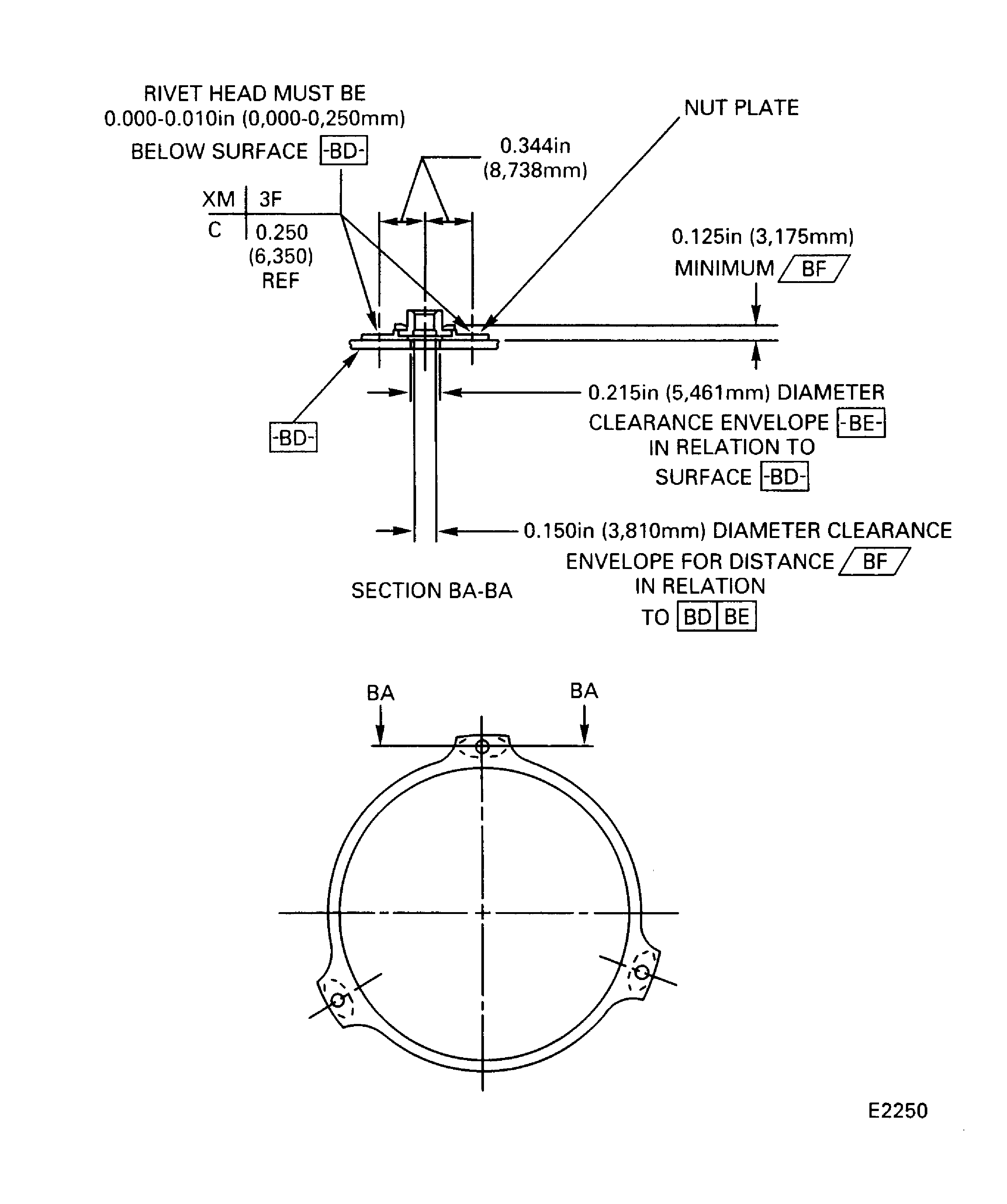

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
