TASK 72-50-53-300-054 Turbine Exhaust Case (TEC) - Replace The Nut(s), Repair-054 (VRS3019)

DMC:V2500-A0-72-50-5301-15A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-054 Turbine Exhaust Case (TEC) - Replace The Nut(s), Repair-054 (VRS3019)

Effectivity

FIG/ITEM PART NO.

21-300

2A1209-01

21-300

2A2620-01

21-300

2A3111-01

21-300

2A3183-01

21-300

2A3455-01

21-300

2A3183-101

21-300

2A4258-01

21-300

2A4263-01

Material of component

PART IDENT

SYMBOL

MATERIAL

Turbine Exhaust Case

-

Corrosion and heat resistant steel

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Clinch Nut73995113

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-350-086 Remove the Damaged Clinch Nut(s) from the Turbine Exhaust Case Assembly

    1. Refer to Figure.

      2. Remove the damaged clinch nut(s) from the turbine exhaust case assembly.

      1. Refer to the SPM TASK 70-35-11-300-501.

        Use a hand drill to remove the clinch nut(s).

    2. SUBTASK 72-50-53-230-081 Fluorescent Penetrant Inspect the Turbine Exhaust Case Assembly

      1. Fluorescent penetrant inspect the holes and the adjacent surfaces.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    3. SUBTASK 72-50-53-350-087 Install New Clinch Nut(s)

    1. Refer to Figure.

      2. Install new clinch nut(s).

      1. Refer to the SPM TASK 70-35-11-300-501.

        Use 1P16567 peening tool.

    4. SUBTASK 72-50-53-220-175 Examine the Repair

    1. Refer to Figure.

      2. Inspect the turbine exhaust case after repair.

      1. Refer to TASK 72-50-53-200-000 (INSPECTION/CHECK-000).

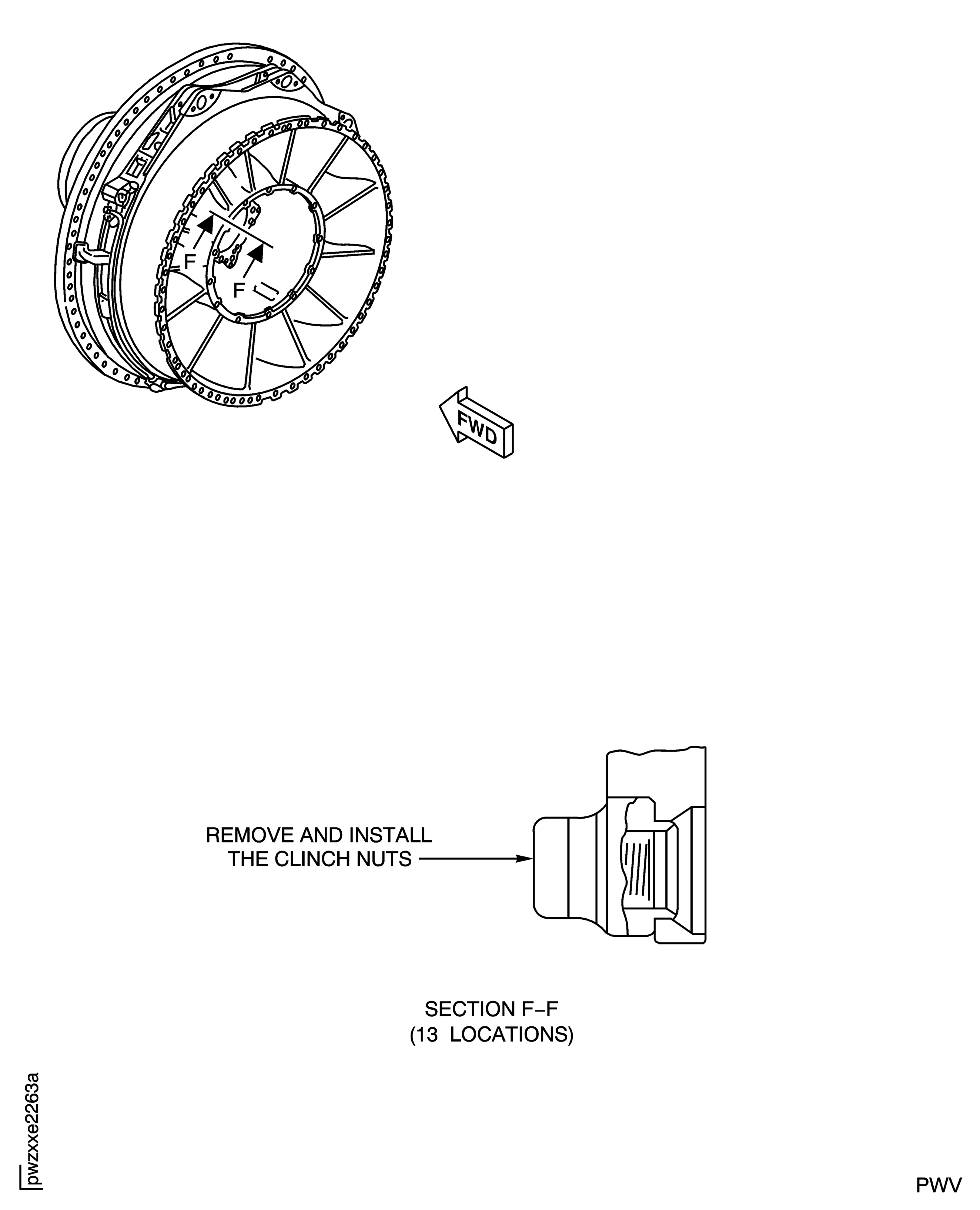

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
