TASK 72-50-53-300-066 No. 5 Bearing Carbon Seal Housing - Nickel Plate The Outer Diameter (Rear Of The Flange), Repair-066 (VRS3121)

DMC:V2500-A0-72-50-5302-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-066 No. 5 Bearing Carbon Seal Housing - Nickel Plate The Outer Diameter (Rear Of The Flange), Repair-066 (VRS3121)

Effectivity

FIG/ITEM

PART NO.

21-020

2A1365

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 5 bearing seal housing

-

Corrosion and heat

resistant iron base alloy

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FurnaceLOCALFurnace
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-092 Machine the Outer Diameter of the No. 5 Bearing Seal Housing

      1. Machine the outer diameter of the seal housing.

      1. Refer to Figure.

        Maintain the 5.741 in. (145.821 mm) minimum diameter. Keep the removal of material to the minimum necessary to remove the damage and to permit sufficient plating thickness.

    2. SUBTASK 72-50-53-230-085 Examine the No. 5 Bearing Seal Housing

      1. Fluorescent penetrant inspect the seal housing.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks are permitted.

    3. SUBTASK 72-50-53-380-055 Apply a Mask to the No. 5 Bearing Seal Housing

      1. Apply a mask to the areas of the seal housing that are not to be plated.

    4. SUBTASK 72-50-53-330-065 Nickel Plate the Outer Diameter of the No. 5 Bearing Seal Housing

      1. Nickel plate the outer diameter of the seal housing.

      1. Refer to Figure and the SPM TASK 70-33-06-300-503.

        Apply nickel plate to a sufficient thickness to permit finish machining.

        Plating outside the repair area is permitted but must be removed.

    2. Remove the mask.

    5. SUBTASK 72-50-53-110-106 Clean the No. 5 Bearing Seal Housing

      1. Clean the seal housing.

      1. Flush the seal housing with cold water.

        Flush the case with hot water.

        Dry the case with air blast.

    6. SUBTASK 72-50-53-370-073 Bake after Nickel Plate

      1. Bake the seal housing after nickel plate.

      1. Put the seal housing into a furnace at 350 to 400 deg F (176 to 204 deg C) for three hours. Do this process as soon as possible in less than four hours after nickel plate.

    7. SUBTASK 72-50-53-220-185 Examine the No. 5 Bearing Seal Housing

      1. Do a visual inspection of the plating for finish, cracks and bond.

      1. The plate must have a constant color. No circumferential cracks are permitted. No roughness or blisters are permitted.

    8. SUBTASK 72-50-53-320-093 Machine the Outer Diameter of the No. 5 Bearing Seal Housing after Nickel Plate

      1. Machine the outer diameter of the seal housing after nickel plate.

      1. Refer to Figure.

    9. SUBTASK 72-50-53-220-186 Examine the Repair

      1. Examine the seal housing after nickel plate.

      1. Refer to Figure and TASK 72-50-53-200-000 (INSPECTION/CHECK-000). Use a 4X magnifying glass to examine for cracks. The normal network of cracks that are emphasized by grinding are permitted.

        The thickness of the plate after finish machining must be a minimum of 0.0006 in. (0.015 mm).

    10. SUBTASK 72-50-53-350-095 Identify the Repair

      1. Mark VRS3121 on the repaired seal housing adjacent to the part number.

      1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

        Use a vibrating marking pencil. Remove high metal caused by marking the number.

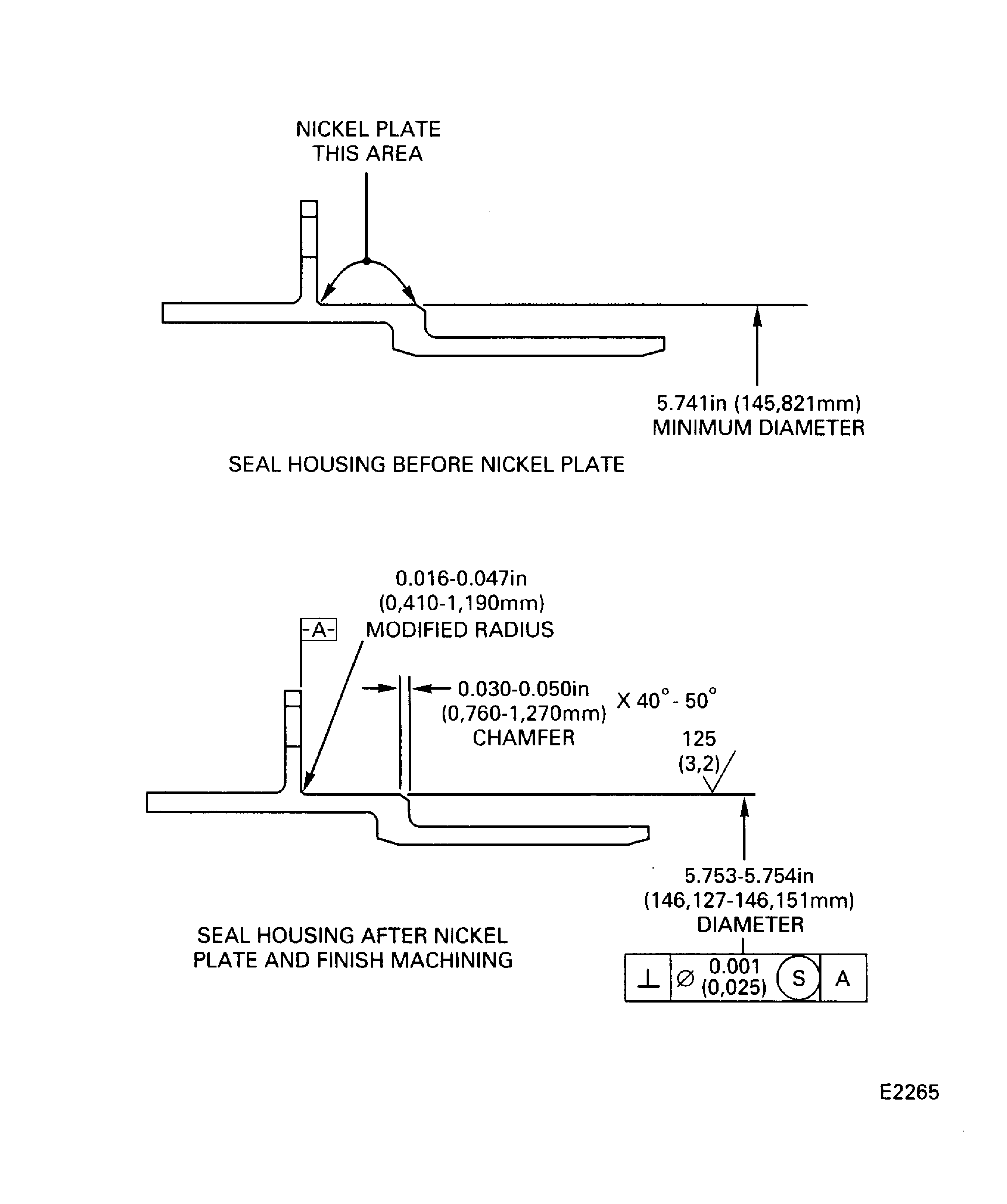

    11. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
