TASK 72-60-10-200-001 Main Gearbox Assembly - Examine The Oil Nozzles, Inspection-001

DMC:V2500-A0-72-60-1000-00A-300A-C|Issue No:002.00|Issue Date:2020-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-10-200-001 Main Gearbox Assembly - Examine The Oil Nozzles, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-110

4B0236

01-160

4B0238

01-200

4B0221

01-200

4B0406

01-240

4B0237

01-280

4P0240

01-280

4P0291

01-311

4B0234

01-350

4B0235

01-390

4B0239

General

This TASK gives the procedure for the inspection of the oil nozzles. For other parts of the main gearbox assembly refer to TASK 72-60-10-200-000 (INSPECTION/CHECK-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-60-10-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have crack test is given in Step

Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversized parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items

Definitions of Damage, TASK 70-02-02-350-501 and TASK 70-02-00-350-501

Record and Control the lives of Parts, TASK 70-05-00-220-501

Inspection of Parts, TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface protection

NOTE

Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
FPI Inspection stationLOCALFPI Inspection station

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-10-230-051 Examine the Oil Nozzle, for Cracks

    1. Clean the parts. Refer to TASK 72-60-10-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Oil Nozzles

        TASK

        1. Cracked

        1. Reject

        2. Through porosity

        1. Reject

    2. SUBTASK 72-60-10-220-117 Examine the Oil Nozzle, Orifices at Location 1

    1. Refer to Figure.

      2. Restricted or distorted

      1. Reject

      3. Presence of contamination

        1. All quantity of contamination that can be completely removed refer to TASK 72-60-10-100-001 (CLEANING-001, CONFIG-001)

        1. Accept

    3. SUBTASK 72-60-10-220-118 Examine the Oil Nozzle, Machined Seal Surface at Location 2

    1. Refer to Figure.

      2. Nicked, scored, dented or scratched 0.0039 in. (0.10 mm) in depth not extended accross the seal surface

      1. Accept

      3. More than Step

      1. Reject

    4. SUBTASK 72-60-10-220-119 Examine the Oil Nozzle, All Remaining Area

      1. Nicked, scored, dented or scratched

        1. All quantity, all length, not more than 0.008 in. (0.20 mm) in depth

        1. Accept

        2. More than Step

        1. Reject

    5. SUBTASK 72-60-10-220-120 Examine the Oil Nozzle, Piloting Diameters Type A at Location 3 and 4

    1. Refer to Figure.

      2. Larger diameter

        1. Between 0.748 and 0.744 in. (19.00 and 18.90 mm)

        1. Accept

        2. Less than 0.744 in. (18.90 mm)

        1. Reject

      3. Smaller diameter

        1. Between 0.588 and 0.584 in. (14.95 ans 14.85 mm)

        1. Accept

        2. Less than 0.584 in. (14.85 mm)

        1. Reject

    6. SUBTASK 72-60-10-220-121 Examine the Oil Nozzle, Piloting Diameters Type B at Location 3 and 4

    1. Refer to Figure.

      2. Larger diameter

        1. Between 0.746 and 0.742 in. (18.95 and 18.85 mm)

        1. Accept

        2. Less than 0.742 in. (18.85 mm)

        1. Reject

      3. Smaller diameter

        1. Between 0.590 and 0.588 in. (14.99 and 14.95 mm)

        1. Accept

        2. Less than 0.588 in. (14.95 mm)

        1. Reject

    7. SUBTASK 72-60-10-220-122 Examine the Oil Nozzle, Piloting Diameters Type C at Location 3 and 4

    1. Refer to Figure.

      2. Larger diameter

        1. Between 0.785 and 0.781 in. (19.95 and 19.85 mm)

        1. Accept

        2. Less than 0.781 in. (19.85 mm)

        1. Reject

      3. Smaller diameter

        1. Between 0.628 and 0.626 in. (15.95 and 15.90 mm)

        1. Accept

        2. Less than 0.626 in. (15.90 mm)

        1. Reject

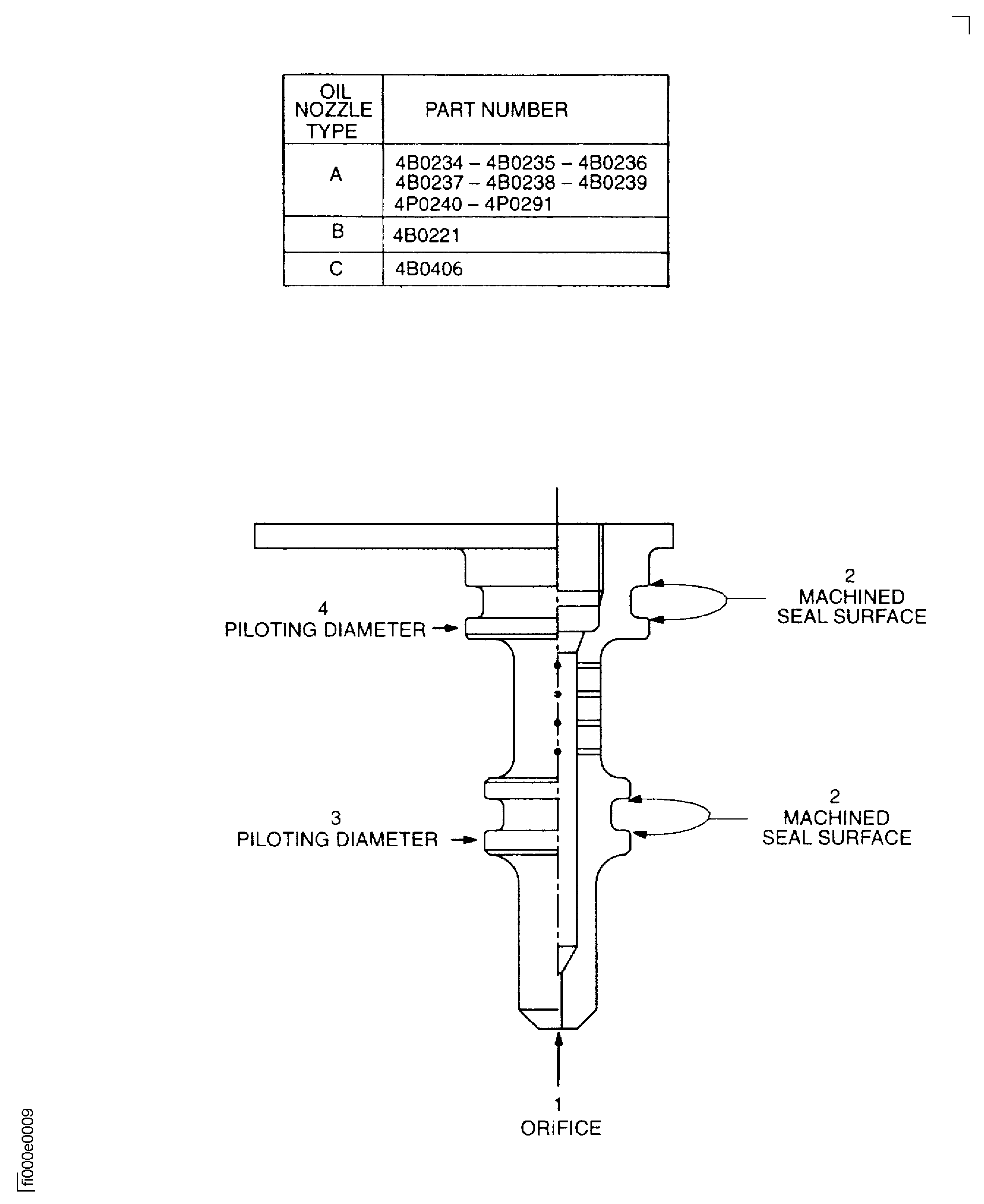

    8. Figure: Locations - oil nozzle (Typical)

    Locations - oil nozzle (Typical)

Requirements After Job Completion

Follow-On Conditions

NONE
