TASK 72-60-21-300-006 Main Gearbox Casing - Replace The Damaged Or Loose Helicoil Inserts, Repair-006 (VRS5345)

DMC:V2500-A0-72-60-2101-02A-920A-C|Issue No:004.00|Issue Date:2016-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-006 Main Gearbox Casing - Replace The Damaged Or Loose Helicoil Inserts, Repair-006 (VRS5345)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0400

02-050

4B0402

02-050

4B0423

Material of component

DESCRIPTION

RR

SYMBOL

MATERIAL

Accessory gearbox

casing

A357/T61 (AMS4219)

Aluminium alloy

General

NOTE

Tools for removal and installation may be purchased from Heli-Coil Product Division/Mite Corporation, Danbury, Connecticut 06108, USA.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Extracting tool - 1227-6LOCALExtracting tool - 1227-6
Break-off tool - 3695-4LOCALBreak-off tool - 3695-4
Inserting tool - 7552-4LOCALInserting tool - 7552-4

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Helicoil insert0AM53MS21209F4-15LA/R
Helicoil insert0AM53MS21209F4-15LA/R
Helicoil insert0AM53MS21209F4-15LA/R
Helicoil insert0AM53MS21209F4-20LA/R

SBE 72-0492

Helicoil insertLOCALMS21209F4-25A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-350-060 Remove the Insert

    1. Refer to Figure.

      2. Apply the extracting tool into the insert.

      1. Drive the extracting tool into the insert at approximately a quarter of a coil from the end of the insert.

      3. Arrange the extracting tool into the insert.

      1. Hit the head of the tool lightly to dig the blade into the top of the coil of the insert.

        Use a hammer.

      4. Complete the removal of the insert.

      1. Bearing down hard on the handle of the tool.

        Turn the tool slowly counterclockwise.

        Maintain a hard pressure on the handle when the insert backs out.

    2. SUBTASK 72-60-21-330-056 Restore the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch-up process if the anodic treatment has been damaged by insert removal.

        Refer to the SPM TASK 70-38-02-300-503.

    3. SUBTASK 72-60-21-350-061 Install the New Insert

    1. Refer to Figure.

      2. Put the insert on the tool.

      1. Put the new helicoil insert on the tip of the inserting tool.

      3. Put the tool with the insert.

      1. Put the tool with the new helicoil insert into the threaded hole.

      4. Install the insert into the hole.

      1. Install the new helicoil insert into the hole.

        Turn the handle clockwise.

        Install the helicoil 1 to 1.5 pitch below surface.

      5. Break the tangs.

      1. Break the insert tang off at notch.

        Use a tang break-off tool.

        Remove broken tangs from blind holes with a magnetized rod.

    4. SUBTASK 72-60-21-330-057 Restore the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch-up process if the anodic treatment has been damaged by insert installation.

        Refer to the SPM TASK 70-38-02-300-503.

    5. SUBTASK 72-60-21-230-056 Crack Test the Repaired Area

      1. Do a crack test on the repaired area.

      1. Refer to the SPM TASK 70-23-01-230-501.

    6. SUBTASK 72-60-21-220-107 Inspect the Insert

      1. Do an inspection of the new helicoil insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

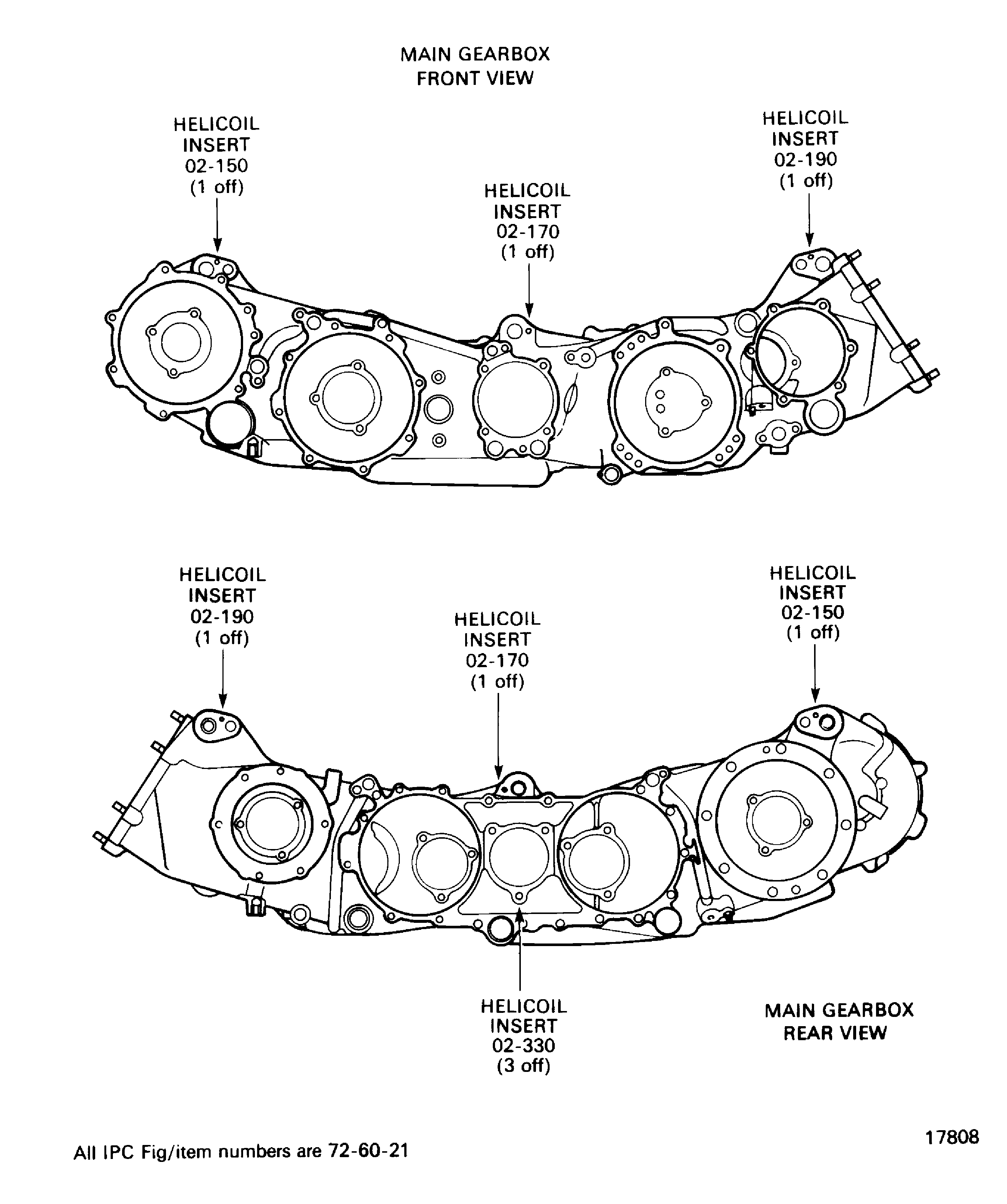

    7. Figure: Replace damaged or loose helicoil inserts

    Replace damaged or loose helicoil inserts

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added Helicoil Insert to spares table. (15VF802)
