TASK 72-60-21-300-024 Main Gearbox Casing - Repair The Mating Surface Of The Oil Tank by Bushing, Repair-024 (VRS5259)

DMC:V2500-A0-72-60-2101-13A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-024 Main Gearbox Casing - Repair The Mating Surface Of The Oil Tank by Bushing, Repair-024 (VRS5259)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0057

02-050

4B0400

02-050

4B0402

02-050

4B0423

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

Aluminum alloy

Bushing

Wrought aluminum base alloy

General

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FreezerLOCALFreezer
IAE 3F10349 Drift, bushing (dia 178)0AM53IAE 3F103491
IAE 3F10440 Pin, guideLOCALIAE 3F10440
Magnifying GlassLOCALMagnifying Glass
OvenLOCALOven
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L00211

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-350-108 Remove the Studs

    1. Refer to Figure and Figure.

      2. Remove the studs and lock rings.

      1. Refer to Repair, VRS5255 TASK 72-60-21-300-004 (REPAIR-004).

    2. SUBTASK 72-60-21-320-097 Machine the Oil Tank Bore in the Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the oil tank bore.

        1. The diameter must be between 7.2425 in. and 7.2441 in. (183.960 mm and 184.000 mm) after the removal of the damage.

        1. Deleted.

    3. SUBTASK 72-60-21-320-098 Machine the Oil Tank Mating Surface of the Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the oil tank mating surface.

      1. Do not remove more than 0.0827 in. (2.100 mm) depth of material from surface.

    4. SUBTASK 72-60-21-220-152 Examine the Gearbox Casing

      1. Inspect the gearbox casing for cracks in the area of the bore.

      1. Use a magnifying glass.

    5. SUBTASK 72-60-21-330-089 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

    6. SUBTASK 72-60-21-350-109 Install the Bushing in the bore

    1. Refer to Figure and Figure.

      2. Install the guide pin.

      1. Put IAE 3F10440 Pin, guide threaded guide pin in the threaded hole of oil tank mating bore adjacent to machined bore.

    3. Install the bushing on the IAE 3F10349 Drift, bushing (dia 178) drift.

      4. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the gearbox casing and/or decrease the temperature of the assembled drift and bushing.

        1. Use an oven and/or a freezer.

        1. Do not increase the temperature of the housing above 284 deg F (140 deg C).

        2. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

          NOTE

          The difference in temperature between the parts must be 216 deg F (120 deg C).

      5. Remove the gearbox casing from the oven and/or the assembled drift and bushing from freezer.

      1. Use protective gloves.

      6. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

        1. Use IAE 3F10349 Drift, bushing (dia 178) drift and an arbor press.

        1. Give sufficient back-up support at bushing bore area to prevent casing distortion when you install the bushing.

    7. Let the parts get to ambient temperature.

    8. Remove the drift and the guide pin.

    7. SUBTASK 72-60-21-320-099 Machine the Inner Diameter of the Bushing

    1. Refer to Figure and Figure.

      2. Machine the inner diameter of the bushing.

        1. The dimension must be between 7.0866 in. and 7.0891 in. (180.000 mm and 180.063 mm).

        1. Deleted.

        2. Chamfer where necessary.

    8. SUBTASK 72-60-21-320-100 Machine the Flange Surface of the Bushing

    1. Refer to Figure and Figure.

      2. Machine the flange surface.

      1. Machine the flange surface of the bushing to the last dimensions.

    9. SUBTASK 72-60-21-330-090 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

    10. SUBTASK 72-60-21-350-110 Install New Studs

    1. Refer to Figure and Figure.

      2. Install the new studs and the new lockrings.

      1. Refer to Repair, VRS5255, TASK 72-60-21-300-004 (REPAIR-004).

    11. SUBTASK 72-60-21-350-111 Identify the Repair

    1. Refer to Figure and Figure.

      2. Make a mark VRS5259 adjacent to the part number.

      1. Refer to SUBTASK 70-09-00-400-001 .

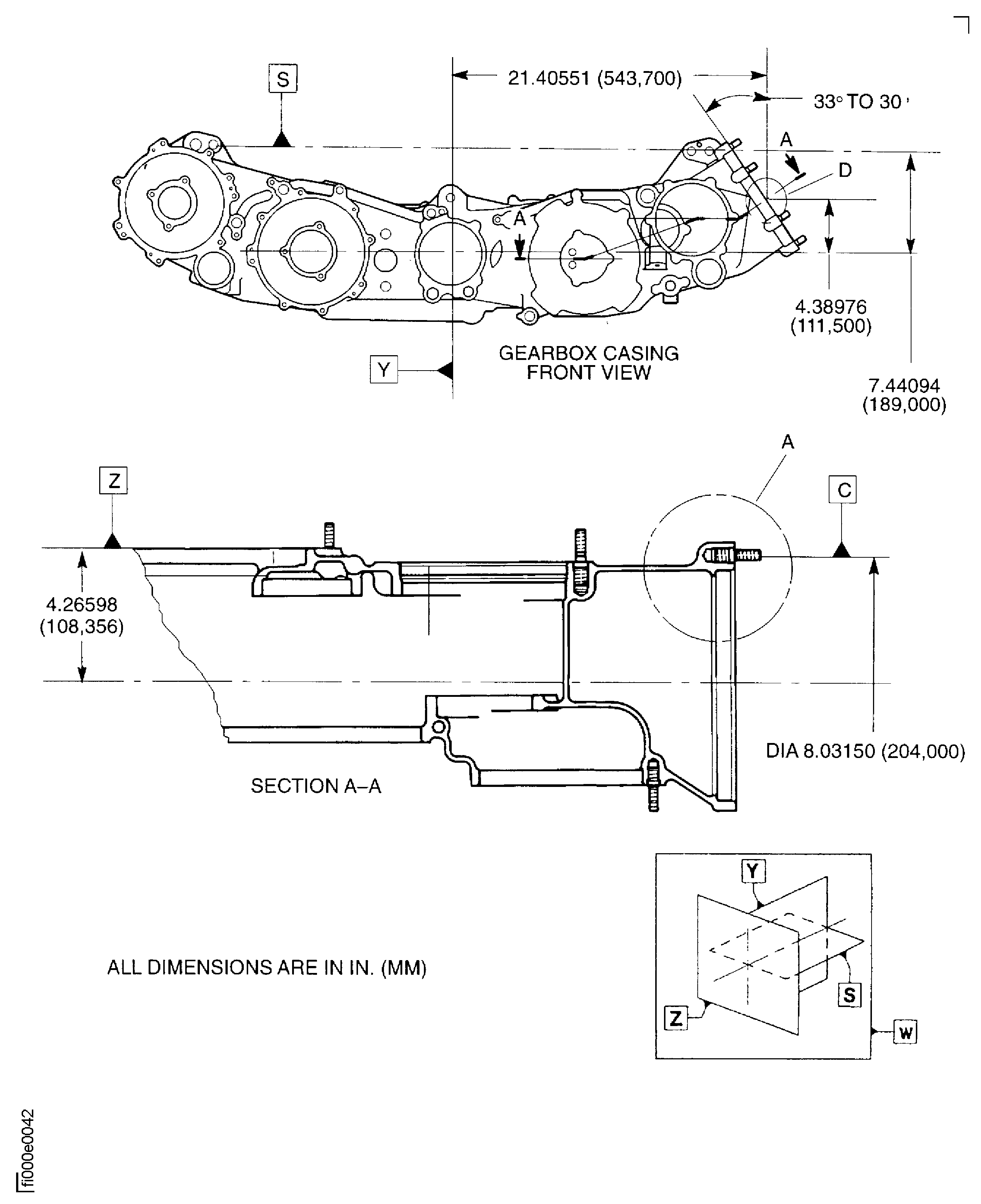

    12. Figure: Repair Details And Dimension

    Sheet 1

    Legend
    Repair Details And Dimension

    Sheet 1

    Close

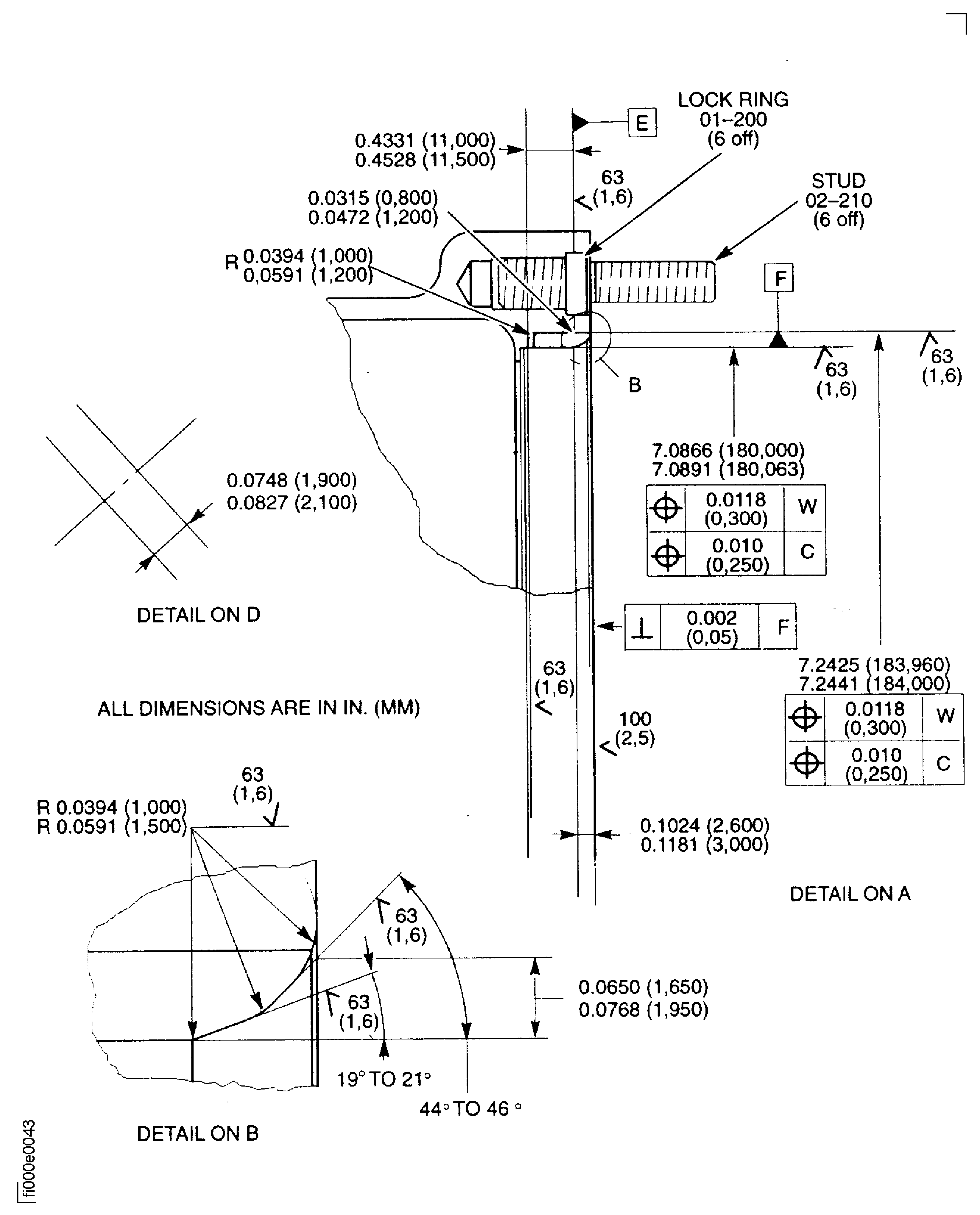

    Figure: Repair Details And Dimension

    Sheet 2

    Legend
    Repair Details And Dimension

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
