TASK 72-60-21-300-032 Main Gearbox Casing - Repair The Fuel Pump Housing Bore By Bushing, Repair-032 (VRS5262)

DMC:V2500-A0-72-60-2101-19A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-032 Main Gearbox Casing - Repair The Fuel Pump Housing Bore By Bushing, Repair-032 (VRS5262)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0057

02-050

4B0400

02-050

4B0402

02-050

4B0423

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

-

Aluminum alloy

Bushing

-

Wrought aluminum base alloy

General

NOTE

Consumable materials are given in the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FreezerLOCALFreezer
IAE 3F10447 Drift, Bushing (DIA 127)0AM53IAE 3F104471
Magnifying GlassLOCALMagnifying Glass
OvenLOCALOven
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L00241

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-320-081 Machine the Fuel Pump Housing Bore in the Gearbox Casing

    1. Refer to Figure, Figure, and Figure.

      2. Machine the housing bore.

        1. The diameter must be between 5.2819 in. and 5.2835 in. (134.160 mm and 134.200 mm) after the removal of the damage.

        1. Deleted.

    2. SUBTASK 72-60-21-220-145 Examine the Gearbox Casing

      1. Inspect the casing for cracks in the area of the bore.

      1. Use a magnifying glass.

    3. SUBTASK 72-60-21-330-076 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-21-350-092 Install the Bushing

    1. Refer to Figure, Figure, and Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10447 Drift, Bushing (DIA 127), 1 off.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the casing and/or decrease the temperature of the assembled drift and bushing.

        1. Use an oven and/or a freezer.

        1. Do not increase the temperature of the housing above 284 deg F (140 deg C).

        2. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

          NOTE

          The difference in temperature between the parts must be 216 deg F (120 deg C).

      4. Remove the casing from the oven and/or the assembled drift and bushing from the freezer.

      1. Use protective gloves.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

        1. Use IAE 3F10447 Drift, Bushing (DIA 127) and an arbor press.

        1. Give sufficient back-up support at bushing bore area to prevent casing distortion when you install the bushing.

    6. Let the parts get the ambient temperature.

    7. Remove the drift and the guide pin.

    5. SUBTASK 72-60-21-320-082 Machine the Inner Diameters of the Bushing

    1. Refer to Figure, Figure, and Figure.

      2. Machine the inner diameters of the bushing.

        1. The dimension of the diameter G must be between 5.039 in. to 5.0409 in. (128.000 mm to 128.040 mm) and the dimension of the diameter H must be between 5.1201 in. to 5.1240 in. (130.050 mm to 130.150 mm).

        1. Deleted.

        2. Chamfer where necessary.

    6. SUBTASK 72-60-21-330-077 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surface of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-21-350-093 Identify the Repair

    1. Refer to Figure, Figure and Figure.

      2. Make a mark VRS5262 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

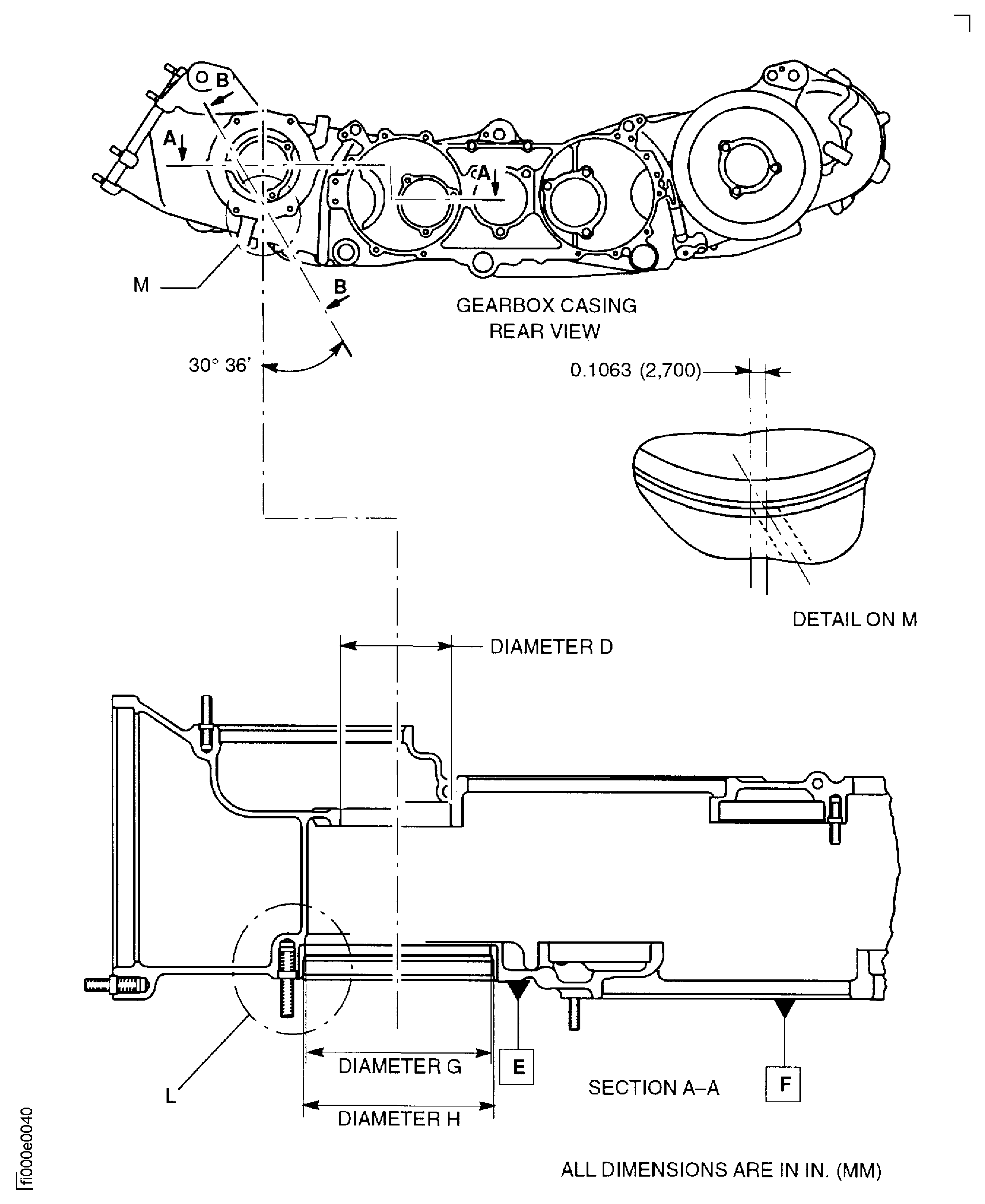

    8. Figure: Repair Details And Dimensions

    Sheet 1

    Legend
    Repair Details And Dimensions

    Sheet 1

    Close

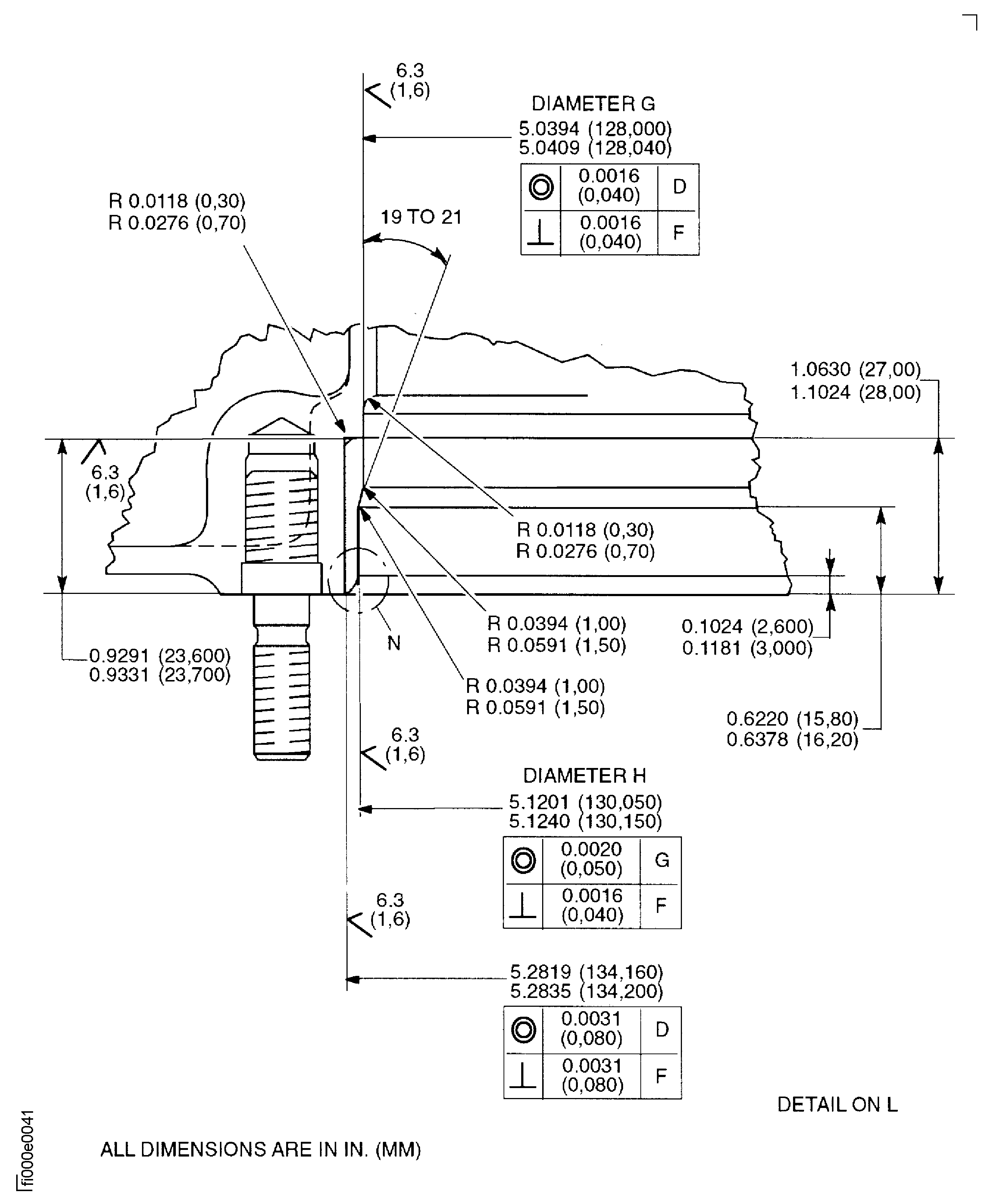

    Figure: Repair Details And Dimensions

    Sheet 2

    Legend
    Repair Details And Dimensions

    Sheet 2

    Close

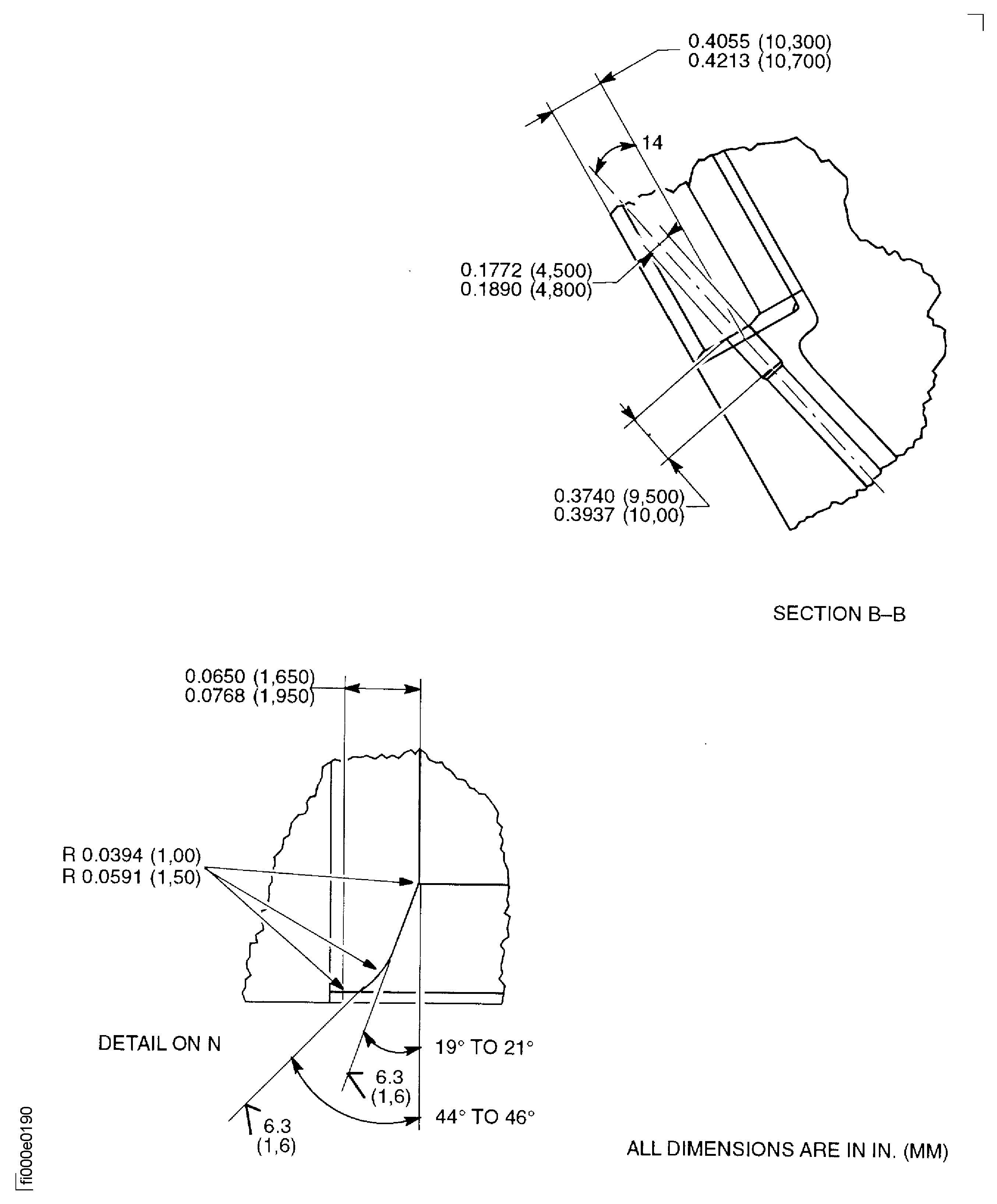

    Figure: Repair Details And Dimensions

    Sheet 3

    Legend
    Repair Details And Dimensions

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
