TASK 72-60-21-300-033 Main Gearbox Casing - Repair The Hydraulic Pump Bearing Bore By Bushing, Repair-033 (VRS5268)

DMC:V2500-A0-72-60-2101-20A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-033 Main Gearbox Casing - Repair The Hydraulic Pump Bearing Bore By Bushing, Repair-033 (VRS5268)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0057

02-050

4B0400

02-050

4B0402

02-050

4B0423

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

-

Aluminum alloy

Bushing

-

Wrought aluminum base alloy

General

NOTE

Consumable materials are given in the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FreezerLOCALFreezer
IAE 3F10336 Drift, bushing (dia 67)0AM53IAE 3F103361
Magnifying GlassLOCALMagnifying Glass
OvenLOCALOven
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bushing4L00071

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-320-130 Machine the Hydraulic Pump Bearing Bore in the Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the bore.

        1. The diameter must be between 2.9118 in. to 2.9134 in. (73.960 mm to 74.000 mm) after the removal of damage.

        1. Deleted.

    2. SUBTASK 72-60-21-220-165 Examine the Gearbox casing

      1. Inspect the casing for cracks in the area of the bore.

      1. Use a magnifying glass.

    3. SUBTASK 72-60-21-330-115 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-21-350-146 Install the Bushing

    1. Refer to Figure and Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10336 Drift, bushing (dia 67), 1 off.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the casing and/or decrease the temperature of the assembled drift and bushing.

        1. Use an oven and/or a freezer.

        1. Do not increase the temperature of the housing above 284 deg F (140 deg C).

        2. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

          NOTE

          The difference in temperature between the parts must be 216 deg F (120 deg C).

      4. Remove the casing from the oven and/or the assembled drift and bushing from the freezer.

      1. Use protective gloves.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

        1. Use IAE 3F10336 Drift, bushing (dia 67) and an arbor press.

        1. Give sufficient back-up support at bushing bore area to prevent casing distortion when you install the bushing.

    6. Let the parts get the ambient temperature.

    7. Remove the drift and the guide pin.

    5. SUBTASK 72-60-21-320-131 Machine the Inner Diameters of the Bushing

    1. Refer to Figure and Figure.

      2. Machine the inner diameters of the bushing.

        1. The dimension must be between 2.7553 in. to 2.7561 in. (69.985 mm to 70.004 mm).

        1. Deleted.

        2. Chamfer where necessary.

    6. SUBTASK 72-60-21-330-116 Apply Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surface of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-21-350-147 Identify the Repair

    1. Refer to Figure and Figure.

      2. Make a mark VRS5268 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, Figure.

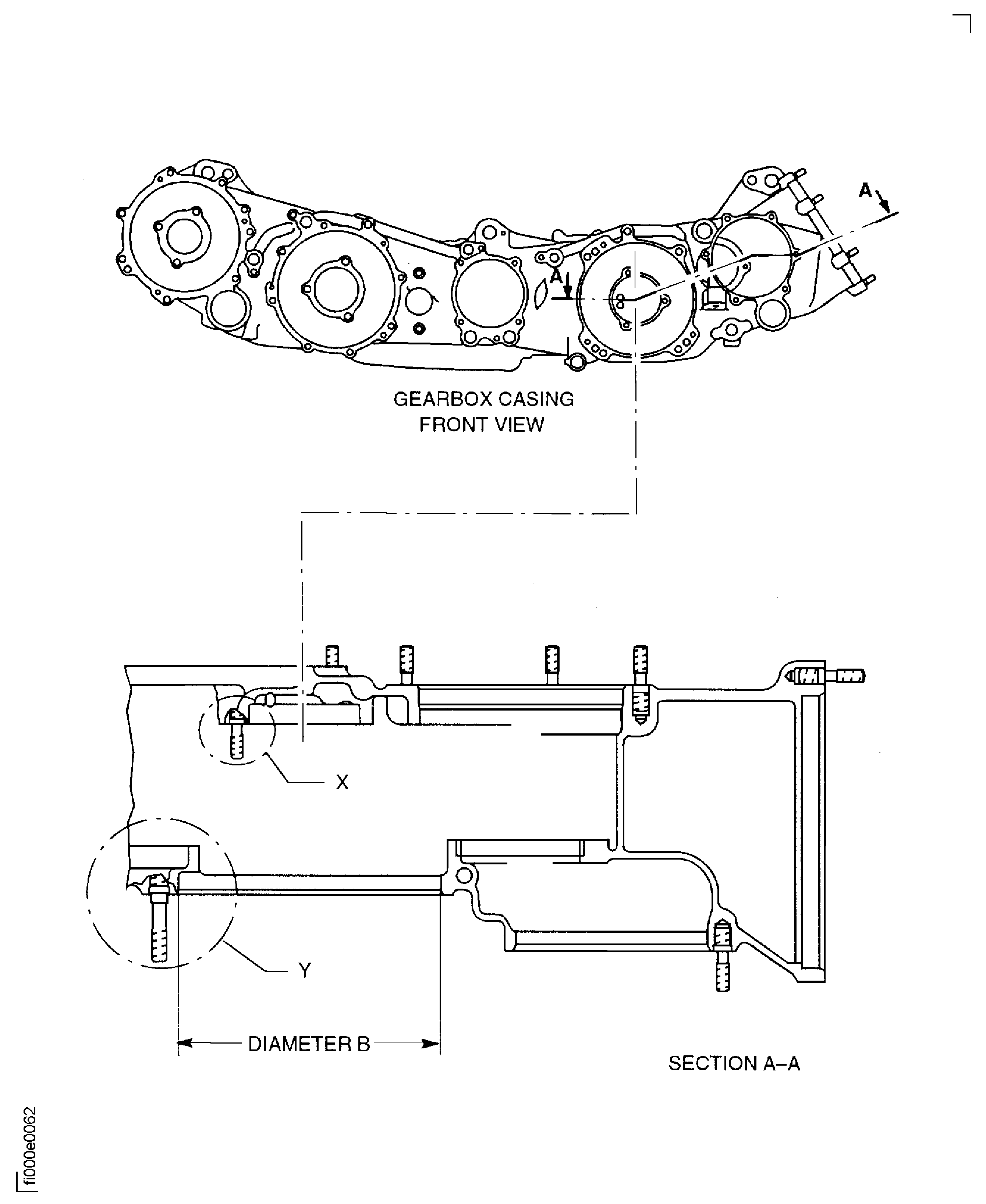

    8. Figure: Repair Details And Dimensions

    Sheet 1

    Legend
    Repair Details And Dimensions

    Sheet 1

    Close

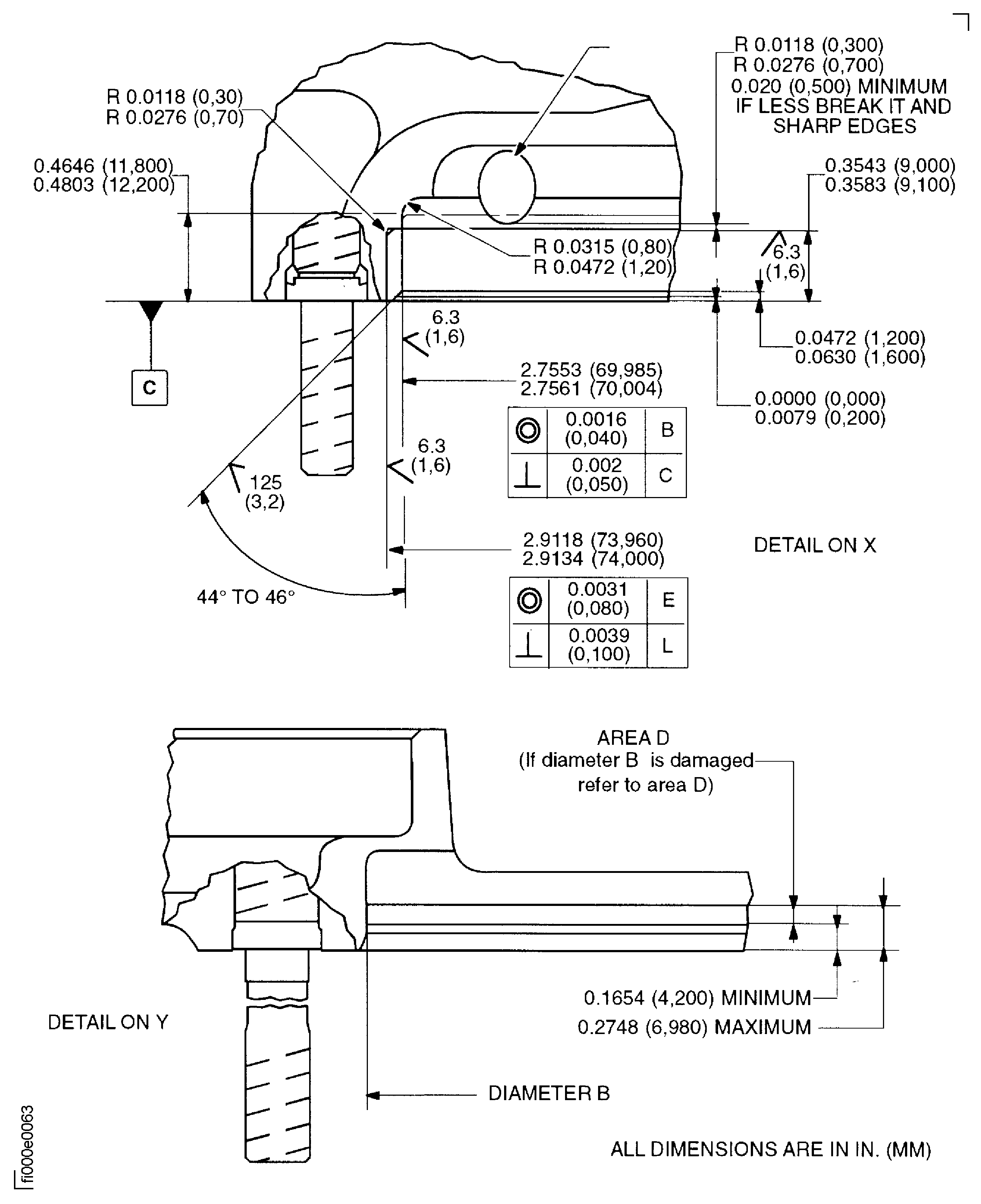

    Figure: Repair Details And Dimensions

    Sheet 2

    Legend
    Repair Details And Dimensions

    Sheet 2

    Close
