TASK 72-60-22-300-007 Starter Drive Gear Housing - Nickel Plate The Seal Mating Surface, Repair-007 (VRS5027)

DMC:V2500-A0-72-60-2204-00A-647A-C|Issue No:002.00|Issue Date:2016-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-007 Starter Drive Gear Housing - Nickel Plate The Seal Mating Surface, Repair-007 (VRS5027)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0248

01-300A

4B0349

01-300B

4B0371

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glassLOCALMagnifying glass

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-350-089 Remove the Threaded Inserts

    1. Refer to Figure.

      2. Remove the inserts.

      1. Refer to Repair, VRS5025, TASK 72-60-22-300-005 (REPAIR-005).

    2. SUBTASK 72-60-22-320-087 Machine the Mating Surface of the Housing

    1. Refer to Figure.

      2. Machine the mating surface.

      1. The preplating dimension must be between 1.0157 to 1.0185 in. (25.800 to 25.870 mm) in relation to surface B, after the removal of the damage. Remove all damage and wear. Keep the removal of the material to the minimum necessary, to remove the damage.

    3. SUBTASK 72-60-22-230-059 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        No cracks are permitted.

    4. SUBTASK 72-60-22-330-072 Nickel Plate the Seal Housing Mating Surface

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503.

        Plate to a sufficient thickness to permit machining to the last dimensions.

        The plating out of the mating surface is permitted, but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-22-370-067 De-embrittle the Housing

      1. Put the housing into an oven at 241 to 260 deg F (116 to 127 deg C) for 60 to 90 minutes.

      1. Do this procedure as soon as possible, in less than 4 hours, after plating.

    6. SUBTASK 72-60-22-220-118 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough or blistering are permitted.

    7. SUBTASK 72-60-22-320-088 Machine the Seal Housing Mating Surface

    1. Refer to Figure.

      2. Machine the mating surface.

      1. The dimension must be between 1.0197 to 1.0276 in. (25.900 to 26.100 mm).

      2. Chamfer, where necessary.

      3. Use grinding machine.

    8. SUBTASK 72-60-22-220-119 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a 4X magnifying glass.

      2. The natural network crack, emphasized by grinding is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining.

    9. SUBTASK 72-60-22-350-090 Install the Threaded Inserts

    1. Refer to Figure.

      2. Install the inserts.

      1. Refer to Repair, VRS5025, TASK 72-60-25-300-005 (REPAIR-005).

    10. SUBTASK 72-60-22-350-091 Identify the Repair

    1. Refer to Figure.

      2. Make a mark VRS5027 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501 SUBTASK 70-09-00-400-001 .

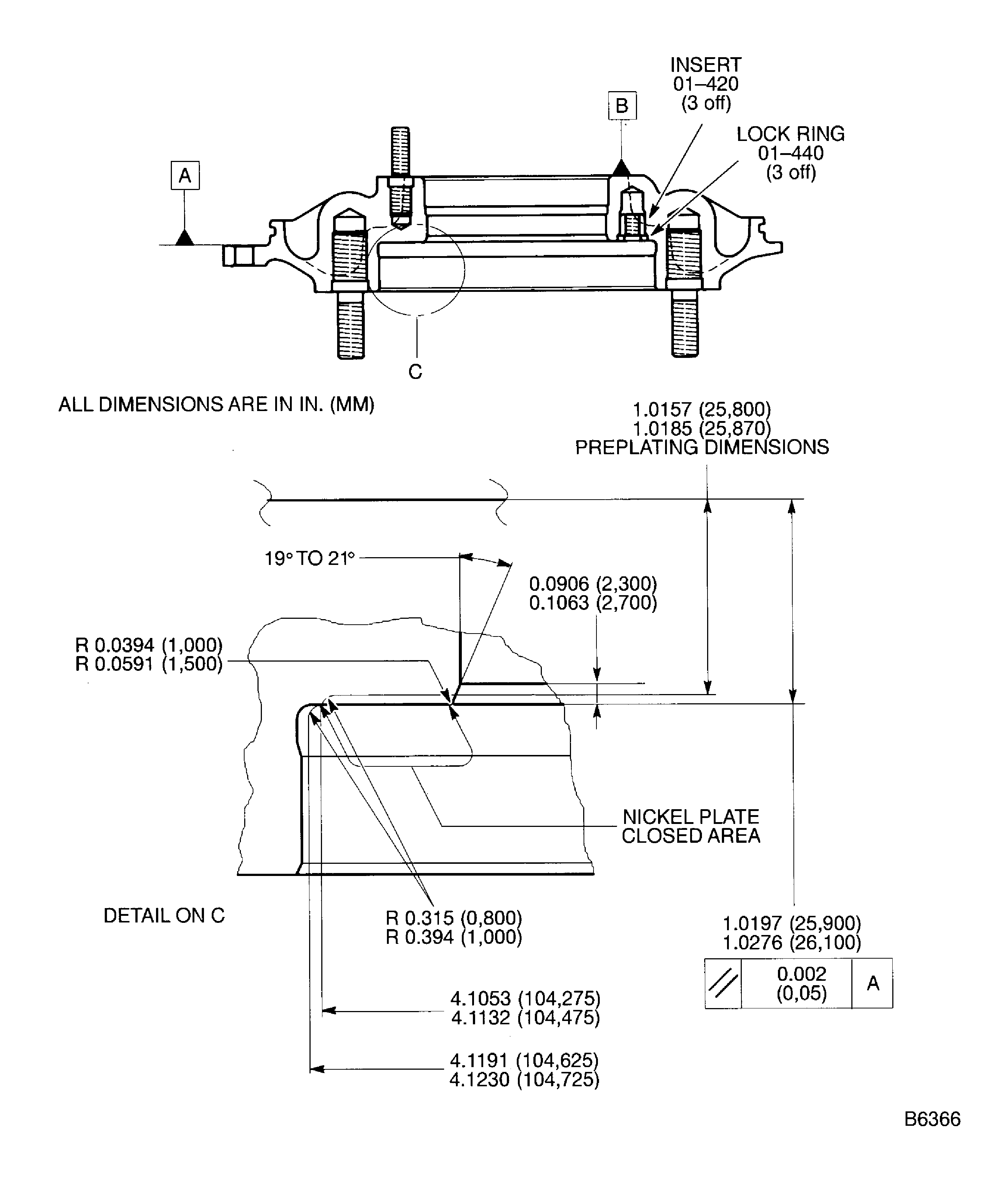

    11. Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added part numbers 4B0349 and 4B0371 to the effectivity table. (11VF844A)
