TASK 72-60-25-300-010 Fuel Pump Drive Gear Housing - Nickel Plate The Mounting Face, Repair-010 (VRS5055)

DMC:V2500-A0-72-60-2504-02A-647A-C|Issue No:002.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-25-300-010 Fuel Pump Drive Gear Housing - Nickel Plate The Mounting Face, Repair-010 (VRS5055)

Effectivity

FIG/ITEM

PART NO.

01-210

4B0087

01-210

4B0351

01-210

4B0373

Material of component

DESCRIPTION

RR

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

General

NOTE

To identify the consumable materials refer to PCI.
Consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Hot air gunLOCALHot air gun
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
PIN0AM534P00971
INSERT0AM534P00403

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-25-350-077 Remove the Pin and the Inserts

    1. Refer to Figure.

      2. Heat the housing adjacent to the pin and the inserts.

      1. Use the Hot air gun 1 off.

      3. For all parts, remove the pin through the hole on reverse side of the housing.

      1. Use a drift.

      4. For pre service bulletin 72-0492 parts, remove the inserts through the holes on reverse side of the housing.

      1. Use a drift.

    5. For post service bulletin 72-0492 and 70-0950 parts, remove the inserts. Refer to Repair, VRS5671 TASK 72-60-25-300-022 (Repair-022 ).

    2. SUBTASK 72-60-25-320-077 Machine the Mounting Face of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Machine the mounting flange.

      1. The preplating dimension must be between 1.5779 in. to 1.5846 in. (40.080 mm to 40.250 mm), after the removal of the damage.

      2. Remove all damage and wear.

      3. Keep the removal of material to the minimum necessary, to remove the damage.

    3. SUBTASK 72-60-25-230-056 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-01-230-501. No cracks are permitted.

    4. SUBTASK 72-60-25-330-068 Nickel Plate the Mounting Face of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions indicated in the reference figure.

      3. The plating out of the closed area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-25-370-063 De-embrittle the Housing

      1. Put the housing into an oven at 266 deg F to 302 deg F (130 deg C to 150 deg C) for 12 hours.

      1. Do this process as soon as possible, in less than 4 hours, after the plating.

    6. SUBTASK 72-60-25-220-078 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    7. SUBTASK 72-60-25-320-078 Machine the Mounting Face of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Machine the mounting face.

      1. The dimension must be between 1.5728 in. to 1.5768 in. (39.950 mm to 40.050 mm). FIR in relation to surface A and diameter B, C. Clean up the edges of groove and chamfer where necessary.

    8. SUBTASK 72-60-25-220-079 Examine the Nickel Plated Area

      1. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining.

    9. SUBTASK 72-60-25-350-078 Install the New Pin and the New Inserts

    1. Refer to Figure.

    2. Verify that a tight fit exists between the outer diameter of the new pin/inserts and the corresponding holes in the housing.

      3. Heat the housing adjacent to the holes.

      1. Use the Hot air gun 1 off.

    4. Drift in a new pin.

    5. For pre service bulletin 72-0492 parts, drift in the three inserts.

    6. For post service bulletin 72-0492 and 70-0950 parts, install the inserts. Refer to Repair, VRS5671 TASK 72-60-25-300-022 (Repair-022 ).

    10. SUBTASK 72-60-25-350-079 Record the Repair

      1. Vibro engrave VRS5055 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

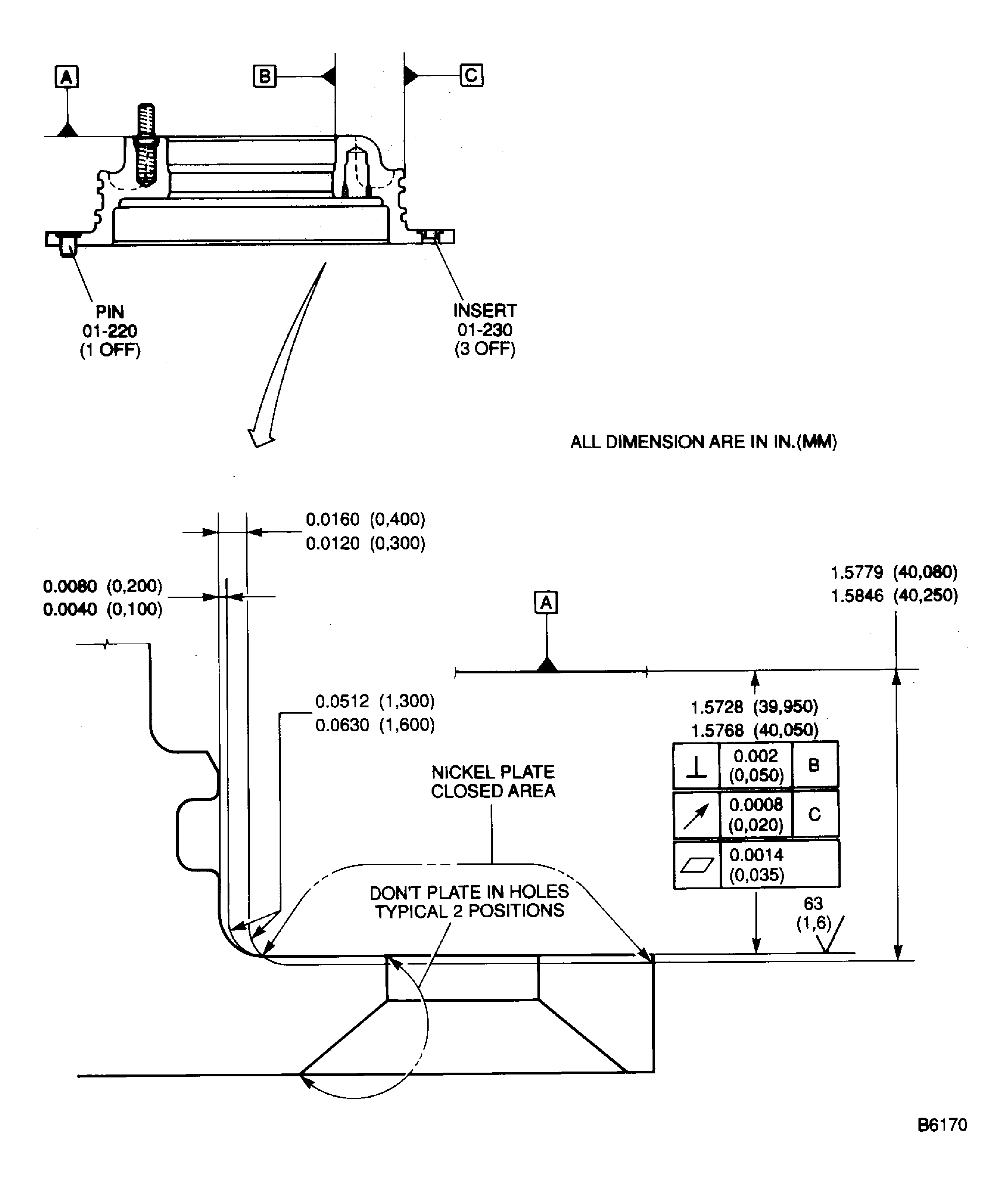

    11. Figure: Nickel plate the mounting face of the fuel pump drive housing

    Nickel plate the mounting face of the fuel pump drive housing

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to add PN 4B0351 and PN 4B0373. (17VF826)
