TASK 72-60-28-300-001 Generator Drive Gear Rotating Seal Ring - Nickel Plate Repair The Piloting Diameter, Repair-001 (VRS5003)

DMC:V2500-A0-72-60-2803-00A-647A-C|Issue No:002.00|Issue Date:2015-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-28-300-001 Generator Drive Gear Rotating Seal Ring - Nickel Plate Repair The Piloting Diameter, Repair-001 (VRS5003)

Effectivity

FIG/ITEM

PART NO.

01-350

7T0457

01-350

7T0477

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Rotating ring

-

AISI 440C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying glassLOCALMagnifying glass

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-28-320-051 Machine the Piloting Diameter of the Rotating Ring

    1. Refer to Figure.

      2. Machine the piloting diameter. Remove all the damage and wear. The piloting diameter damage must be between 2.0898 and 2.0957 in. (53.08 and 53.23 mm) after the removal of damage.

      1. Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-28-240-051 Examine the Rotating Ring

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501. No cracks are permitted.

    3. SUBTASK 72-60-28-330-051 Nickel Plate the Piloting Diameter of the Rotating Ring

    1. Refer to Figure.

      2. Mask the areas of the rotating ring not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-06-300-503.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions. Refer to location 4.

      3. The plating out of the area C at location 3 is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the rotating ring.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 72-60-28-370-051 De-embrittle the Rotating Ring

      1. Put the rotating ring into a furnace at 349 to 400 deg F (176 to 204 deg C) for 4 hours.

      1. Do this procedure as soon as possible in 4 hours after the plating.

    5. SUBTASK 72-60-28-220-054 Examine the Rotating Ring

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    6. SUBTASK 72-60-28-320-052 Machine the Piloting Diameter of the Rotating Ring

    1. Refer to Figure.

      2. Machine the piloting diameter. The last dimension of the piloting diameter must be between 2.0878 and 2.0886 in. (53.03 and 53.05 mm).

      1. Clean up the edges of the groove and chamfers, where necessary.

    7. SUBTASK 72-60-28-220-055 Examine the Nickel Plated Areas

      1. Do the visual inspection of the plated areas for cracks and adhesion.

      1. Use a 4X magnifying glass.

      2. The natural network crack, emphasized by grinding is permitted.

    2. Measure the thickness of the plating. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    8. SUBTASK 72-60-28-350-051 Record the Repair

    1. Electrochemical etch VRS5003 adjacent to the part number.

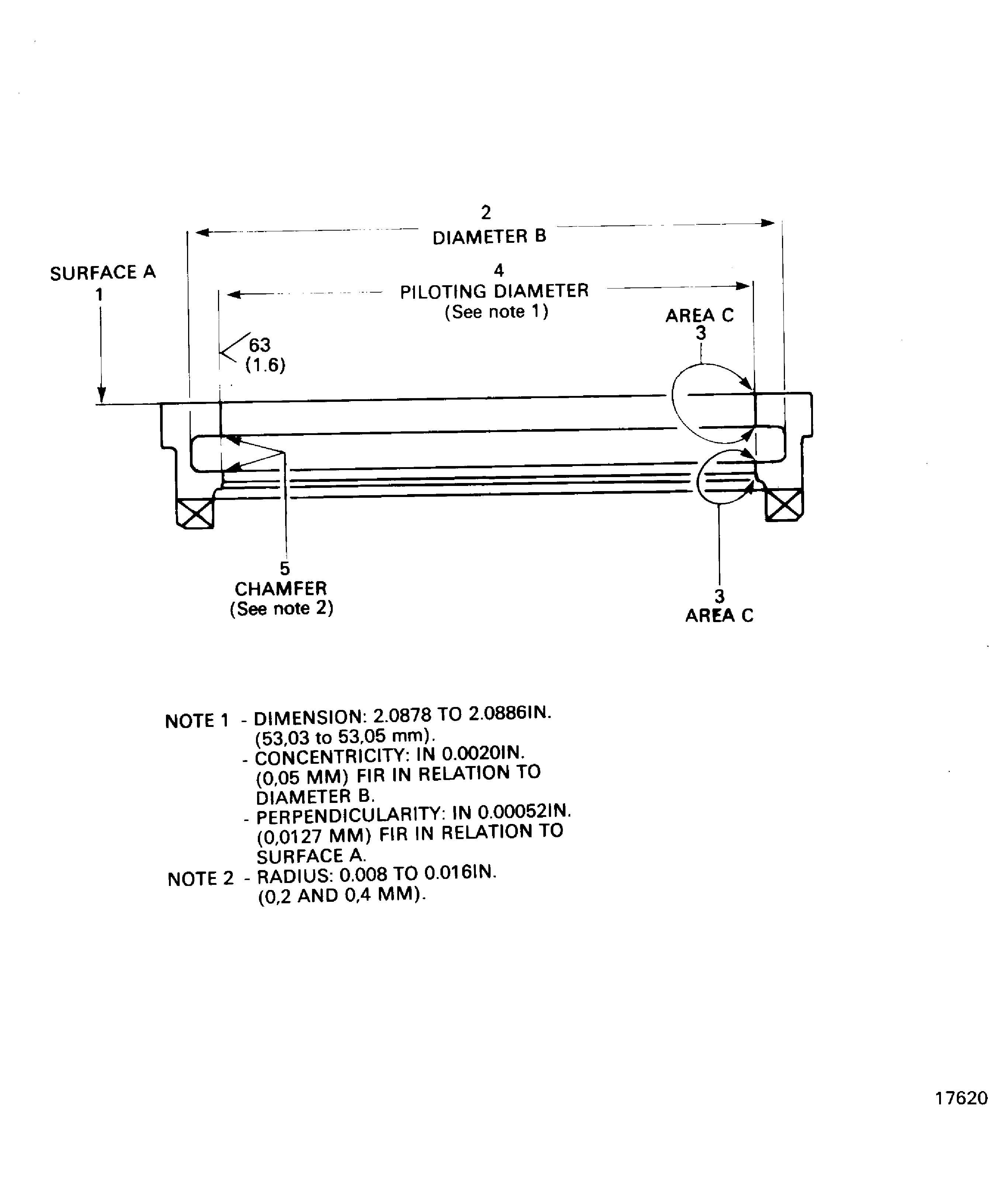

    9. Figure: Repair details and dimension

    Repair details and dimension

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised SPM task reference. (87VF809D)
