TASK 72-60-29-300-040 Deoiler Impeller - Repair The Rear Hub Inner Diameter, Repair-040 (VRS5657)

DMC:V2500-A0-72-60-2905-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-29-300-040 Deoiler Impeller - Repair The Rear Hub Inner Diameter, Repair-040 (VRS5657)

Effectivity

FIG/ITEM

PART NO.

01-190

4B7257

01-190

4B7326

Material of component

PART IDENT

SYMBOL

MATERIAL

Deoiler Impellor

Steel AMS 5355

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glassLOCALMagnifying glass
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 02-017 WAXLOCALCoMat 02-017

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-29-320-084 Machine the Deoiler Impellor

    1. Refer to Figure.

      2. Machine the deoiler impellor.

      1. Remove all damage and wear.

      2. Keep removal of material to the minimum necessary to remove the damage.

      3. The preplating diameter must be 2.1347 to 2.1447 in. (54.222 to 54.474 mm), surface rough must be 32 microinch (0.8 micron) before plating.

    2. SUBTASK 72-60-29-210-057 Nital Etch the Rear Hub Inner Diameter of the Deoiler Impellor

      1. Do the Nital etch to find sign of burned metal.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the deoiler impellor if there is signs of burnt metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    3. SUBTASK 72-60-29-370-069 Do the De-embrittlement Treatment

      1. Put the Deoiler Impellor into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this process as soon as possible in less than 2 hours after each etch.

    4. SUBTASK 72-60-29-380-057 Shot-peen the part

    1. Refer to Figure.

      2. Shot-peen diameter must be plated to an intensity 0.008 to 0.012A.

      1. Refer to the SPM TASK 70-38-04-300-503.

    3. NOTE

      Before shot-peen, properly mask all areas not to be peened. Shot-peening visually check, area to be plated must be completely shot-peened.

    5. SUBTASK 72-60-29-330-069 Chromium Plate the Rear Hub Inner Diameter of the Deoiler Impellor,.nd 72-60-29-990-055-002

    1. Refer to Figure.

      2. Mask properly the areas not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimension.

      3. The plating outside of the enclosed area is permissible but must be removed.

    4. Remove the mask.

      5. Clean and dry the deoiler impellor.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    6. SUBTASK 72-60-29-370-070 De-embrittle the Deoiler Impellor

      1. Put the deoiler impellor into the oven at 349 to 399 deg F (176 to 204 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    7. SUBTASK 72-60-29-220-154 Examine the plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have constant color.

      2. No bubbles or sign of burned metal permitted.

    8. SUBTASK 72-60-29-320-085 Machine the part

      1. Machine the part.

      1. The last dimensions of the diameter must be 2.1327 to 2.1339 in. (54.170 to 54.200 mm).

    9. SUBTASK 72-60-29-220-155 Examine the Chromium Plated Area

      1. Do the visual inspection of the chromium plated area for cracks and adhesion.

      1. Use a 5X magnifying glass.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm), after last machining.

    10. SUBTASK 72-60-29-440-063 Balance the Deoiler Impellor

    1. Refer to Figure.

      2. Balance the deoiler impellor.

      1. Dynamic unbalance must not exceed 0.014 Oz.in. (10 g.mm) max each side when supported on diameter A and diameter B.

    11. SUBTASK 72-60-29-350-085 Record the Repair

      1. Vibro-engrave VRS5657 adjacent to the part number.

      2. Remove the metal lifted marking the number.

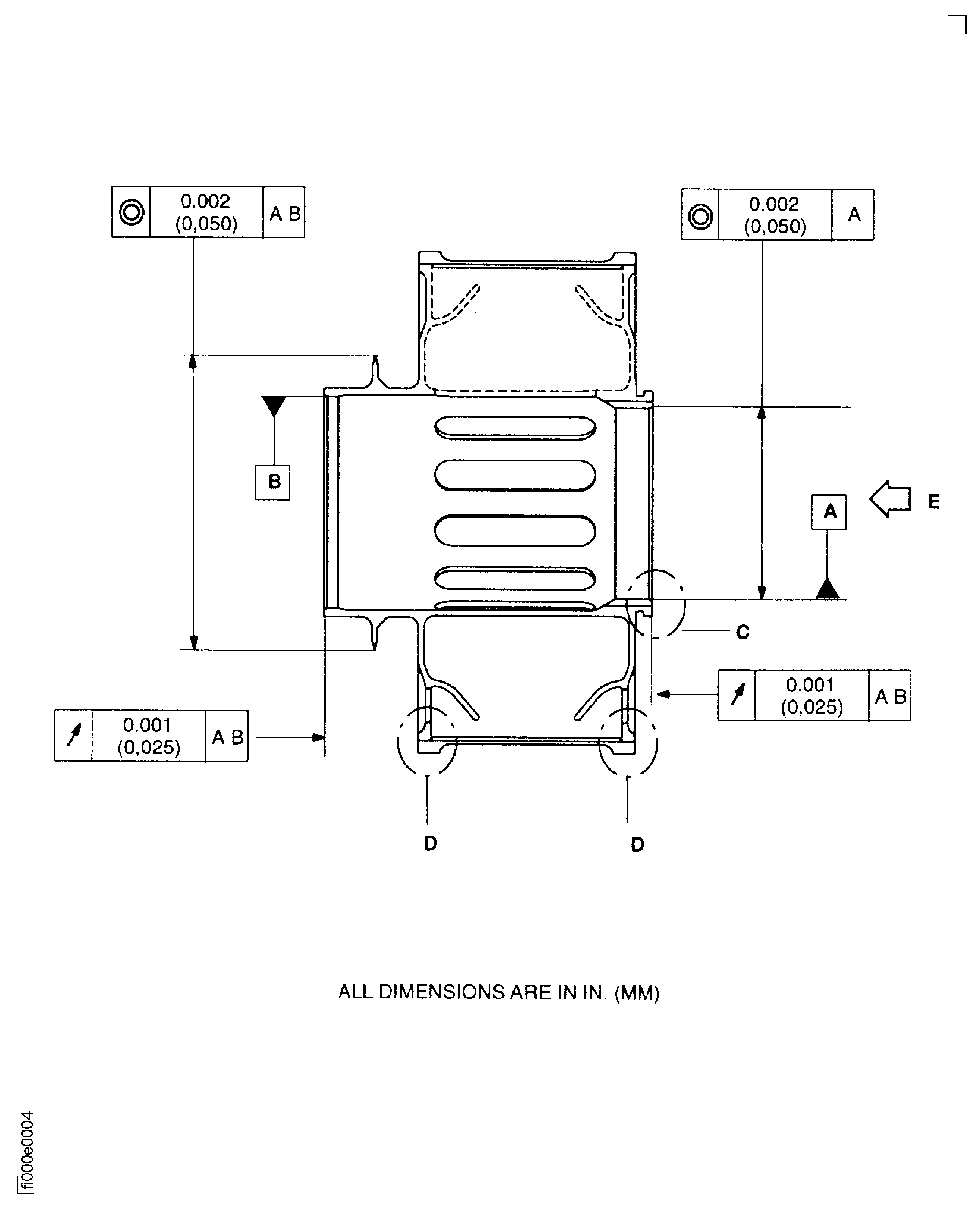

    12. Figure: Chromium plate the Rear Hub Inner Diameter of the Deoiler Impellor

    Sheet 1

    Legend
    Chromium plate the Rear Hub Inner Diameter of the Deoiler Impellor

    Sheet 1

    Close

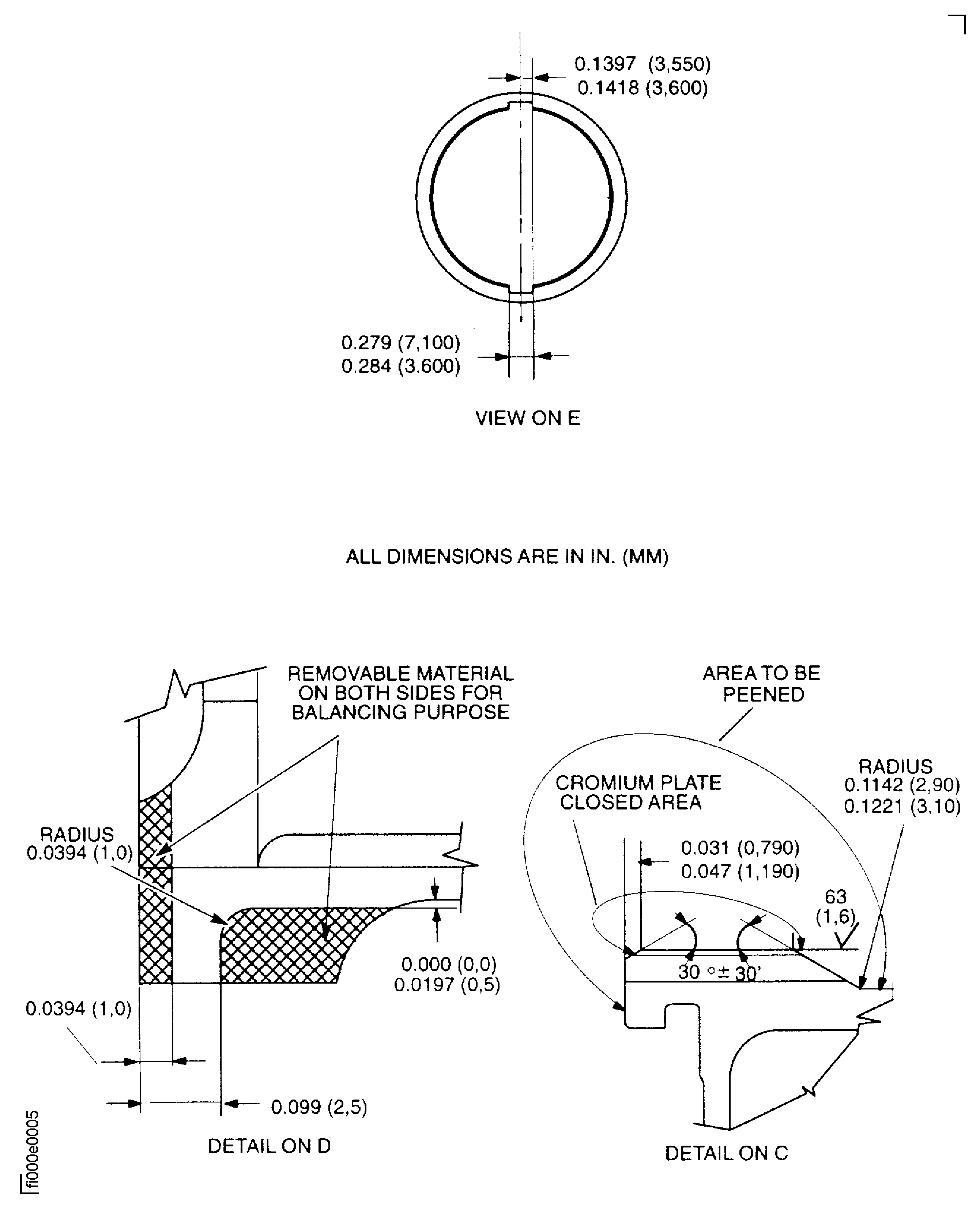

    Figure: Chromium plate the Rear Hub Inner Diameter of the Deoiler Impellor

    Sheet 2

    Legend
    Chromium plate the Rear Hub Inner Diameter of the Deoiler Impellor

    Sheet 2

    Close
