TASK 72-60-31-440-001 Deoiler Case Assembly - Assemble The Deoiler Case, Assembly-001

DMC:V2500-A0-72-60-3100-00A-710A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-31-440-001 Deoiler Case Assembly - Assemble The Deoiler Case, Assembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and the SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-039 ENGINE OIL, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-44-01-400-501.

After assembly apply CoMat 07-012 AIR DRYING ENAMEL air drying touch-up enamel to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to the SPM TASK 70-38-06-380-501 .

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
OvenLOCALOven
Swivel viseLOCALSwivel vise
IAE 1F10071 Pusher0AM53IAE 1F100711
IAE 1F10228 Base0AM53IAE 1F102281

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-119 LOCKWIRELOCALCoMat 02-119
CoMat 07-012 AIR DRYING ENAMEL0AM53CoMat 07-012
CoMat 10-039 ENGINE OILLOCALCoMat 10-039

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Packing1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-31-440-051 Install the Carbon Seal in to the Seal Housing

    1. Refer to Figure.

    2. Put the seal housing in to oven and increase the temperature to 250 deg F (121 deg C) maximum.

    3. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      Install the seal housing on the adapter of IAE 1F10071 Pusher 1 off with the smaller ID to the bottom.

    4. Put the carbon seal over the seal housing with the carbon face to the top. Push the pusher until the carbon seal is fully installed in to the seal housing.

    5. Remove the pusher and the seal housing from the adapter.

    2. SUBTASK 72-60-31-440-052 Install the Strainer and the Plug on the Deoiler Case

    1. Refer to Figure.

    2. Install IAE 1F10228 Base 1 off on swivel vise.

    3. Install the deoiler case on the base. Attach with the socket head capscrews.

    4. Install ENGINE-DEOILER CASE AND COVER (72-60-31, 01-240) packing 1 off in to the groove on the plug.

    5. Install the plug in to the seat on the deoiler case. Torque to 53.10 to 70.80 lbfin (6 to 8 Nm). Safety with CoMat 02-119 LOCKWIRE.

    6. Turn the base until the seat of the strainer is to the top.

    7. Install the strainer in to the seat on the deoiler case.

    8. Remove the deoiler case from the base.

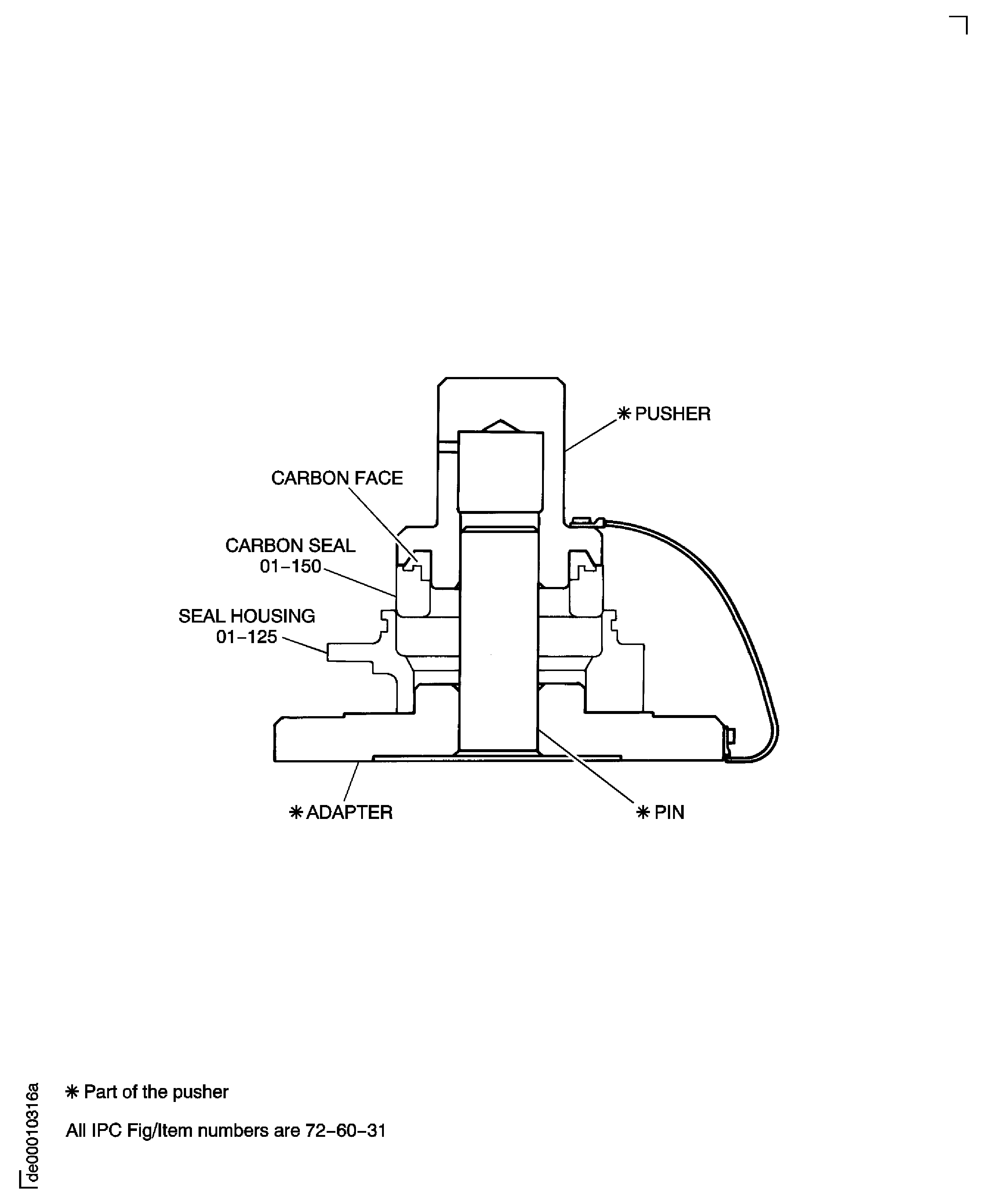

    3. Figure: Install the Carbon Seal in to the Seal Housing

    Install the Carbon Seal in to the Seal Housing

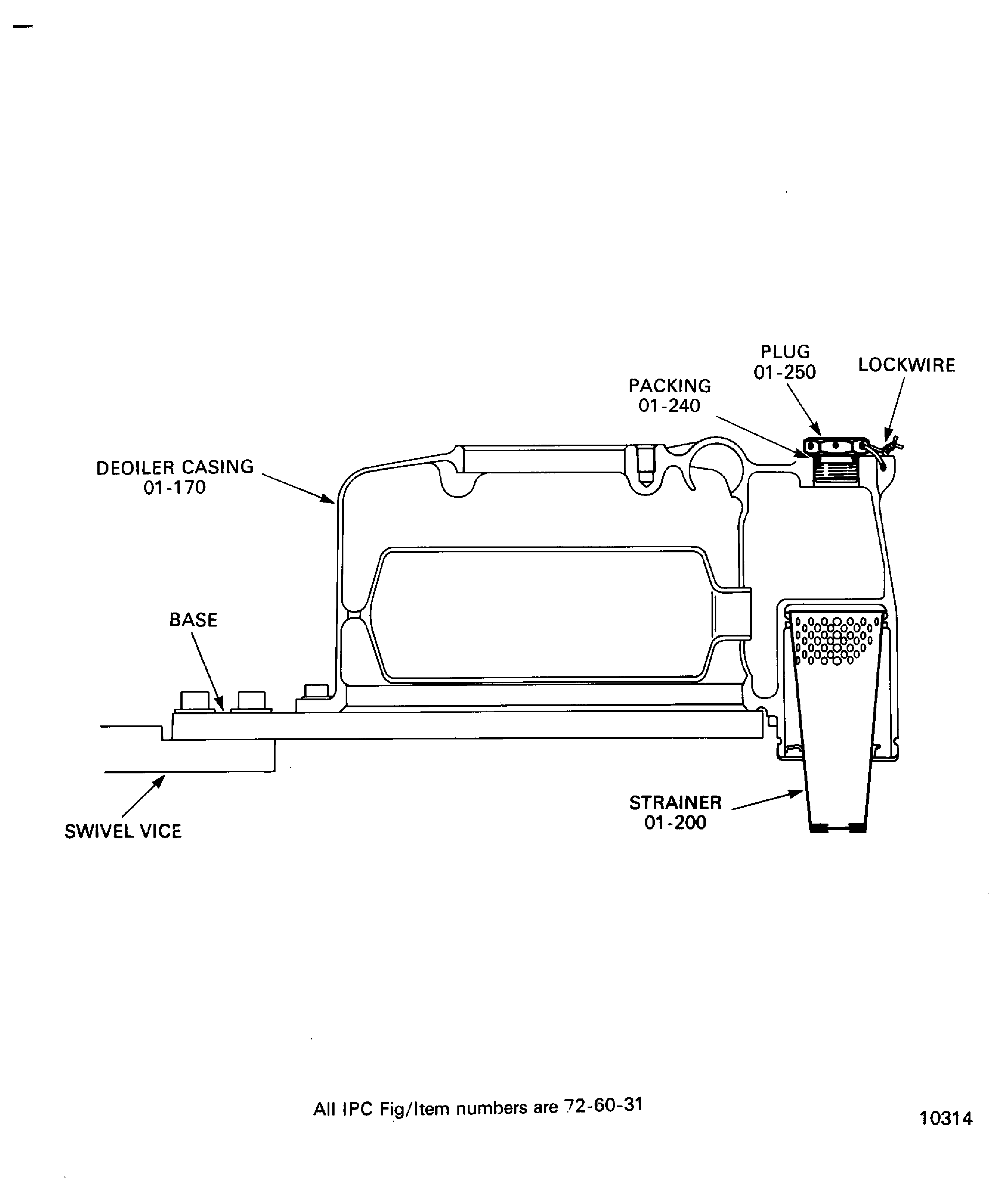

    Figure: Install the strainer and the plug on the deoiler case

    Install the strainer and the plug on the deoiler case

Requirements After Job Completion

Follow-On Conditions

NONE
