TASK 72-60-32-300-020 Replace the Damaged or Loose Helicoil Inserts in the Angle Gearbox Support, Repair-020 (VRS5675)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| 1227-6 Extracting tool | LOCAL | 1227-6 Extracting tool | ||
| Tang removal tool | LOCAL | 3695-4 | ||
| Installation tool | LOCAL | 7552-4 |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Helicoil insert | 0AM53 | MS21209F4-20L | AR | 01-360 |
| Helicoil insert | 0AM53 | MS21209F4-20L | AR | 01-400 |
| Helicoil insert | 0AM53 | MS21209F4-20L | AR | 01-620 |
Safety Requirements
NONEProcedure
Refer to Figure.
Drive the 1227-6 Extracting tool into the insert at approximately a quarter of a coil from the end of the insert.
Apply the 1227-6 Extracting tool into the insert.
Hit the head of the tool lightly to dig the blade into the top of the coil of the insert.
Use a hammer.
Arrange the 1227-6 Extracting tool into the insert.
Bearing down hard on the handle of the tool.
Turn the tool slowly counterclockwise.
Maintain a hard pressure on the handle when the insert backs out.
Complete the removal of the insert.
SUBTASK 72-60-32-350-084 Remove the Insert
Do the touch up process if the anodic treatment has been damaged by insert removal.
Refer to TASK 70-38-02-300-503.
Check the surface.
SUBTASK 72-60-32-330-001 Restore the Damaged Anodic Treatment
Refer to Figure.
Put the new helicoil insert on the tip of the Installation tool.
Put the insert on the tool.
Put the tool with the new helicoil insert into the threaded hole.
Put the tool with the insert.
Install the new helicoil insert into the hole.
Turn the handle clockwise.
Install the helicoil 1 to 1.5 pitch below surface.
Install the insert into the hole.
Break the insert tang off at notch.
Use a tang break-off tool.
Remove broken tangs from blind holes with a magnetized rod.
Break the tangs.
SUBTASK 72-60-32-350-001 Install the New Insert
Do the touch up process if the anodic treatment has been damaged by insert installation.
Refer to TASK 70-38-02-300-503.
Check the surface.
SUBTASK 72-60-32-330-002 Restore the Damaged Anodic Treatment
Refer to TASK 70-23-01-230-501.
Do a crack test on the repaired area.
SUBTASK 72-60-32-230-001 Crack Test the Repaired Area
Refer to TASK 70-35-08-300-501.
Do an inspection of the new helicoil insert.
SUBTASK 72-60-32-220-002 Inspect the Insert

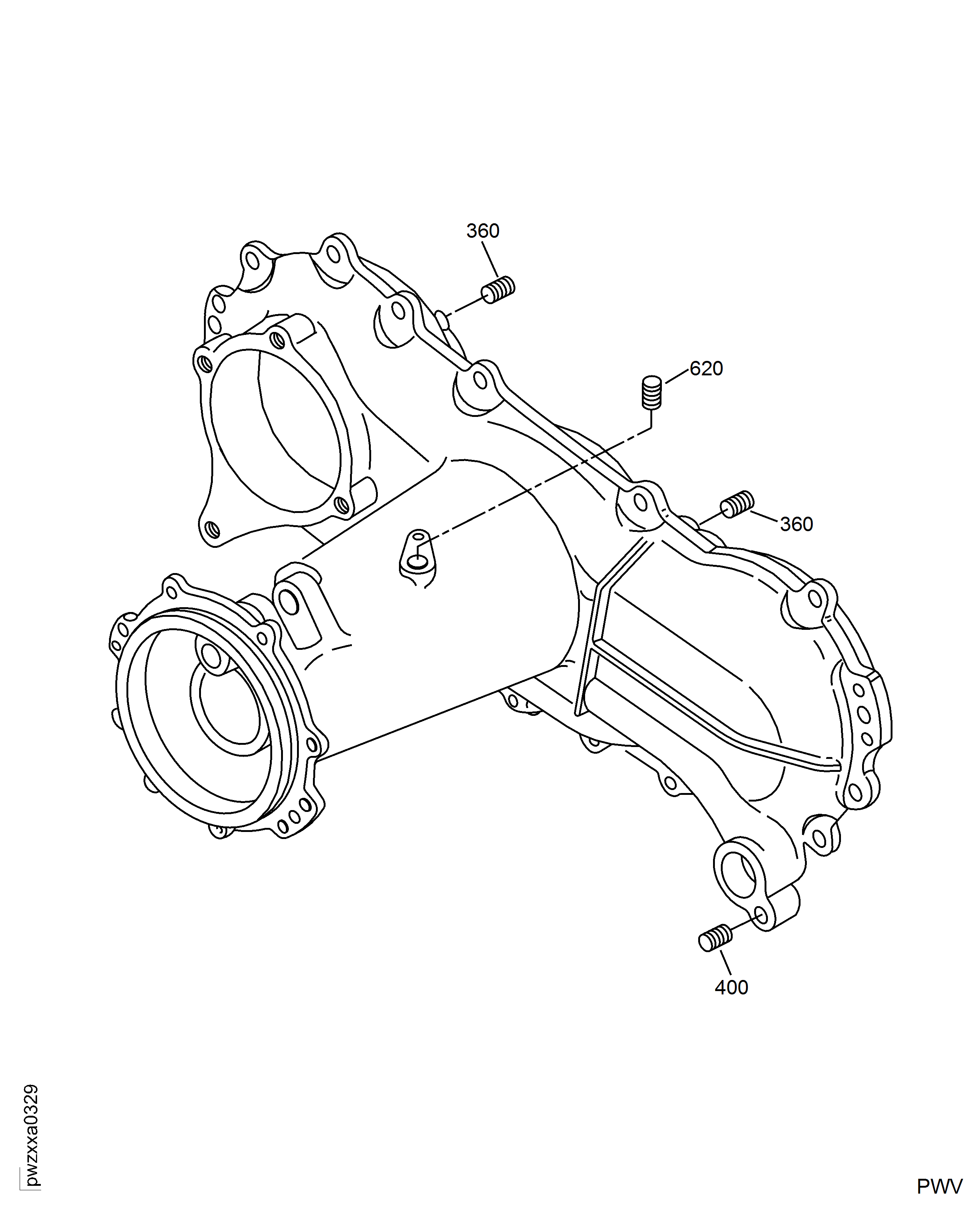

Figure: Replace Damaged or Loose Helicoil Inserts
Replace Damaged or Loose Helicoil Inserts
