TASK 72-60-41-300-013 Angle Gearbox Casing - Nickel Plate The Bearing Support Seat Diameter, Repair-013 (VRS5109)

DMC:V2500-A0-72-60-4101-06A-647A-C|Issue No:003.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-41-300-013 Angle Gearbox Casing - Nickel Plate The Bearing Support Seat Diameter, Repair-013 (VRS5109)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0256

01-300

4B0354

Material of component

PART IDENT

SYMBOL

MATERIAL

Angle Gearbox Casing

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM

NOTE

Consumable materials are given in the SPM

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding MachineLOCALGrinding Machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-41-320-061 Machine the Bearing Support Seat Diameter of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the bearing seat diameter.

      1. The diameter must be between 6.30118 in. to 6.30709 in. (160.050 mm to 160.200 mm) after the removal of the damage.

      2. Remove all the damage and wear. Keep the removal of the material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-41-220-089 Examine the Angle Gearbox Casing

      1. Do the local fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-05-230-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-41-330-063 Nickel Plate the Bearing Seat Diameter of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Mask the areas of the casing not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit machining to the last dimensions.

      3. The plating out of the bearing seat diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 72-60-41-370-004 De-embrittle the Angle Gearbox Casing

      1. Put the casing into the oven at 241 deg F to 260 deg F (116 deg C to 127 deg C) for 60 to 90 minutes.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    5. SUBTASK 72-60-41-220-090 Examine the Angle Gearbox Casing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant colour.

      2. No circumferential cracks are permitted.

      3. No roughness and blisters are permitted.

    6. SUBTASK 72-60-41-320-062 Machine the Bearing Seat Diameter of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the bore diameter.

      1. The dimension of the diameter must be between 6.29921 in. to 6.30079 in. (160.000 mm to 160.040 mm). Clean the edge and chamfer where necessary.

    7. SUBTASK 72-60-41-220-091 Examine the Nickel Plated Area

    1. Refer to Figure and Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a Magnifying glass, 4x. The natural network of crack, emphasized by grinding, is permitted.

    8. SUBTASK 72-60-41-350-072 Record the Repair

      1. Make a mark VRS5109 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001 .

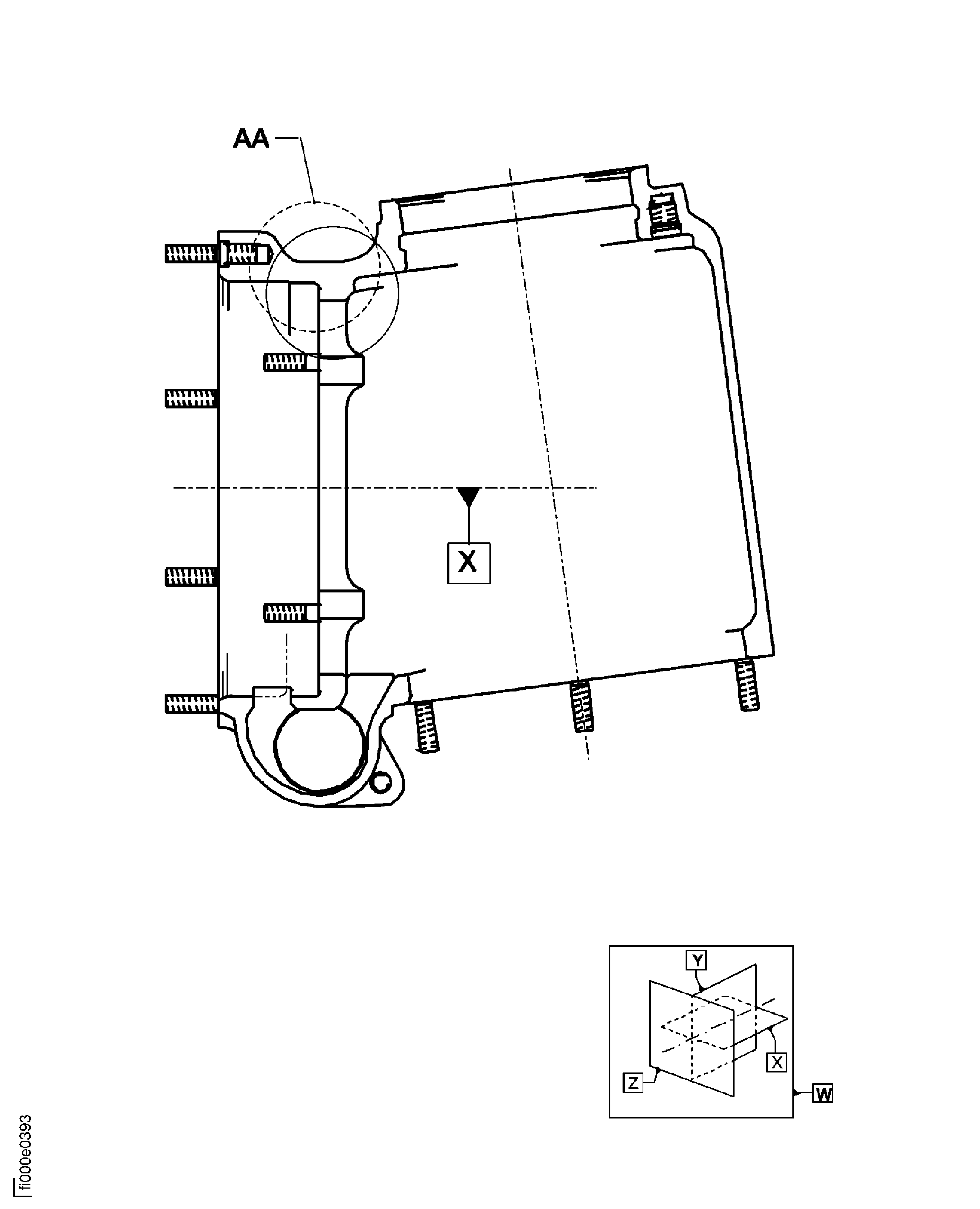

    9. Figure: Nickel plate the bearing support seat diameter

    Nickel plate the bearing support seat diameter

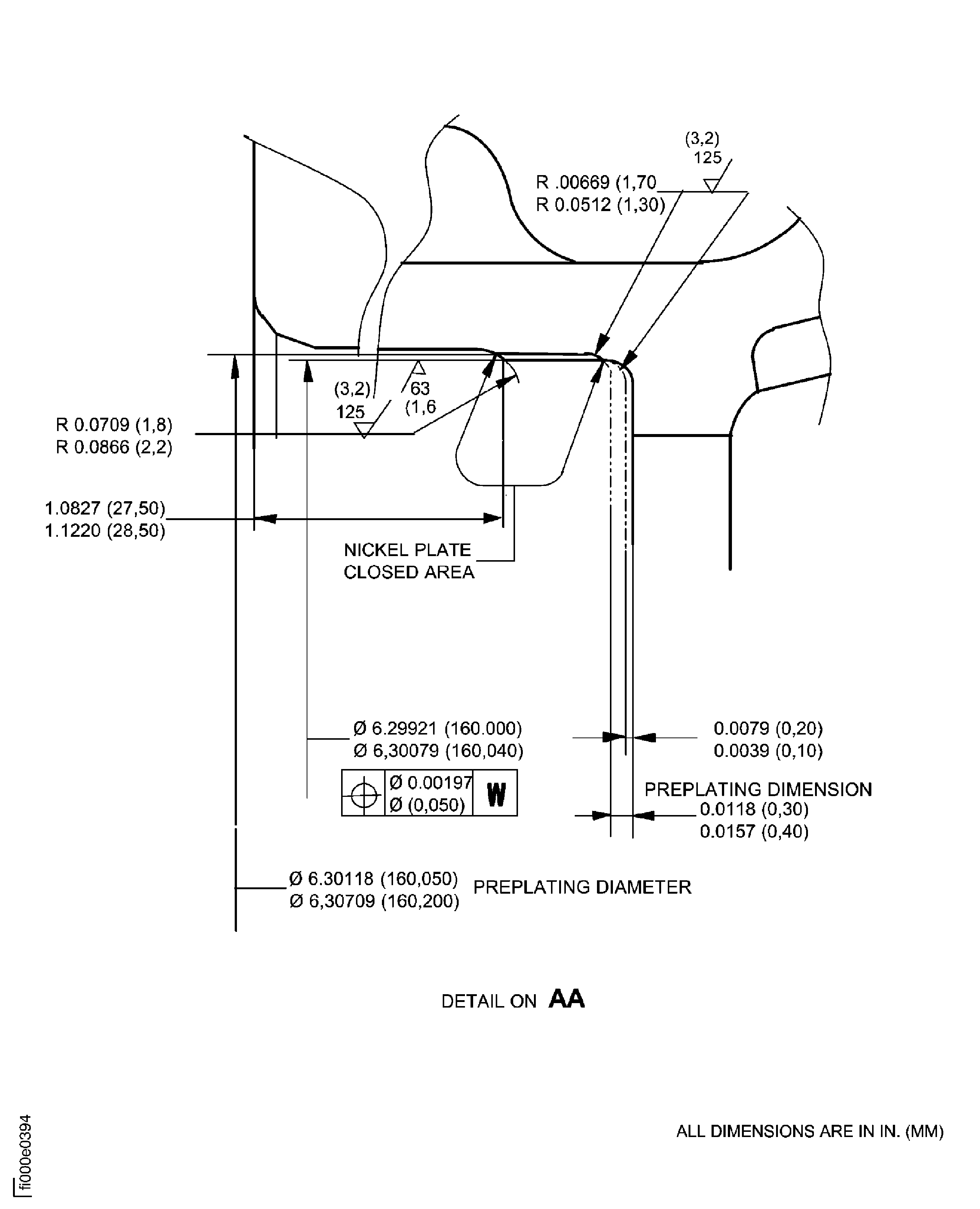

    Figure: Nickel plate the bearing support seat diameter

    Nickel plate the bearing support seat diameter

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added new part number to the effectivity table. (11VF843A)

Change Type:

Corrected the SPM Task number
