TASK 72-60-42-300-040 Replace The Damaged Or Loose Helicoil Inserts In The Radial Gear Support, Repair-040 (VRS5677)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| 3695-4 Break-off tool | LOCAL | 3695-4 Break-off tool | (Helicoil products) | |
| 1227-6 Extracting tool | LOCAL | 1227-6 Extracting tool | (Helicoil products) | |
| 7552-4 Inserting tool | LOCAL | 7552-4 Inserting tool | (Helicoil products) |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Drive the 1227-6 Extracting tool into the insert at approximately a quarter of a coil from the end of the insert.
Apply the 1227-6 Extracting tool into the insert.
Hit the head of the tool lightly to dig the blade into the top of the coil of the insert.
Use a hammer.
Arrange the 1227-6 Extracting tool into the insert.
Bearing down hard on the handle of the tool.
Turn the tool slowly counterclockwise.
Maintain a hard pressure on the handle when the insert backs out.
Complete the removal of the insert.
SUBTASK 72-60-42-350-111 Remove the Insert
Do the touch-up process, if you find the anodic treatment is damaged by insert removal.
Refer to SPM TASK 70-38-02-300-503.
Check the surface.
SUBTASK 72-60-42-330-085 Restore the Damaged Anodic Treatment
Refer to Figure.
Put the new helicoil insert on the tip of the inserting tool.
Put the insert on the tool.
Put the tool with the new helicoil insert into the threaded hole.
Put the tool with the insert.
Install the new helicoil insert into the hole.
Turn the handle clockwise.
Install the helicoil 1 to 1.5 pitch below surface.
Install the insert into the hole.
Break the insert tang off at notch.
Use a tang 3695-4 Break-off tool.
Remove broken tangs from blind holes with a magnetized rod.
Break the tangs.
SUBTASK 72-60-42-350-112 Install the New Insert
Do the touch-up process, if you find the anodic treatment is damaged by insert installation.
Refer to the SPM TASK 70-38-02-300-503.
Check the surface.
SUBTASK 72-60-42-330-086 Restore the Damaged Anodic Treatment
Refer to SPM TASK 70-23-01-230-501.
Do a crack test on the repaired area.
SUBTASK 72-60-42-230-069 Crack Test the Repaired Area
Refer to SPM TASK 70-35-08-300-501.
Do an inspection of the new helicoil insert.
SUBTASK 72-60-42-220-104 Inspect the Insert

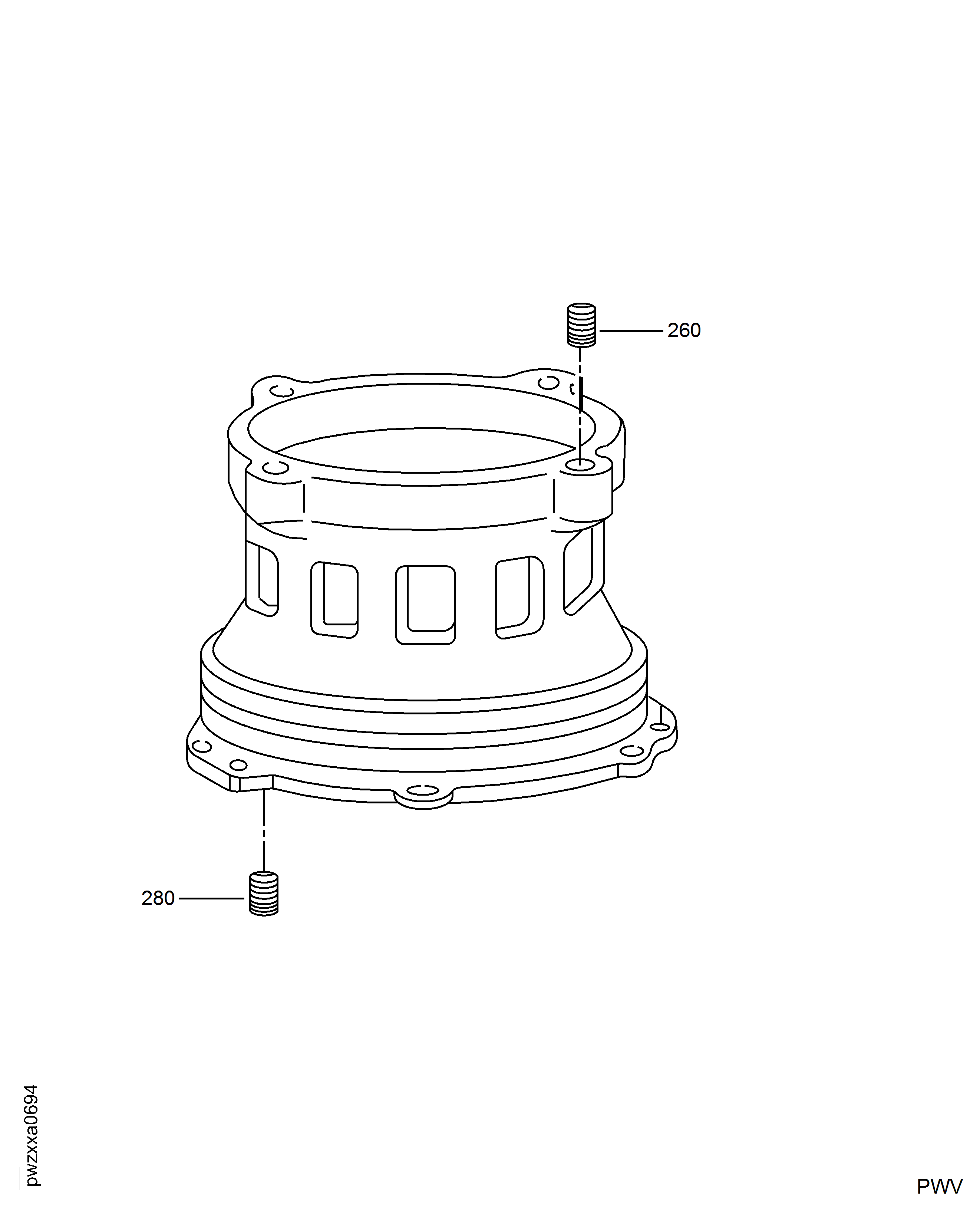

Figure: Replace Damaged Or Loose Helicoil Inserts
Replace Damaged Or Loose Helicoil Inserts
