TASK 73-11-49-300-006 Fuel Tubes - Related Parts - Blend The Damaged Surface Of The Seal Housing, Repair-006 (VRS1635)

DMC:V2500-A0-73-11-4900-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-11-49-300-006 Fuel Tubes - Related Parts - Blend The Damaged Surface Of The Seal Housing, Repair-006 (VRS1635)

Effectivity

FIG/ITEM

PART NO.

02-485

5W8201

03-085

5W8204

03-485

5W8201

26-085

5W8201

Material of Component

DESCRIPTION

RR SYMBOL

MATERIAL

Seal housing

3Al-2.5V titanium

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-11-49-110-058 Clean the Seal Housing (02-485, 03-085, 03-485 and 26-085)

    1. Clean the seal housing. Refer to the SPM TASK 70-11-26-300-503.

    2. SUBTASK 73-11-49-350-053 Blend the Damaged Surface of the Seal Housing (02-485, 03-085, 03-485 and 26-085)

      1. Blend the damaged surface. Refer to SPM TASK 70-35-03-300-501.

      1. If the damage can not be removed in accordance with blend limit, Figure and Figure, reject the seal housing.

    2. Examine the repaired seal housing. Refer to Inspection-000 TASK 73-11-49-200-400.

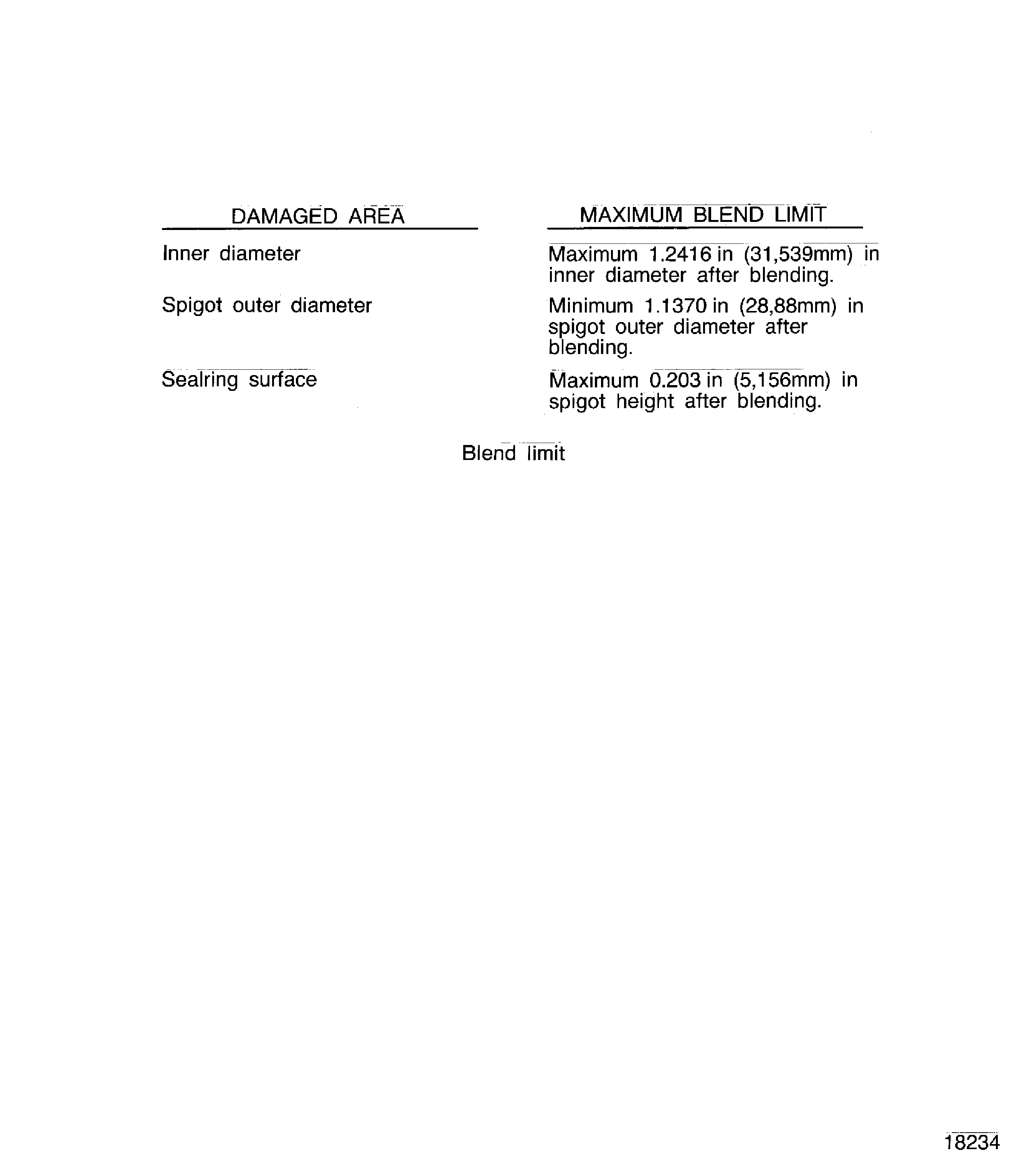

    3. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Repair Details and Dimensions
