TASK 73-11-49-300-004 Control Fuel Tubes - Blend Repair Surface Damage, Repair-004 (VRS1630)

DMC:V2500-A0-73-11-4900-06A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-11-49-300-004 Control Fuel Tubes - Blend Repair Surface Damage, Repair-004 (VRS1630)

Effectivity

FIG/ITEM

PART NO.

02-100

2A0616

03-100

2A0649

03-500

2A0650

05-100

2A0615

07-100

2A1417

07-500

2A0618

Material of component

PART IDENT

SYMBOL

MATERIAL

Fuel tubes

3Al-2.5V titanium

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-11-49-110-056 Clean the Fuel Tubes (02-100, 03-100, 03-500, 05-100, 07-100 and 07-500)

      1. Clean the fuel tubes.

      1. Refer to the Cleaning-000 TASK 73-11-49-100-100.

    2. SUBTASK 73-11-49-350-051 Blend the Damaged Surface of the Fuel Tubes (02-100, 03-100, 03-500, 05- 100, 07-100 and 07-500)

      1. Blend the damaged surface.

      1. Refer to the SPM TASK 70-35-03-300-501.

      2. If the damage can not be removed in accordance with blend limit, Refer to Figure and Figure, reject the fuel tube.

      2. Visually examine the repaired fuel tubes.

      1. Use 8X magnifying glass.

    3. SUBTASK 73-11-49-790-053 Do a Leak Test on the Fuel Tube Assembly

      1. Do a leak test on the tube.

      1. Refer to Testing-000 TASK 73-11-49-700-100.

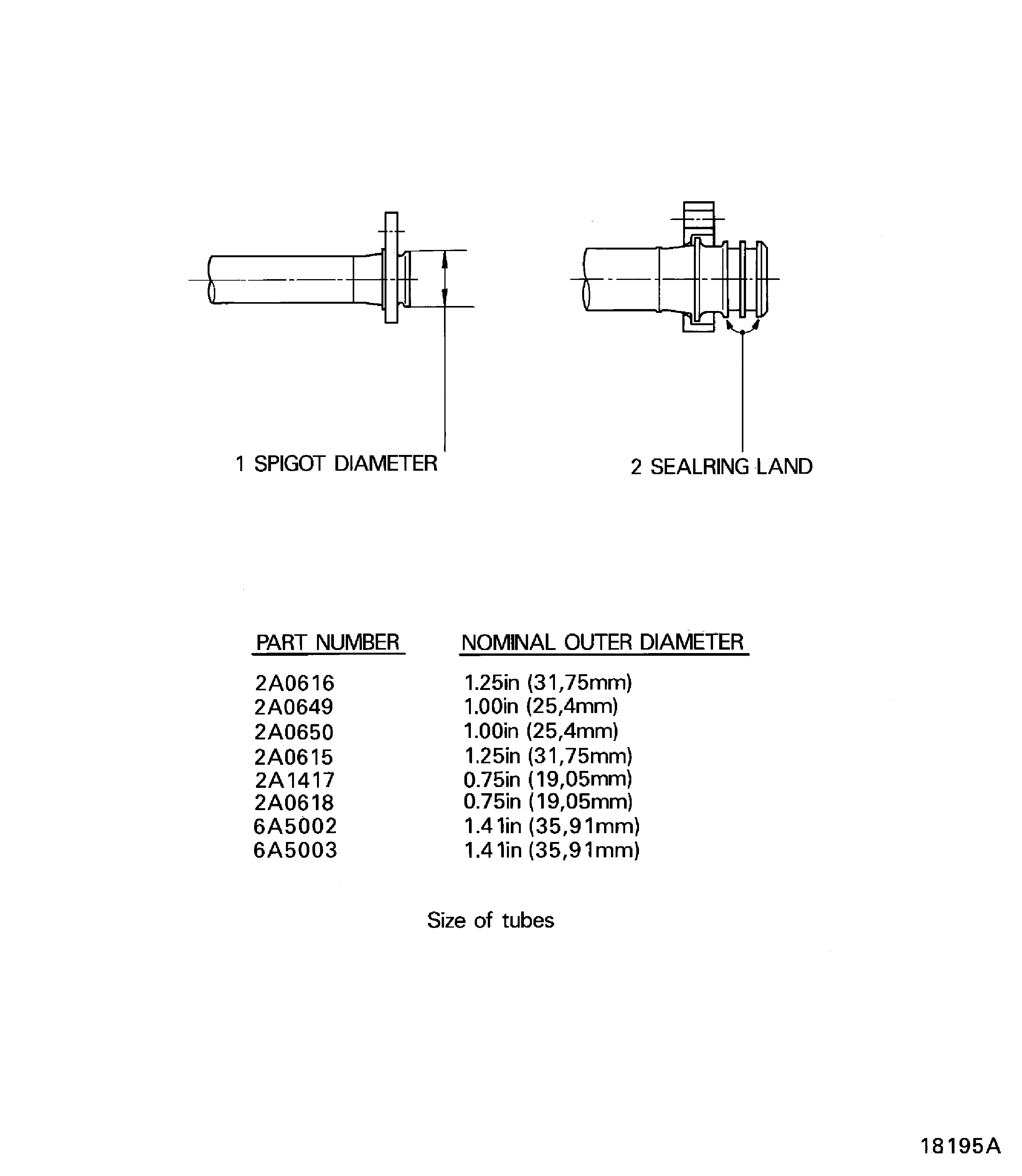

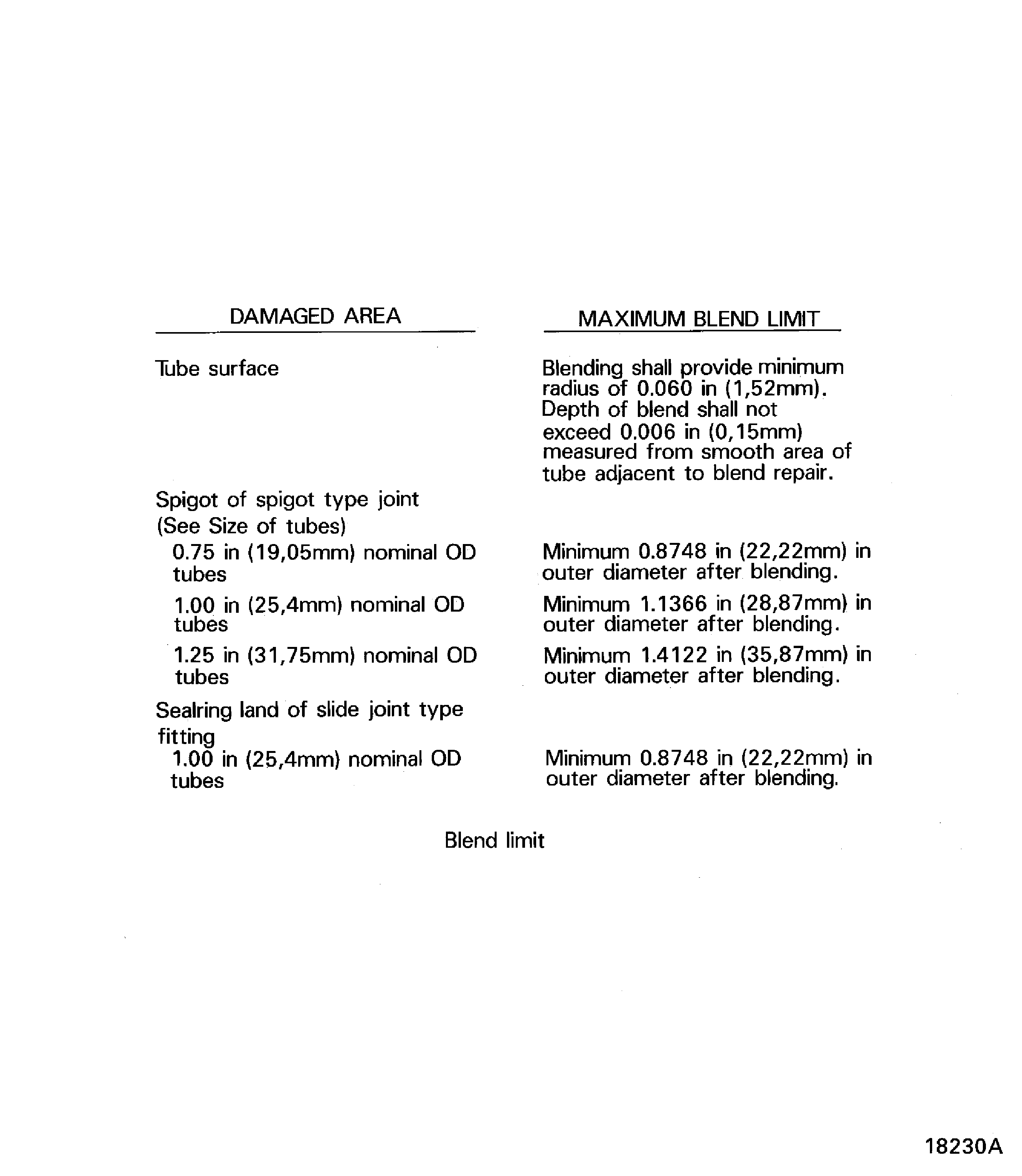

    4. Figure: Blend Limits and Sizes of the Fuel Tubes

    Blend Limits and Sizes of the Fuel Tubes

    Blend Limits and Sizes of the Fuel Tubes

Requirements After Job Completion

Follow-On Conditions

NONE
