TASK 73-13-41-840-001 Fuel Nozzle And Support Assembly - Related Parts - Revised Air Deflector Bracket, Rework-001 - SBE 73-0008

DMC:V2500-A0-73-13-4100-00A-933A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-13-41-840-001 Fuel Nozzle And Support Assembly - Related Parts - Revised Air Deflector Bracket, Rework-001 - SBE 73-0008

Effectivity

FIG/ITEM

PART NO.

01-480

6A3996

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard hand toolsLOCALStandard hand tools

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-13-41-350-055 Rework the Air Reflector Bracket

    1. Refer to Figure.

      2. Mark out the area to be removed

      1. Refer to Figure.

      3. Remove the material to give the dimension 1.055 to 1.095 in. (26.8 to 27.8 mm) and a chamfer of 38 to 42 degrees.

      4. Remove any sharp edges or burrs

    2. SUBTASK 73-13-41-230-052 Examine the Bracket for Cracks

      1. Do a penetrant crack test.

      1. Refer to SPM TASK 70-23-01-230-501.

    3. SUBTASK 73-13-41-350-056 Identify the Rework Bracket with the New Part Number

      1. Vibration peen the new part number adjacent to the assembly part number.

      1. Refer to SPM TASK 70-09-00-400-501.

        NUMBER BEFORE: 6A3996

        NEW NUMBER: 6A4115

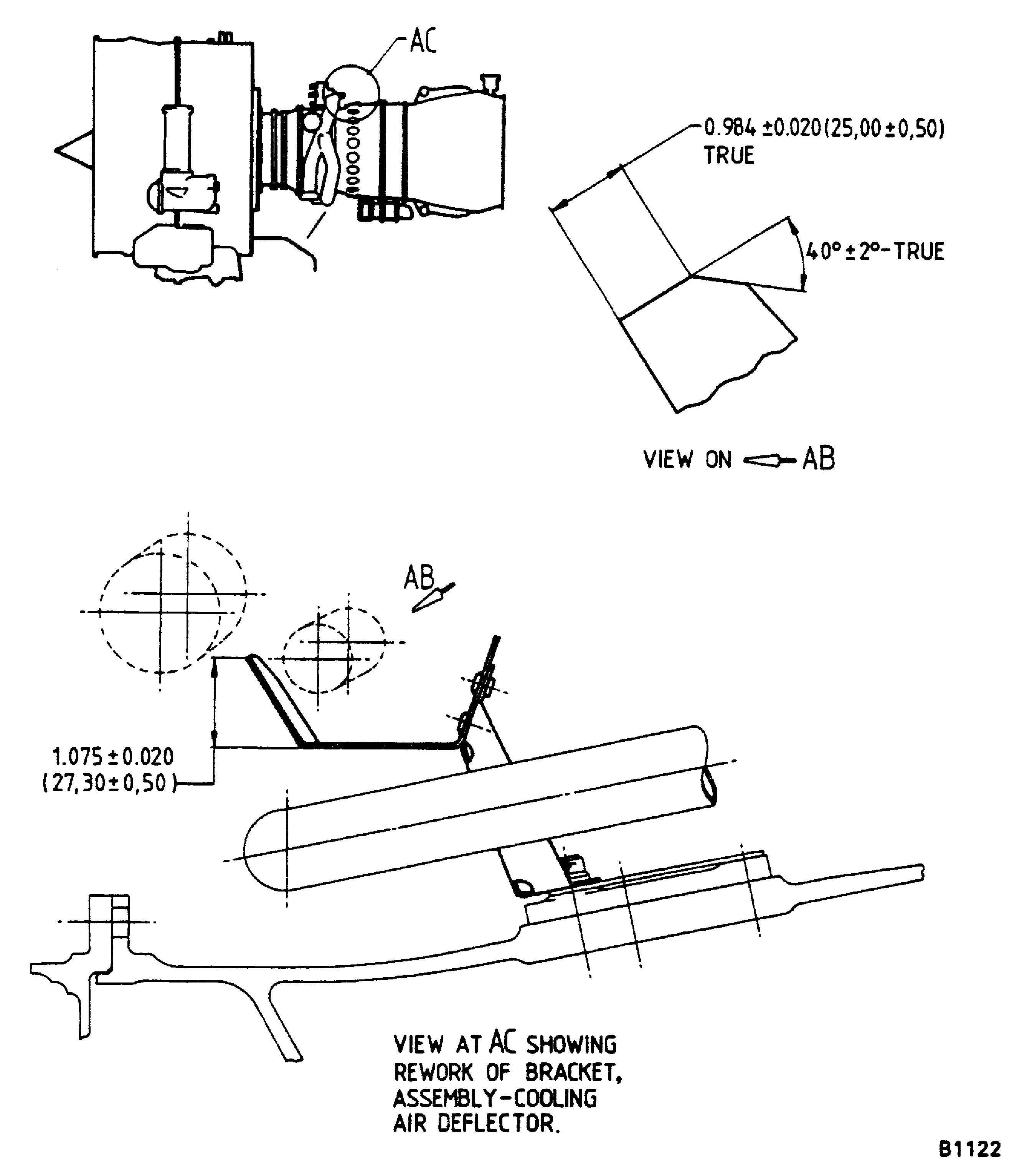

    4. Figure: Rework the Air Deflector Bracket

    Rework the Air Deflector Bracket

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Standard hand tools
Tool Name:Standard hand tools
