TASK 73-13-41-300-004 Fuel Nozzle And Support Assembly - Repair The Fuel Inlet Fitting Conical Seat, Repair-004 (VRS3257)

DMC:V2500-A0-73-13-4100-01A-659A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-13-41-300-004 Fuel Nozzle And Support Assembly - Repair The Fuel Inlet Fitting Conical Seat, Repair-004 (VRS3257)

Effectivity

FIG/ITEM

PART NO.

01-020

2A0994

01-020

2A1637

01-020

2A2250

01-020

2A3448

01-020

2A3453

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Fuel nozzle and support assembly

Corrosion and heat resistant alloy

General

Price and availability - Refer to IAE.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16182 Machining fixture0AM53IAE 1P16182 1

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-13-41-420-051 Install the Fuel Nozzle Support Assembly into the Machining Fixture

    1. Refer to Figure.

    2. Hold the support assembly with the shroud end down and away from the slot in the IAE 1P16182 Machining fixture.

    3. Move the support into the fixture slot.

    4. Locate the shroud on the 1.625 in. (41.275 mm) diameter and the adjacent flange on the fixture face.

    5. Set the support assembly into position with the three screws.

    2. SUBTASK 73-13-41-350-057 Repair the Conical Seat of the Fuel Inlet Fitting

    1. Refer to Figure.

    2. CAUTION

      DO NOT PERMIT ANY METAL PARTICLES THAT YOU REMOVED BY MACHINING TO ENTER THE FUEL NOZZLE INLET.

      Machine the conical seat to the dimensions given in the figure.

    3. SUBTASK 73-13-41-350-058 Remove the Fuel Nozzle Support Assembly from the Machining Fixture

    1. Remove the support assembly from the machining fixture.

      2. Backflush the support assembly

      1. Refer to Cleaning-004 TASK 73-13-41-100-204

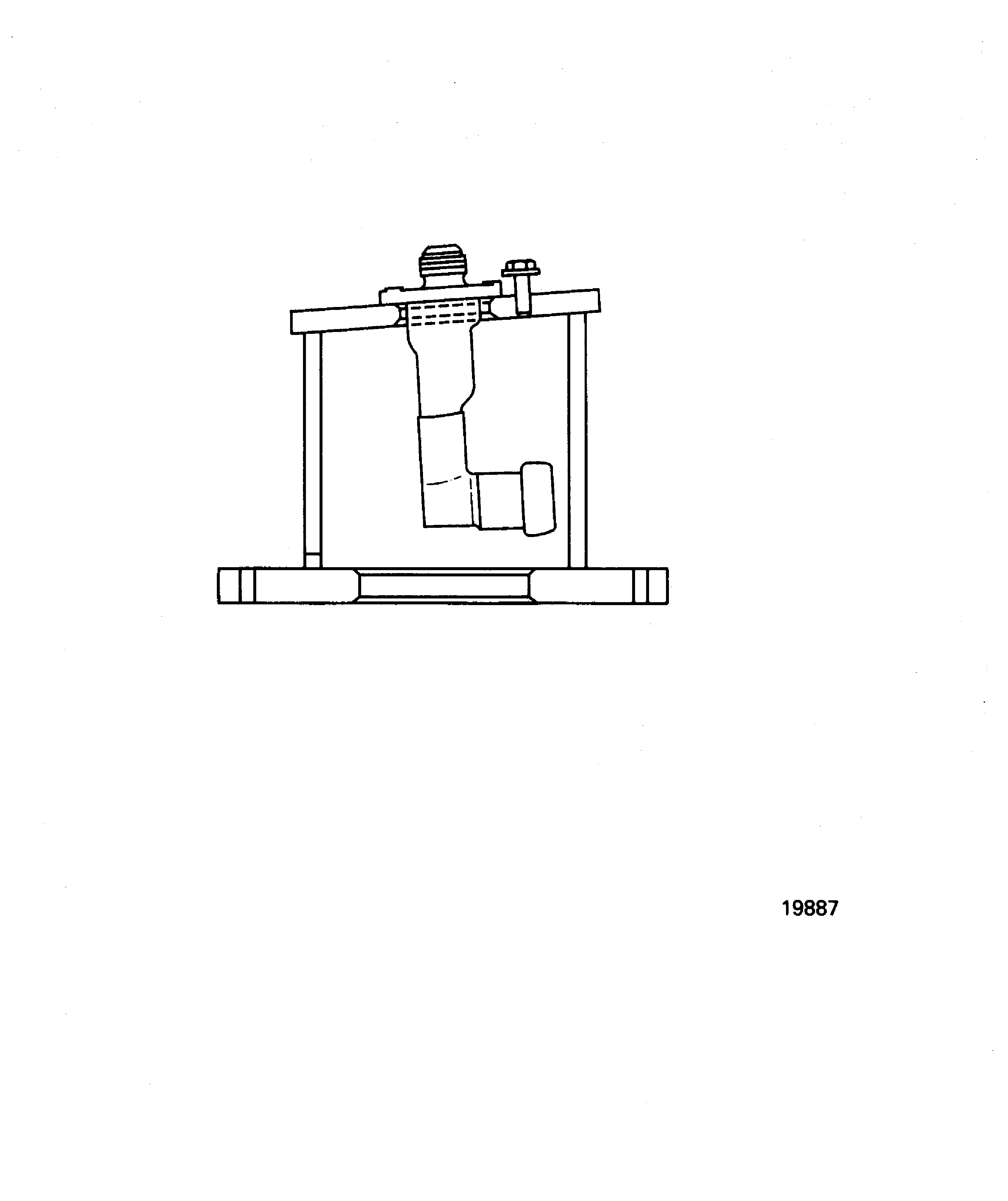

    4. Figure: Install the fuel nozzle support assembly into Machining Fixture, IAE 1P16182

    Install the fuel nozzle support assembly into Machining Fixture, IAE 1P16182

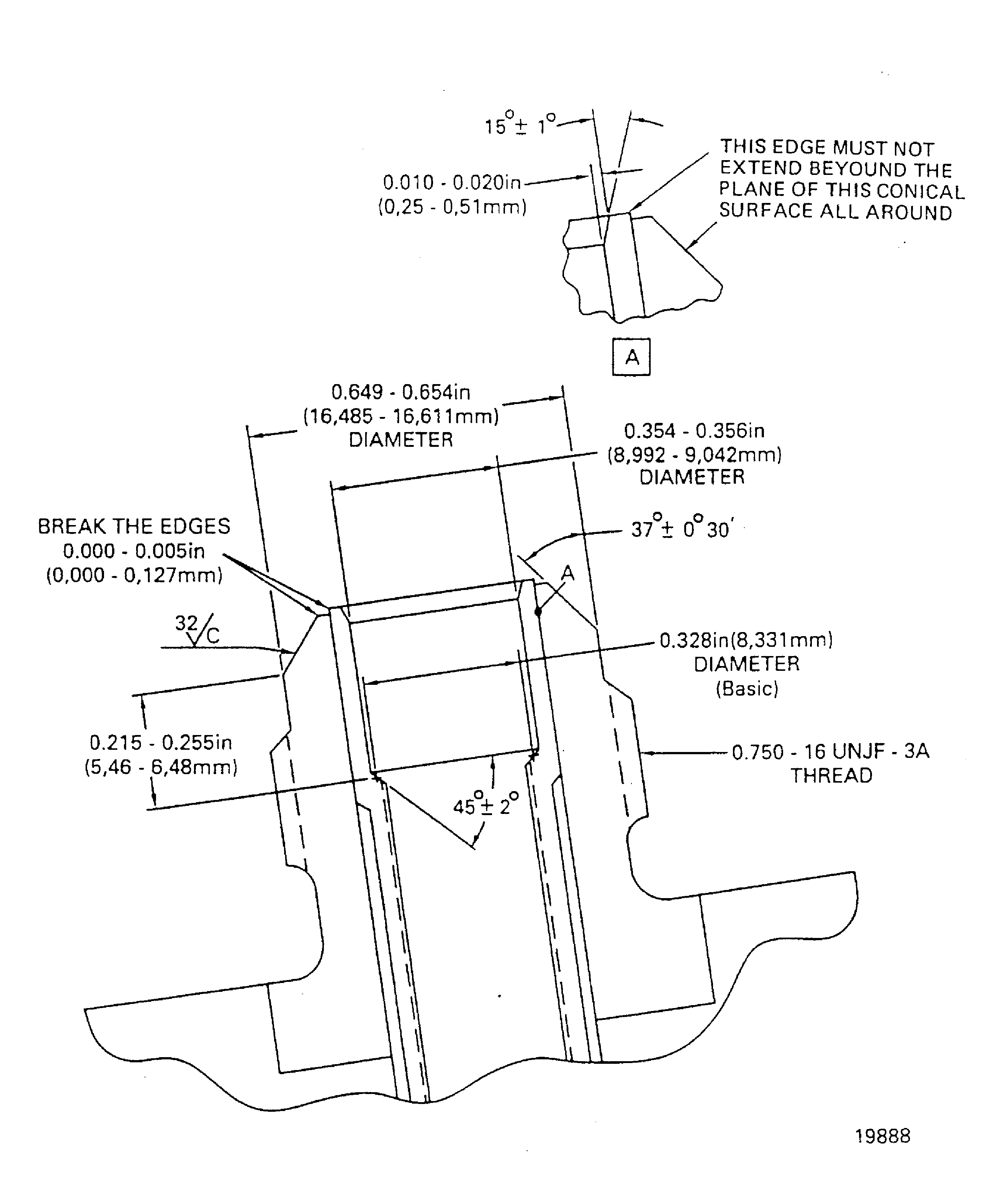

    Figure: Repair the conical seat of the fuel inlet fitting

    Repair the conical seat of the fuel inlet fitting
